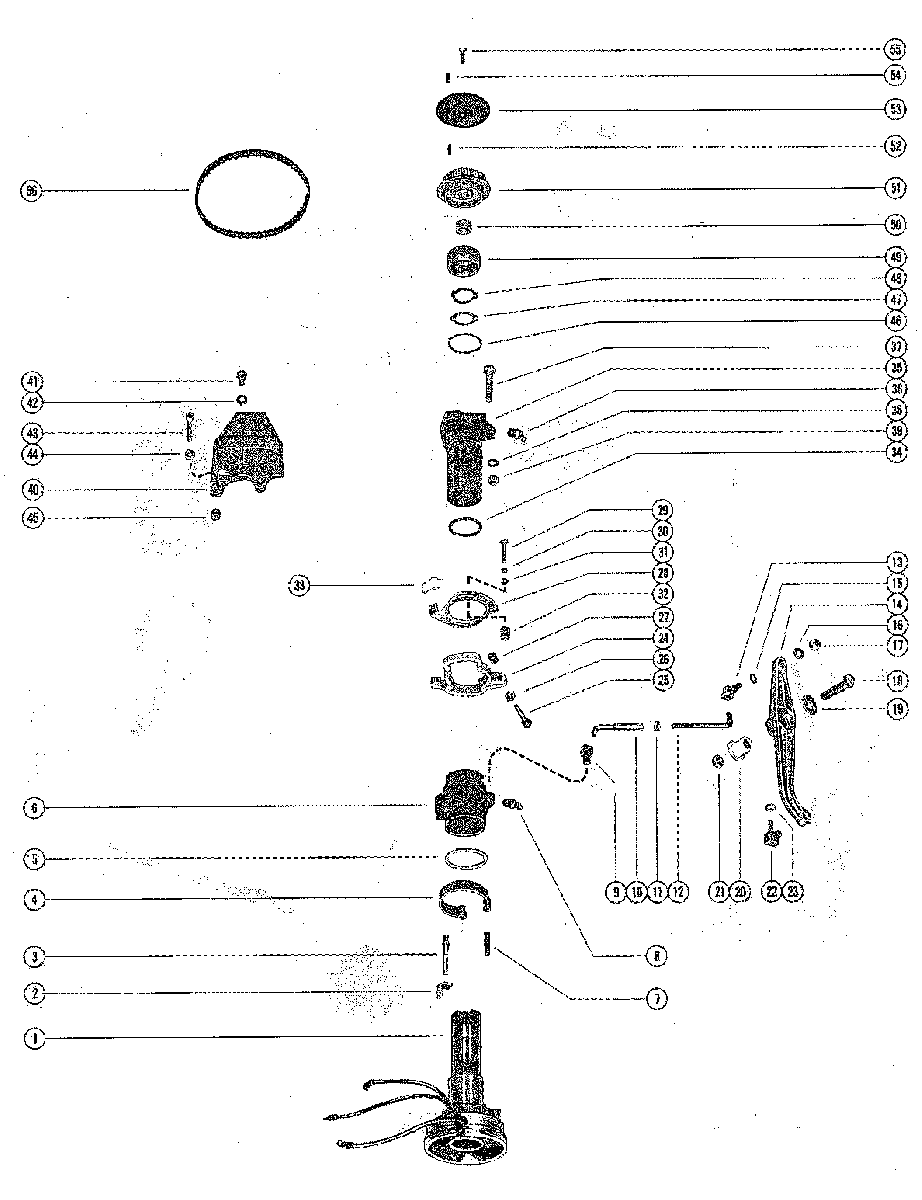

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
    SERIAL 00000000-02991033
    HOUSING ASSEMBLY, DISTRIBUTOR
    SERIAL 00000000-02991033
  • 1
    337-4479 HOUSING, DISTRIBUTOR
    SERIAL 03051040-03052380
    HOUSING, DISTRIBUTOR
    SERIAL 03051040-03052380
  • 2
    32197 STOP, SPARK ADVANCE-DISTRIBUTOR HOUSING
    STOP, SPARK ADVANCE-DISTRIBUTOR HOUSING
  • 3
    17-27962 PIN, ANCHOR SPRING-DISTRIBUTOR HOUSING
    PIN, ANCHOR SPRING-DISTRIBUTOR HOUSING
  • 4
    24-27944 SPRING, HORSESHOE -DISTRIBUTOR HOUSING
    SPRING, HORSESHOE -DISTRIBUTOR HOUSING
  • 5
    12-53540 WASHER, ECONOMIZER COLLAR-DISTRIBUTOR HOUSING
    WASHER, ECONOMIZER COLLAR-DISTRIBUTOR HOUSING
  • 6
    55804A1 ECONOMIZER COLLAR ASSEMBLY
    SERIAL 00000000-02670574
    ECONOMIZER COLLAR ASSEMBLY
    SERIAL 00000000-02670574
  • 6
    55804A1 ECONOMIZER COLLAR ASSEMBLY
    SERIAL 02783253-09999999
    ECONOMIZER COLLAR ASSEMBLY
    SERIAL 02783253-09999999
  • 7
    17-27961 PIN, ECONOMIZER COLLAR-SPRING RETAINER
    PIN, ECONOMIZER COLLAR-SPRING RETAINER
  • 8
    22-25094 FITTING, GREASE-ECONOMIZER COLLAR
    FITTING, GREASE-ECONOMIZER COLLAR
  • 9
    27947 SWIVEL, LINKAGE-ECONOMIZER COLLAR
    SWIVEL, LINKAGE-ECONOMIZER COLLAR
  • 10
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    SWIVEL AND LINK ROD ASSEMBLY
  • 11
    11-25168 NUT, UPPER LINK ROD ADJUSTING
    NUT, UPPER LINK ROD ADJUSTING
  • 12
    37588 ROD, LINK-UPPER
    ROD, LINK-UPPER
  • 13
    27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 14
    48562 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 15
    13-25806 WASHER, WAVE-THROTTLE CONTROL LEVER SWIVEL
    WASHER, WAVE-THROTTLE CONTROL LEVER SWIVEL
  • 16
    12-29245 WASHER, THROTTLE CONTROL LEVER SWIVEL
    WASHER, THROTTLE CONTROL LEVER SWIVEL
  • 17
    11-8267089 NUT, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    NUT, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 18
    10-31830 SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")
    SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")
  • 19
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 20
    23-45818 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 21
    11-8M0042636 NUT, THROTTLE CONTROL LEVER SCREW
    NUT, THROTTLE CONTROL LEVER SCREW
  • 22
    37587 SWIVEL, LOWER-THROTTLE CONTROL LEVER TO THROTTLE CABLE
    SWIVEL, LOWER-THROTTLE CONTROL LEVER TO THROTTLE CABLE
  • 23
    11-8267089 NUT, THROTTLE CABLE TO LOWER SWIVEL
    NUT, THROTTLE CABLE TO LOWER SWIVEL
  • 24
    48692 COLLAR, THROTTLE ACTUATOR
    COLLAR, THROTTLE ACTUATOR
  • 25
    10-48675 SCREW, ADJUSTING-ACTUATOR COLLAR (1 1/2")
    SERIAL 00000000-03148653
    SCREW, ADJUSTING-ACTUATOR COLLAR (1 1/2")
    SERIAL 00000000-03148653
  • 25
    10-61658 SCREW, ADJUSTING-ACTUATOR COLLAR (1 3/4")
    SERIAL 03186263-09999999
    SCREW, ADJUSTING-ACTUATOR COLLAR (1 3/4")
    SERIAL 03186263-09999999
  • 26
    11-20890 NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
    NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
  • 27
    52023 CAP, NYLON-THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
    CAP, NYLON-THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
  • 28
    48671 PLATE, THROTTLE ACTUATOR
    PLATE, THROTTLE ACTUATOR
  • 29
    10-37892 SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
    SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
  • 30
    12-847883 WASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
    WASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
  • 31
    13-26996 LOCKWASH, THROTTLE ACTUATOR PLATE FASTENING SCREW
    LOCKWASH, THROTTLE ACTUATOR PLATE FASTENING SCREW
  • 32
    23-48674 SPACER, THROTTLE ACTUATOR PLATE SCREW
    SPACER, THROTTLE ACTUATOR PLATE SCREW
  • 33
    54239 CAM, THROTTLE ACTUATOR PLATE
    CAM, THROTTLE ACTUATOR PLATE
  • 34
    12-46246 WASHER, ADAPTOR-DISTRIBUTOR HOUSING
    WASHER, ADAPTOR-DISTRIBUTOR HOUSING
  • 35
    66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
    ADAPTOR ASSEMBLY, DISTRIBUTOR
  • 36
    22-25094 FITTING, GREASE-DISTRIBUTOR ADAPTOR
    FITTING, GREASE-DISTRIBUTOR ADAPTOR
  • 37
    10-78841 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
    SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
  • 38
    12-20084 WASHER, DISTRIBUTOR HOUSING SCREW
    WASHER, DISTRIBUTOR HOUSING SCREW
  • 39
    11-22053 NUT, DISTRIBUTOR HOUSING SCREW
    NUT, DISTRIBUTOR HOUSING SCREW
  • 40
    55805 BRACKET, STOP
    SERIAL 00000000-02670574
    BRACKET, STOP
    SERIAL 00000000-02670574
  • 40
    55805 BRACKET, STOP
    SERIAL 02783253-09999999
    BRACKET, STOP
    SERIAL 02783253-09999999
  • 41
    10-28636 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")
    SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")
  • 42
    12-20533 WASHER, STOP BRACKET FASTENING SCREW
    WASHER, STOP BRACKET FASTENING SCREW
  • 43
    10-24228 SCREW, STOP BRACKET ADJUSTING (1 7/8")
    SCREW, STOP BRACKET ADJUSTING (1 7/8")
  • 44
    11-20890 NUT, STOP BRACKET ADJUSTING SCREWS
    NUT, STOP BRACKET ADJUSTING SCREWS
  • 45
    52023 CAP, NYLON-STOP BRACKET ADJUSTING SCREWS
    CAP, NYLON-STOP BRACKET ADJUSTING SCREWS
  • 46
    12-27939 WASHER, DISTRIBUTOR HOUSING
    WASHER, DISTRIBUTOR HOUSING
  • 47
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 48
    13-27959 WASHER, WAVE-DISTRIBUTOR BALL BEARING TENSION
    WASHER, WAVE-DISTRIBUTOR BALL BEARING TENSION
  • 49
    54567 CAP, DISTRIBUTOR HOUSING
    CAP, DISTRIBUTOR HOUSING
  • 50
    23-47250 SPACER, DRIVE PULLEY
    SPACER, DRIVE PULLEY
  • 51
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 52
    17-29908 PIN, ROLL-FLANGE LOCATING
    PIN, ROLL-FLANGE LOCATING
  • 53
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 54
    28-29910 KEY, DISTRIBUTOR DRIVER
    KEY, DISTRIBUTOR DRIVER
  • 55
    27-58534 SCREW, PULLEY CLAMPING SCREW
    SCREW, PULLEY CLAMPING SCREW
  • 56
    20140 BELT, TIMING
    BELT, TIMING
