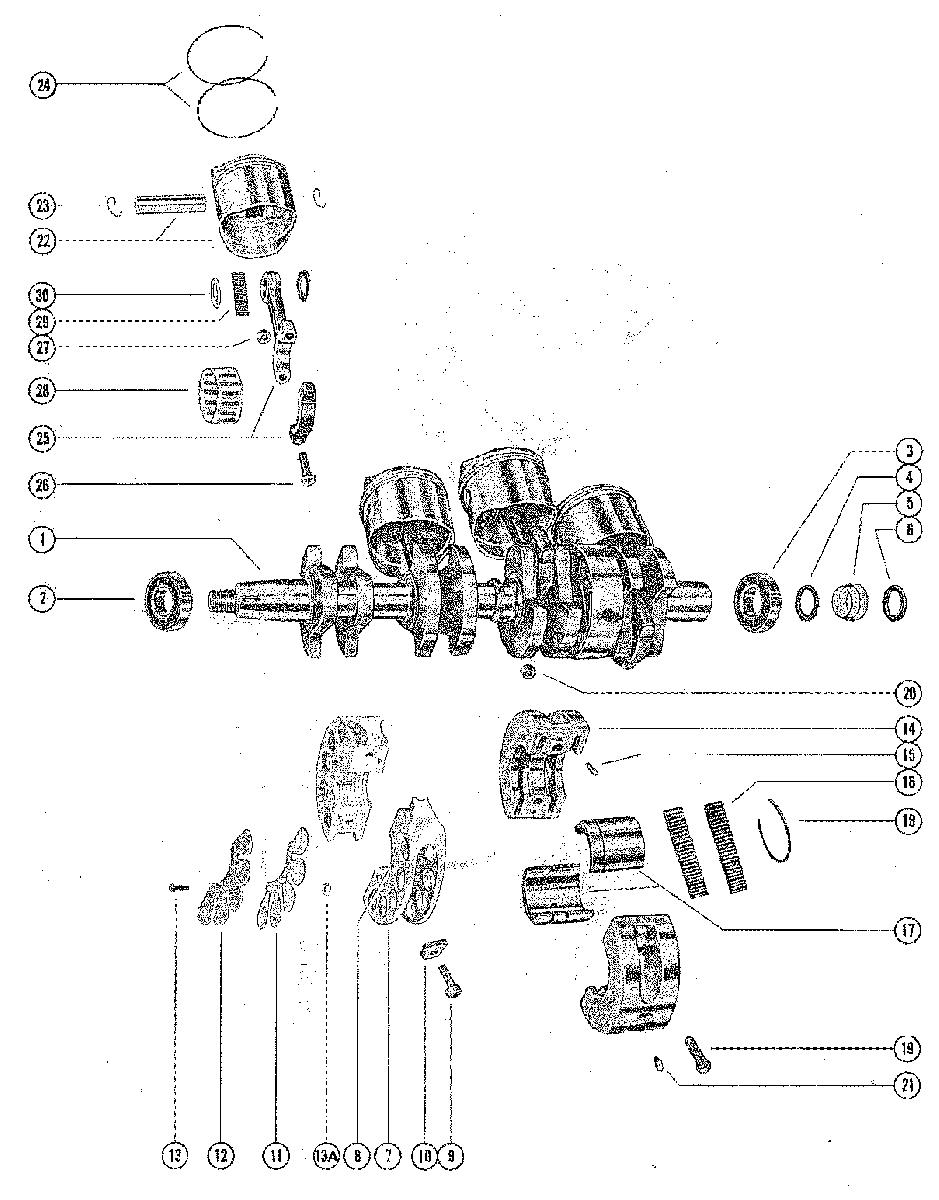

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 800 (4 CYL.), 80 (4 CYL.) 2559001 THRU 3493912

  • №
    Артикул
    Название
  • 1
    440-9074A2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-62567T BEARING, BALL-UPPER
    BEARING, BALL-UPPER
  • 3
    30-63742T BEARING, BALL-LOWER
    BEARING, BALL-LOWER
  • 4
    25-30613 "O"RING, DRIVE SHAFT SPLINE
    SERIAL 00000000-03059820
    "O"RING, DRIVE SHAFT SPLINE
    SERIAL 00000000-03059820
  • 5
    54196A6 CARRIER ASSEMBLY, "O"RING
    SERIAL 03144219-09999999
    CARRIER ASSEMBLY, "O"RING
    SERIAL 03144219-09999999
  • 6
    25-35126 "O" RING, CARRIER
    SERIAL 03144219-09999999
    "O" RING, CARRIER
    SERIAL 03144219-09999999
  • 7
    540-7238A2 MAIN BEARING ASSEMBLY (VALVE TYPE)
    SERIAL 00000000-02670574
    MAIN BEARING ASSEMBLY (VALVE TYPE)
    SERIAL 00000000-02670574
  • 8
    17-20032 DOWEL PIN, MAIN BEARING
    SERIAL 00000000-02670574
    DOWEL PIN, MAIN BEARING
    SERIAL 00000000-02670574
  • 9
    10-45775 SCREW, MAIN BEARING CLAMPING
    SERIAL 00000000-02670574
    SCREW, MAIN BEARING CLAMPING
    SERIAL 00000000-02670574
  • 10
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    SERIAL 00000000-02670574
    NUT, MAIN BEARING CLAMPING SCREW
    SERIAL 00000000-02670574
  • 11
    34-56007A1 REED SET, MATCHED-MAIN BEARING
    SERIAL 00000000-02670574
    REED SET, MATCHED-MAIN BEARING
    SERIAL 00000000-02670574
  • 12
    34-48081 REED STOP, MAIN BEARING REED VALVES
    SERIAL 00000000-02670574
    REED STOP, MAIN BEARING REED VALVES
    SERIAL 00000000-02670574
  • 13
    10-20597 SCREW, REED STOP MOUNTING
    SERIAL 00000000-02670574
    SCREW, REED STOP MOUNTING
    SERIAL 00000000-02670574
  • 7
    540-5266T5 MAIN BEARING ASSEMBLY (VALVE TYPE)
    SERIAL 02783253-09999999
    MAIN BEARING ASSEMBLY (VALVE TYPE)
    SERIAL 02783253-09999999
  • 8
    17-20032 DOWEL PIN, MAIN BEARING
    SERIAL 02783253-09999999
    DOWEL PIN, MAIN BEARING
    SERIAL 02783253-09999999
  • 9
    10-45775 SCREW, MAIN BEARING CLAMPING
    SERIAL 02783253-09999999
    SCREW, MAIN BEARING CLAMPING
    SERIAL 02783253-09999999
  • 10
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    SERIAL 02783253-09999999
    NUT, MAIN BEARING CLAMPING SCREW
    SERIAL 02783253-09999999
  • 11
    34-56007A1 REED SET, MATCHED-MAIN BEARING
    SERIAL 02783253-09999999
    REED SET, MATCHED-MAIN BEARING
    SERIAL 02783253-09999999
  • 12
    34-56008 REED STOP, MAIN BEARING REED VALVES
    SERIAL 02783253-09999999
    REED STOP, MAIN BEARING REED VALVES
    SERIAL 02783253-09999999
  • 13
    10-20055 SCREW, REED STOP MOUNTING
    SERIAL 00000000-03192962
    SCREW, REED STOP MOUNTING
    SERIAL 00000000-03192962
  • 13
    10-62204 SCREW, REED STOP MOUNTING
    SERIAL 02783253-09999999
    SCREW, REED STOP MOUNTING
    SERIAL 02783253-09999999
  • 13A
    11-53153 NUT, REED STOP MOUNTING SCREW
    SERIAL 02783253-09999999
    NUT, REED STOP MOUNTING SCREW
    SERIAL 02783253-09999999
  • 14
    535-3190A2 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 15
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 16
    29-714221 BEARING, NEEDLE
    BEARING, NEEDLE
  • 17
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 18
    53-26933 RING, SNAP-OUTER RACE CLAMPING
    RING, SNAP-OUTER RACE CLAMPING
  • 19
    10-22968 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 20
    11-20184 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 21
    17-47246 DOWEL PIN (STEPPED)
    DOWEL PIN (STEPPED)
  • 22
    774-9137A12 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 23
    53-857196 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 24
    39-78816A12 RING, PISTON
    RING, PISTON
  • 25
    624-8101A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 26
    10-54803 SCREW, CAP TO CONNECTING ROD
    SCREW, CAP TO CONNECTING ROD
  • 27
    11-49091 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 28
    31-62596A1 BEARING ASSEMBLY, CRANKPIN
    BEARING ASSEMBLY, CRANKPIN
  • 29
    29-47270 BEARING, NEEDLE-PISTON PIN
    BEARING, NEEDLE-PISTON PIN
  • 30
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015)
    OVERSIZE PISTON AND RING
    PISTON AND PISTON PIN ASSEMBLY (.015)
    OVERSIZE PISTON AND RING
  • --
    39-78811A12 RING, PISTON (.015)
    OVERSIZE PISTON AND RING
    RING, PISTON (.015)
    OVERSIZE PISTON AND RING
