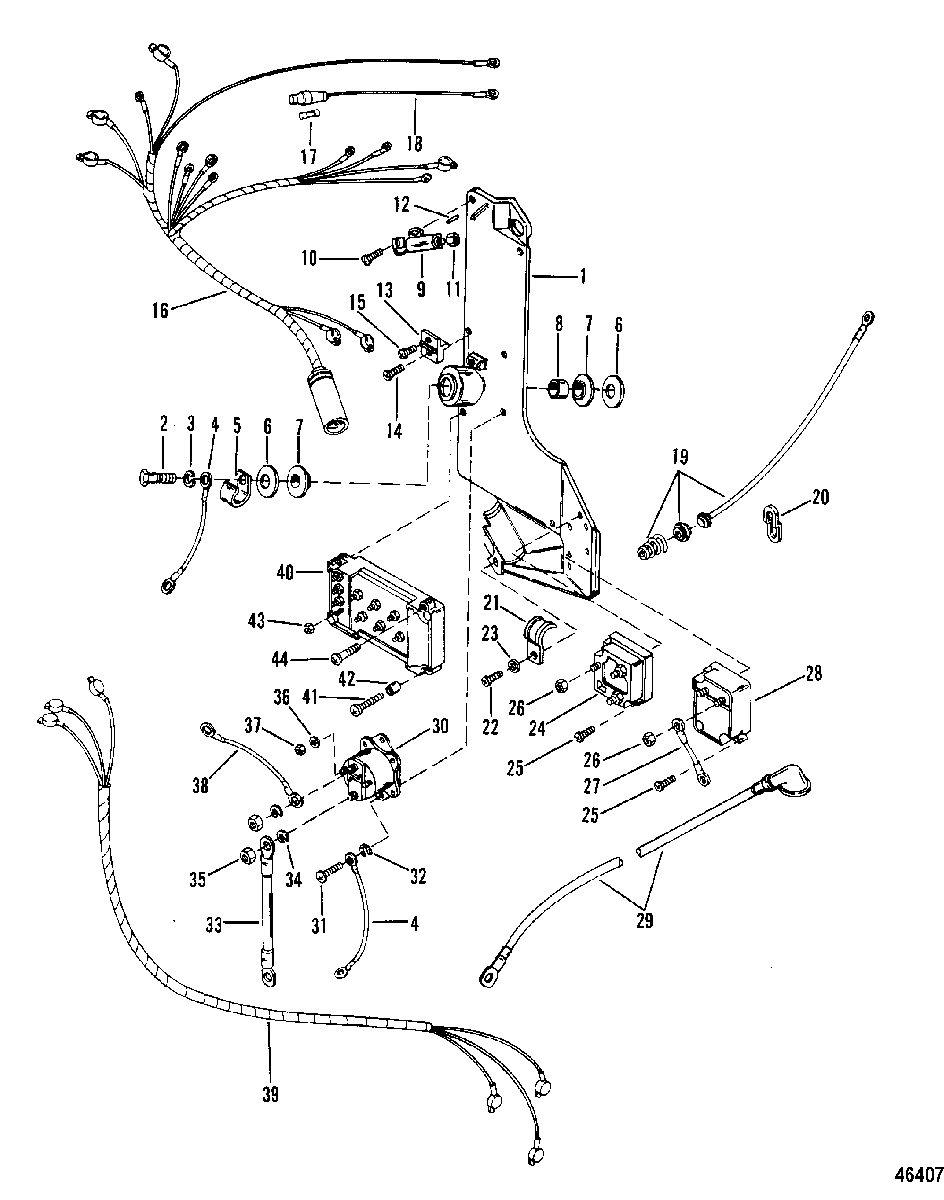

WIRING HARNESS, STARTER SOLENOID AND RECTIFIER для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    91882 PLATE, IGNITION
    PLATE, IGNITION
  • 2
    10-40001140 SCREW, (M8 x 35), IGNITION PLATE
    SCREW, (M8 x 35), IGNITION PLATE
  • 3
    13-26993 LOCKWASHER, (.312), IGNITION PLATE SCREW
    LOCKWASHER, (.312), IGNITION PLATE SCREW
  • 4
    84-65999A2 CABLE ASSEMBLY, Black, GROUND (BLACK)
    CABLE ASSEMBLY, Black, GROUND (BLACK)
  • 5
    54-47483 J CLIP, FUSE HOLDER - PLATE SCREW
    J CLIP, FUSE HOLDER - PLATE SCREW
  • 6
    12-36042 WASHER, IGNITION PLATE SCREW
    WASHER, IGNITION PLATE SCREW
  • 7
    12-67264 WASHER, (Rubber), IGNITION PLATE SCREW (RUBBER)
    WASHER, (Rubber), IGNITION PLATE SCREW (RUBBER)
  • 8
    23-67268 BUSHING, IGNITION PLATE SCREW
    BUSHING, IGNITION PLATE SCREW
  • 9
    87-33386A3 SWITCH ASSEMLBY
    SWITCH ASSEMLBY
  • 10
    10-38055 SCREW, (.190-32 x .62), Mercury switch to ignition plate (5/8")
    SCREW, (.190-32 x .62), Mercury switch to ignition plate (5/8")
  • 11
    11-45076 NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
    NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
  • 12
    17-36242 PIN, Roll, MERCURY SWITCH
    PIN, Roll, MERCURY SWITCH
  • 13
    86-66986 TERMINAL BLOCK, IGNITION PLATE
    TERMINAL BLOCK, IGNITION PLATE
  • 14
    10-69079 SCREW, (#10-16 x .440), TERMINAL BLOCK ATTACHING
    SCREW, (#10-16 x .440), TERMINAL BLOCK ATTACHING
  • 15
    10-37572 SCREW, (.190-32 x .380), LEADS TO TERMINAL BLOCK
    SCREW, (.190-32 x .380), LEADS TO TERMINAL BLOCK
  • 16
    84-92432A2 HARNESS ASSEMBLY, ENGINE
    HARNESS ASSEMBLY, ENGINE
  • 17
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 18
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 19
    78799 SENDER, Temperature (19.50 Inch)
    SENDER, Temperature (19.50 Inch)
  • 20
    89565 COVER, TEMPERATURE SENDER
    COVER, TEMPERATURE SENDER
  • 21
    88751 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 22
    10-28636 SCREW, (.250-20 x .750), CLAMP TO IGNITION PLATE
    SCREW, (.250-20 x .750), CLAMP TO IGNITION PLATE
  • 23
    12-20533 WASHER, CLAMP SCREW
    WASHER, CLAMP SCREW
  • 24
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 25
    10-38055 SCREW, (.190-32 x .62), RECTIFIER AND REGULATOR
    SCREW, (.190-32 x .62), RECTIFIER AND REGULATOR
  • 26
    11-45076 NUT, (#10-32) Brass, RECTIFIER AND REGULATOR TERMINALS
    NUT, (#10-32) Brass, RECTIFIER AND REGULATOR TERMINALS
  • 27
    84-88808A4 WIRE, REGULATOR TO RECTIFIER (RED)
    WIRE, REGULATOR TO RECTIFIER (RED)
  • 27
    84-88809A4 CABLE ASSEMBLY, REGULATOR TO RECTIFIER (YELLOW)
    CABLE ASSEMBLY, REGULATOR TO RECTIFIER (YELLOW)
  • 28
    88825A7 VOLTAGE REGUALTOR
    VOLTAGE REGUALTOR
  • 29
    84-88439A14 CABLE ASSEMBLY, Battery - Positive, POSITIVE
    CABLE ASSEMBLY, Battery - Positive, POSITIVE
  • 29
    84-88439A2 CABLE ASSEMBLY, Battery - Negative, NEGATIVE
    CABLE ASSEMBLY, Battery - Negative, NEGATIVE
  • 30
    89-853654A1 SOLENOID, Starter
    SOLENOID, Starter
  • 31
    10-20540 SCREW, (.250-20 x .62), SOLENOID TO IGNITION PLATE (5/8")
    SCREW, (.250-20 x .62), SOLENOID TO IGNITION PLATE (5/8")
  • 32
    13-26992 LOCKWASHER, (.250) Stainless Steel, Solenoid to ignition plate screw
    LOCKWASHER, (.250) Stainless Steel, Solenoid to ignition plate screw
  • 33
    84-93389A2 WIRE, SOLENOID TO STARTER MOTOR (YELLOW)
    WIRE, SOLENOID TO STARTER MOTOR (YELLOW)
  • 34
    13-39107 LOCKWASHER, (.312-24), SOLENOID TERMINALS (5/16")
    LOCKWASHER, (.312-24), SOLENOID TERMINALS (5/16")
  • 35
    11-21908 NUT, (.312-18) Cad Plated, SOLENOID TERMINALS (5/16-18)
    NUT, (.312-18) Cad Plated, SOLENOID TERMINALS (5/16-18)
  • 36
    13-26996 LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINALS (#10)
    LOCKWASHER, (#10) Stainless Steel, SOLENOID TERMINALS (#10)
  • 37
    11-68219 NUT, (#10-32) Stainless Steel, SOLENOID TERMINALS (10-32)
    NUT, (#10-32) Stainless Steel, SOLENOID TERMINALS (10-32)
  • 38
    84-79139A15 WIRE, SOLENOID TO RECTIFIER (RED)
    WIRE, SOLENOID TO RECTIFIER (RED)
  • 39
    84-92485A2 HARNESS ASSEMBLY, COIL TO SWITCH BOX (#2, 4 AND 6)
    HARNESS ASSEMBLY, COIL TO SWITCH BOX (#2, 4 AND 6)
  • 39
    84-92486A2 HARNESS ASSEMBLY, COIL TO SWITCH BOX (#1, 3 AND 5)
    HARNESS ASSEMBLY, COIL TO SWITCH BOX (#1, 3 AND 5)
  • 40
    332-7778A12 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 41
    10-90818 SCREW, SWITCH BOX TO IGNITION PLATE
    SCREW, SWITCH BOX TO IGNITION PLATE
  • 42
    23-91912 BUSHING, SWITCH BOX SCREW
    BUSHING, SWITCH BOX SCREW
  • 43
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 44
    10-62568 SCREW, (#10-16 x .375), WIRE ATTACHING
    SCREW, (#10-16 x .375), WIRE ATTACHING
