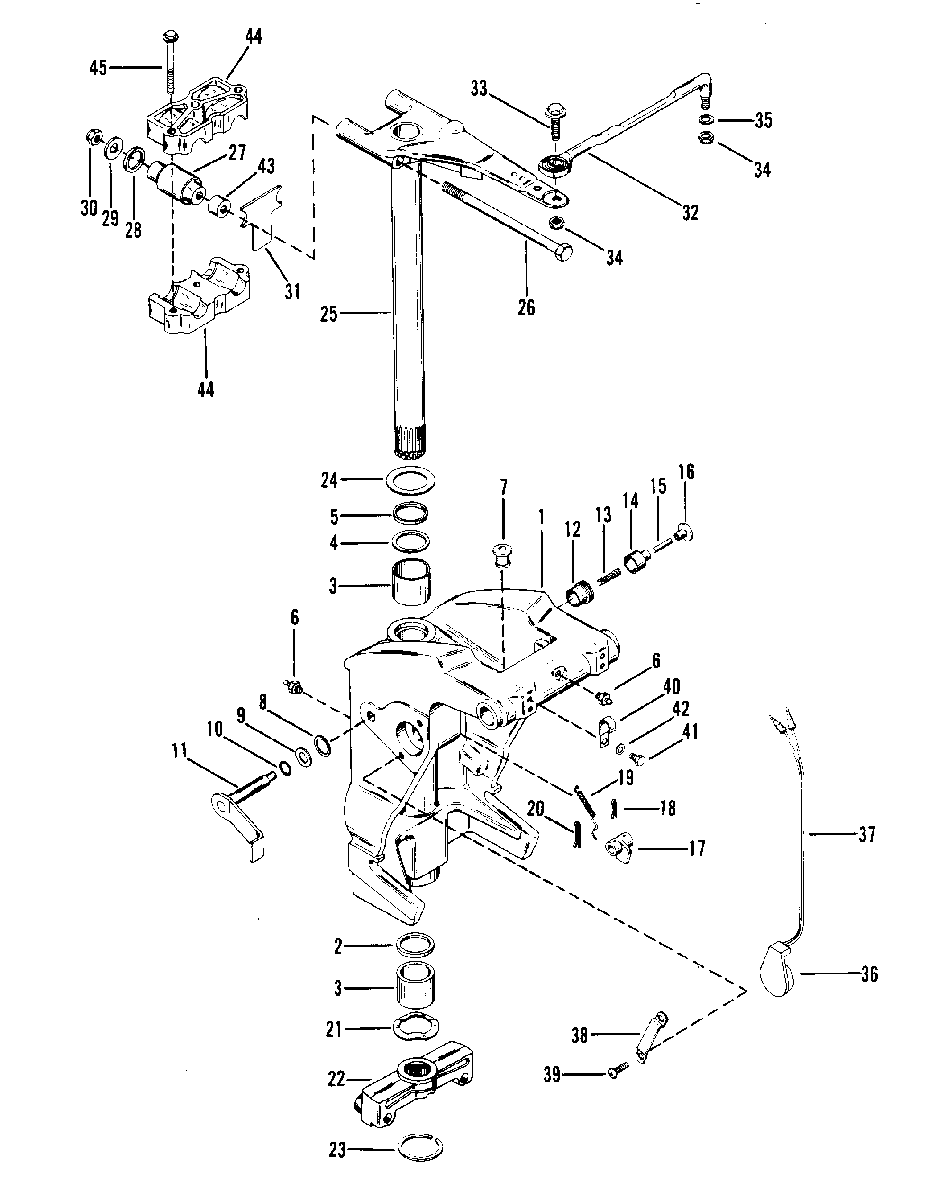

SWIVEL BRACKET AND STEERING ARM для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    1491-9225A3 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    26-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)
    SEAL, Oil, SWIVEL BRACKET (LOWER)
  • 3
    23-818764 BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
    BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
  • 4
    25-33466 O-RING, SWIVEL BRACKET (UPPER)
    O-RING, SWIVEL BRACKET (UPPER)
  • 5
    23-67668 SPACER, SWIVEL BRACKET (UPPER)
    SPACER, SWIVEL BRACKET (UPPER)
  • 6
    22-74036 FITTING, Grease, GREASE
    FITTING, Grease, GREASE
  • 7
    25-88341 GROMMET, SWIVEL BRACKET
    GROMMET, SWIVEL BRACKET
  • 8
    26-85023 SEAL, Oil, SWIVEL BRACKET
    SEAL, Oil, SWIVEL BRACKET
  • 9
    12-87161 WASHER, TILT LOCK LEVER
    WASHER, TILT LOCK LEVER
  • 10
    25-48171 O-RING, (.364. x .070), TILT LOCK LEVER
    O-RING, (.364. x .070), TILT LOCK LEVER
  • 11
    85030A2 LEVER ASSEMBLY, TILT LOCK (PORT)
    LEVER ASSEMBLY, TILT LOCK (PORT)
  • 11
    85028A2 LEVER ASSEMBLY, TILT LOCK (STARBOARD)
    LEVER ASSEMBLY, TILT LOCK (STARBOARD)
  • 12
    23-86600 BUSHING, TILT LEVER RELEASE
    BUSHING, TILT LEVER RELEASE
  • 13
    24-85367 SPRING, TILT LEVER RELEASE
    SPRING, TILT LEVER RELEASE
  • 14
    41052 PLUNGER, TILT LEVER RELEASE
    PLUNGER, TILT LEVER RELEASE
  • 15
    16-88876 STUD, PLUNGER
    STUD, PLUNGER
  • 16
    86603 KNOB, PLUNGER
    KNOB, PLUNGER
  • 17
    864751 COUPLING, TILT LOCK LEVER
    COUPLING, TILT LOCK LEVER
  • 18
    17-69745 PIN, Roll, LEVER TO COUPLING
    PIN, Roll, LEVER TO COUPLING
  • 19
    24-88049 SPRING, TENSION - COUPLING
    SPRING, TENSION - COUPLING
  • 20
    18-93861 COTTER PIN, COUPLING SPRING
    COTTER PIN, COUPLING SPRING
  • 21
    13-78854 WAVE WASHER, BOTTOM YOKE
    WAVE WASHER, BOTTOM YOKE
  • 22
    96852T YOKE, Bottom
    YOKE, Bottom
  • 23
    53-67684 RING, Retaining, BOTTOM YOKE
    RING, Retaining, BOTTOM YOKE
  • 24
    12-67670 WASHER, THRUST - SWIVEL BRACKET
    WASHER, THRUST - SWIVEL BRACKET
  • 25
    17-840792A1 SWIVEL PIN ASSEMBLY, Steering Arm
    SWIVEL PIN ASSEMBLY, Steering Arm
  • 26
    10-88659 SCREW, STEERING ARM TO UPPER MOUNT
    SCREW, STEERING ARM TO UPPER MOUNT
  • 27
    77326 MOUNT, RUBBER (UPPER)
    MOUNT, RUBBER (UPPER)
  • 28
    12-66921 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 29
    12-78688 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 30
    11-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
    NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
  • 31
    88882 BUMPER, Top Yoke, STEERING ARM
    BUMPER, Top Yoke, STEERING ARM
  • 32
    92876A12 LINK ASSEMBLY, Steering
    LINK ASSEMBLY, Steering
  • 33
    10-849838 SCREW, STEERING LINK TO STEERING ARM (1-1/8")
    SCREW, STEERING LINK TO STEERING ARM (1-1/8")
  • 34
    11-33826 NUT, STEERING LINK SCREW
    NUT, STEERING LINK SCREW
  • 35
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
    WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
  • 36
    86485A5 SENDER ASSEMBLY, Trim
    SENDER ASSEMBLY, Trim
  • 37
    84-65017A15 HARNESS ASSEMBLY, TRIM SENDER
    HARNESS ASSEMBLY, TRIM SENDER
  • 36
    86485A6 TILT SWITCH ASSEMBLY
    TILT SWITCH ASSEMBLY
  • 37
    84-65017A14 HARNESS ASSEMBLY, TILT SWITCH
    HARNESS ASSEMBLY, TILT SWITCH
  • 38
    88342 STRAP, SWITCH AND SENDER
    STRAP, SWITCH AND SENDER
  • 39
    10-87926 SCREW, (#10-32 x .500), STRAP TO SWIVEL BRACKET
    SCREW, (#10-32 x .500), STRAP TO SWIVEL BRACKET
  • 40
    54-54457 J CLIP, SWITCH AND SENDER LEADS
    J CLIP, SWITCH AND SENDER LEADS
  • 41
    10-98256 SCREW, (.250-28 x .500), CLAMP TO SWIVEL BRACKET
    SCREW, (.250-28 x .500), CLAMP TO SWIVEL BRACKET
  • 42
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, CLAMP SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, CLAMP SCREW
  • 43
    23-96851 SPACER, UPPER MOUNT BOLT
    SPACER, UPPER MOUNT BOLT
  • 44
    150311 CLAMP, UPPER MOUNT
    CLAMP, UPPER MOUNT
  • 45
    10-81516290 SCREW, UPPER MOUNT CLAMP
    SCREW, UPPER MOUNT CLAMP
  • --
    27-88605A80 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
