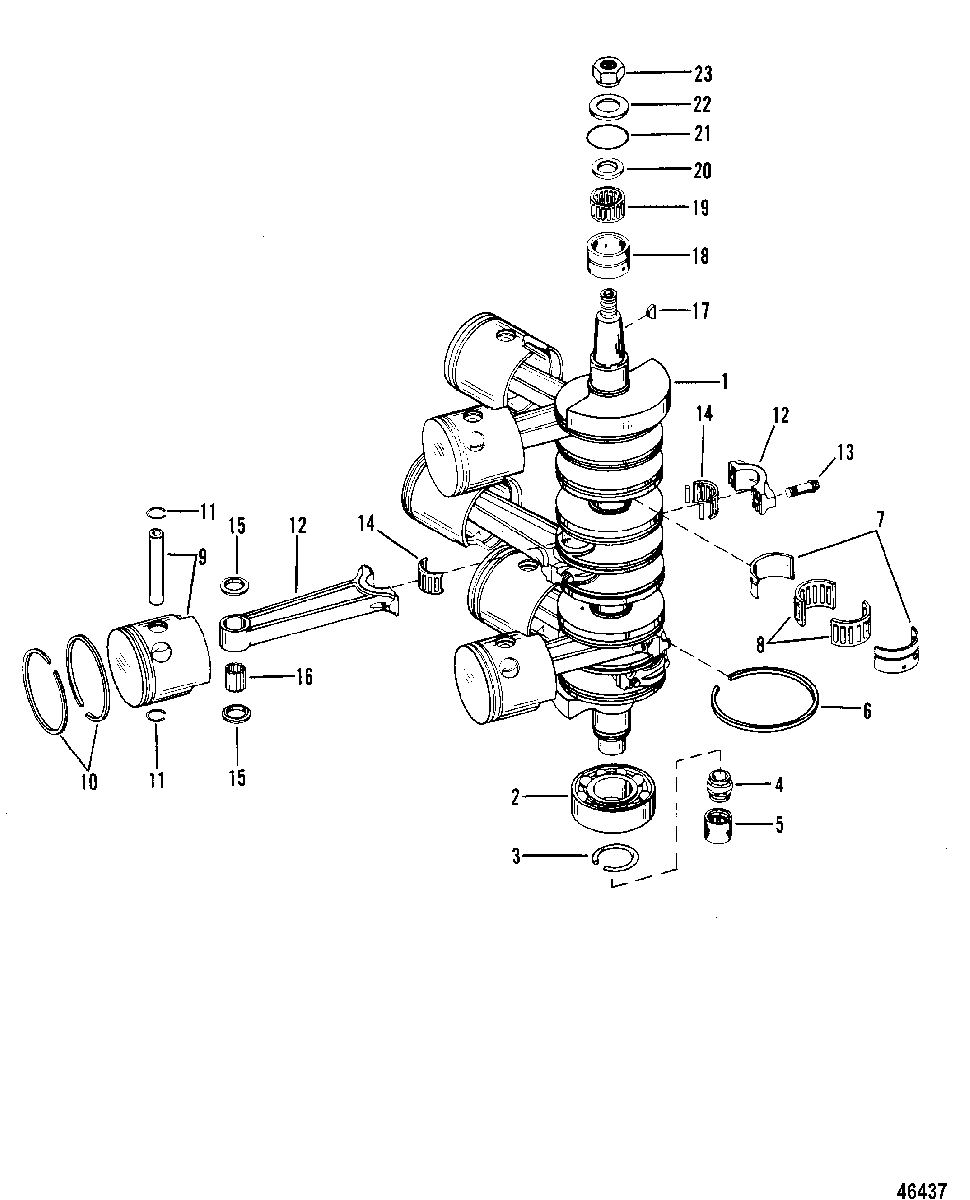

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    467-8784A1 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-88268T BEARING, Ball, CRANKSHAFT (LOWER)
    BEARING, Ball, CRANKSHAFT (LOWER)
  • 3
    53-89531 RING, Retaining, BALL BEARING
    RING, Retaining, BALL BEARING
  • 4
    89938 SEAL, CRANKSHAFT/DRIVESHAFT
    SEAL, CRANKSHAFT/DRIVESHAFT
  • 5
    89939 SEAT, CRANKSHAFT/DRIVESHAFT
    SEAT, CRANKSHAFT/DRIVESHAFT
  • 6
    8M0027715 RING, SEALING - CRANKSHAFT
    RING, SEALING - CRANKSHAFT
  • 7
    31-88270T RACE, Bearing, CENTER MAIN
    RACE, Bearing, CENTER MAIN
  • 8
    31-88269T BEARING, Roller, CENTER MAIN
    BEARING, Roller, CENTER MAIN
  • 9
    782-9530A3 PISTON ASSEMBLY (STARBOARD)
    PISTON ASSEMBLY (STARBOARD)
  • 9
    782-9531A3 PISTON ASSEMBLY (PORT)
    PISTON ASSEMBLY (PORT)
  • 10
    39-88256A12 RING SET, Piston
    RING SET, Piston
  • 11
    53-8320811 LOCK RING, PISTON
    LOCK RING, PISTON
  • 12
    631-8185A10 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 13
    10-94320 SCREW, (.375-24 x 1.250), CONNECTING ROD (3/8-24 THREAD)
    SCREW, (.375-24 x 1.250), CONNECTING ROD (3/8-24 THREAD)
  • 13
    10-96114 SCREW, CONNECTING ROD (5/16-24 THREAD)
    SCREW, CONNECTING ROD (5/16-24 THREAD)
  • 14
    31-43012A2 BEARING ASSEMBLY, Roller, CRANKSHAFT END
    BEARING ASSEMBLY, Roller, CRANKSHAFT END
  • 15
    12-88263 THRUST WASHER, NEEDLE LOCATING
    THRUST WASHER, NEEDLE LOCATING
  • 16
    29-88258001 NEEDLE, Roller Bearing, PISTON END
    NEEDLE, Roller Bearing, PISTON END
  • 17
    28-91800 KEY, Woodruff, CRANKSHAFT
    KEY, Woodruff, CRANKSHAFT
  • 18
    31-814409A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 19
    31-17898 BEARING, Roller
    BEARING, Roller
  • 20
    26-41953 SEAL
    SEAL
  • 21
    25-823683 O-RING
    O-RING
  • 22
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
    WASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
  • 23
    11-52901 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • --
    27-88605A80 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
