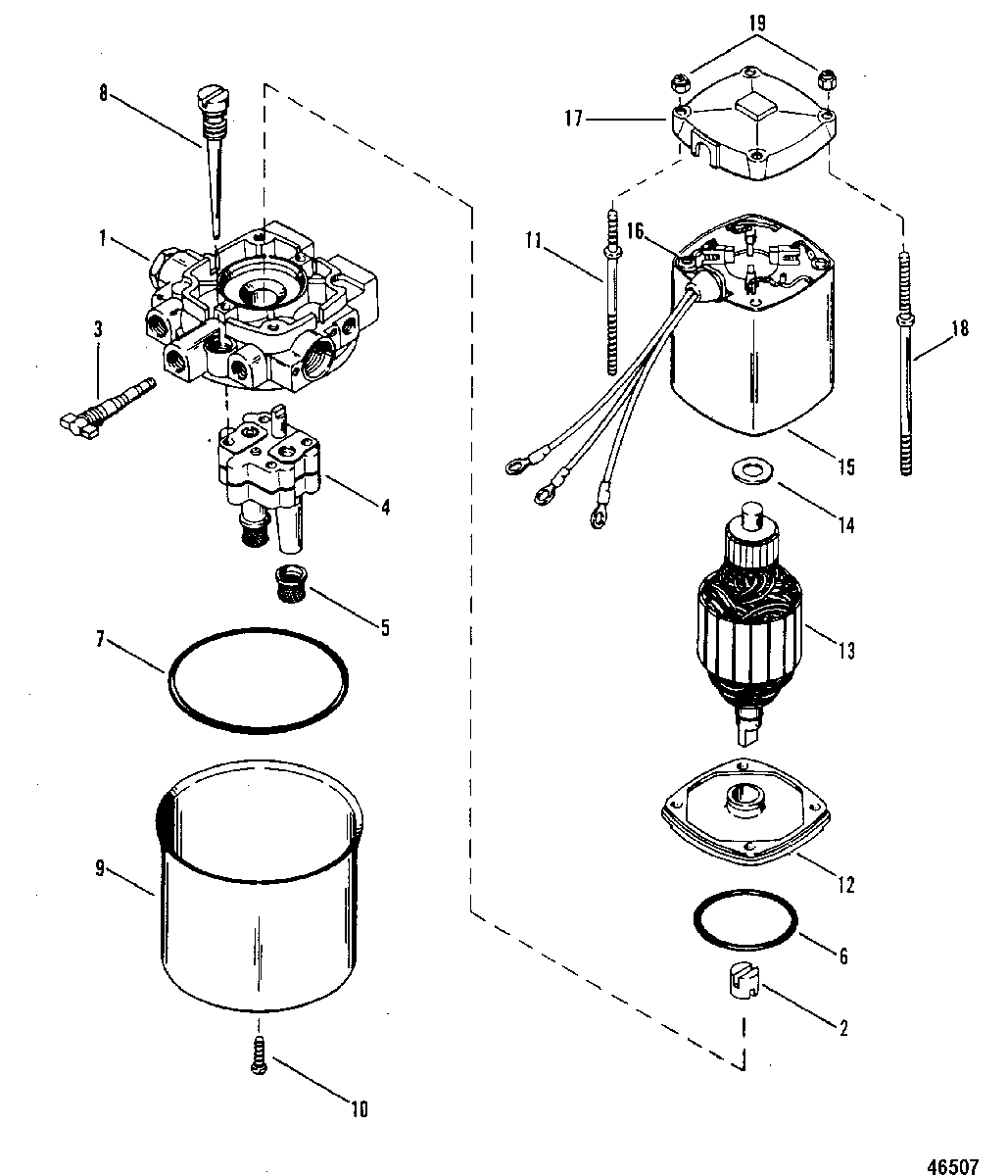

HYDRAULIC PUMP(DESIGN I) для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • -
    823653A9 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 1
    823653A9 ADAPTOR
    ADAPTOR
  • 2
    803852 COUPLING
    COUPLING
  • 3
    99073A2 MANUAL RELEASE (INCLUDES 2 "O" RINGS)
    MANUAL RELEASE (INCLUDES 2 "O" RINGS)
  • 3
    99073A2 MANUAL RELEASE (INCLUDES 3 "O" RINGS)
    MANUAL RELEASE (INCLUDES 3 "O" RINGS)
  • 4
    823653A9 PUMP (INCLUDES SCREWS)
    PUMP (INCLUDES SCREWS)
  • 5
    35-89496 FILTER
    FILTER
  • 6
    25-89498 O-RING, MOTOR END
    O-RING, MOTOR END
  • 7
    25-89497 O-RING, RESERVOIR END
    O-RING, RESERVOIR END
  • 8
    89499 DIPSTICK
    DIPSTICK
  • 9
    90587T RESERVOIR
    RESERVOIR
  • 10
    10-90588 SCREW, RESERVOIR (INCLUDES "O" RING)
    SCREW, RESERVOIR (INCLUDES "O" RING)
  • 11
    16-90589 THRU STUD (SHORT)
    THRU STUD (SHORT)
  • 11
    16-90590 THRU STUD (LONG)
    THRU STUD (LONG)
  • --
    17649A02 MOTOR, HYDRAULIC PUMP
    MOTOR, HYDRAULIC PUMP
  • 12
    89484 END FRAME, DRIVE END
    END FRAME, DRIVE END
  • 13
    89485 ARMATURE
    ARMATURE
  • 14
    12-89482 WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 15
    89486 FIELD AND FRAME
    FIELD AND FRAME
  • 16
    17649A02 BRUSH CARD
    BRUSH CARD
  • 17
    89488 END FRAME, COMMUTATOR END
    END FRAME, COMMUTATOR END
  • 18
    10-89483 THRU BOLT, MOTOR (4-1/4")
    THRU BOLT, MOTOR (4-1/4")
  • 18
    10-89489 THRU BOLT, MOTOR (4-9/16")
    THRU BOLT, MOTOR (4-9/16")
  • 19
    11-89481 NUT, THRU BOLT AND STUD
    NUT, THRU BOLT AND STUD
  • --
    812501A1 REPAIR KIT, Relief Valve
    REPAIR KIT, Relief Valve
  • --
    99073A2 REPAIR KIT, Overhaul
    REPAIR KIT, Overhaul
