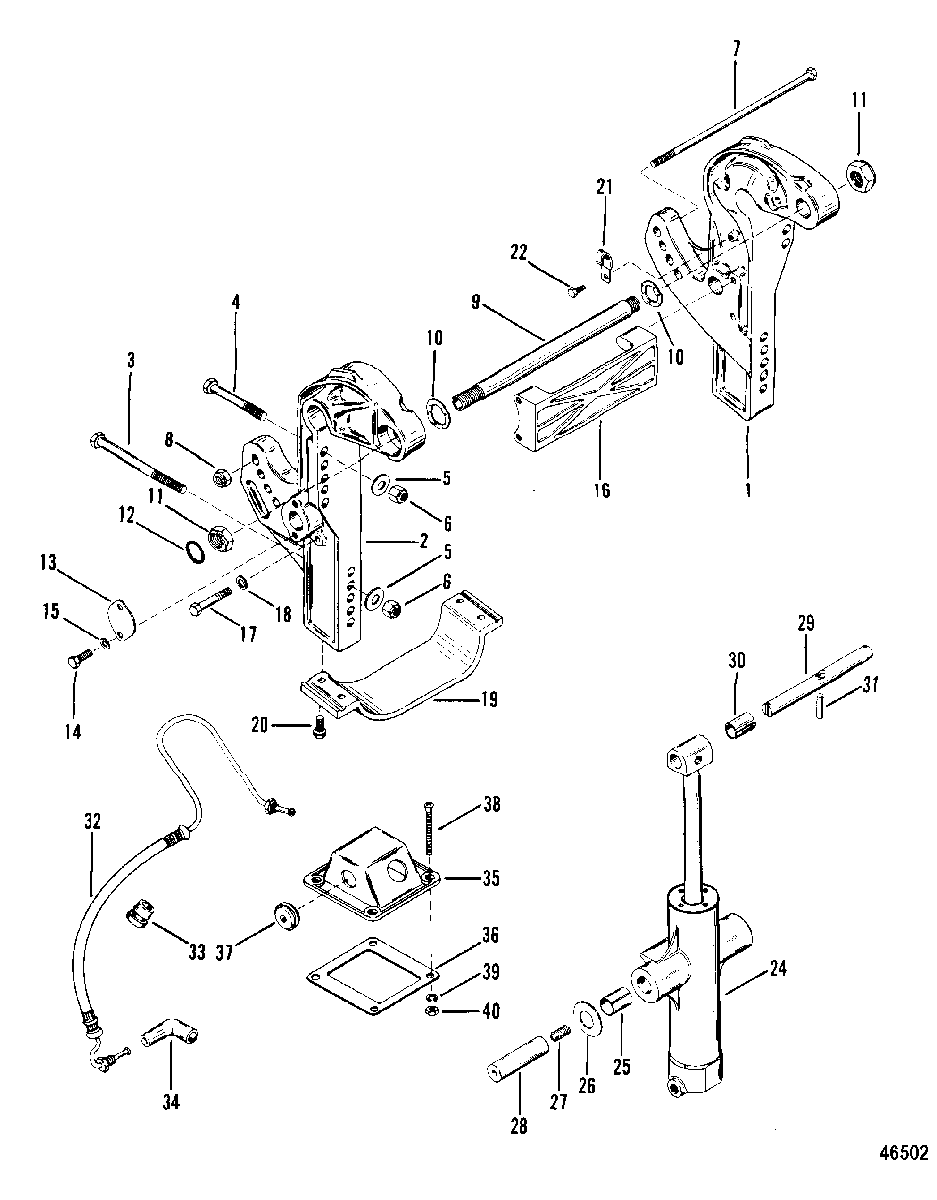

TRANSOM BRACKETS для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    1494-7476T1 BRACKET, TRANSOM (PORT)
    BRACKET, TRANSOM (PORT)
  • 2
    1495-74781 BRACKET, TRANSOM (STARBOARD)
    BRACKET, TRANSOM (STARBOARD)
  • 3
    10-677552 SCREW, (.500-20 x 6.500), BRACKET TO TRANSOM (6-1/2")
    SCREW, (.500-20 x 6.500), BRACKET TO TRANSOM (6-1/2")
  • 4
    10-677551 SCREW, (.500-20 x 4.500), BRACKET TO TRANSOM (4-1/2")
    SCREW, (.500-20 x 4.500), BRACKET TO TRANSOM (4-1/2")
  • 5
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, BRACKET SCREW
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, BRACKET SCREW
  • 6
    11-91962 NUT, (.500-20), BRACKET SCREW
    NUT, (.500-20), BRACKET SCREW
  • 7
    10-87180 BOLT, (.500-20 x 11.00), TILT
    BOLT, (.500-20 x 11.00), TILT
  • 8
    11-82671317 NUT, (.500-20), TILT BOLT
    NUT, (.500-20), TILT BOLT
  • 9
    826125A1 TILT TUBE
    TILT TUBE
  • 10
    12-85022 WASHER, TILT TUBE
    WASHER, TILT TUBE
  • 11
    11-858869 NUT, (.875-14), TILT TUBE (7/8-14)
    NUT, (.875-14), TILT TUBE (7/8-14)
  • 11
    11-82671327 NUT, (1.00-14), TILT TUBE (1"-14)
    NUT, (1.00-14), TILT TUBE (1"-14)
  • 12
    25-45711 O-RING, (.612 x .103), TILT TUBE
    O-RING, (.612 x .103), TILT TUBE
  • 13
    85026T PLATE, PIVOT PIN
    PLATE, PIVOT PIN
  • 14
    10-28636 SCREW, (.250-20 x .750), PLATE TO TRANSOM BRACKET
    SCREW, (.250-20 x .750), PLATE TO TRANSOM BRACKET
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, PLATE SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, PLATE SCREW
  • 16
    85035T SPACER, TRANSOM BRACKET
    SPACER, TRANSOM BRACKET
  • 17
    10-70732 SCREW, (.250-20 x 2.00), SPACER TO TRANSOM BRACKET
    SCREW, (.250-20 x 2.00), SPACER TO TRANSOM BRACKET
  • 18
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SPACER SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, SPACER SCREW
  • 19
    89949A1 PLATE ASSEMBLY, TRANSOM BRACKET
    PLATE ASSEMBLY, TRANSOM BRACKET
  • 20
    10-90192 SCREW, (.250-20 x .875), PLATE TO TRANSOM BRACKET
    SCREW, (.250-20 x .875), PLATE TO TRANSOM BRACKET
  • 21
    54-88512 CLAMP, HYDRAULIC HOSE
    CLAMP, HYDRAULIC HOSE
  • 21
    54-75275 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 22
    10-88829 SCREW, (#10-24 x .500), CLAMP TO TRANSOM BRACKET
    SCREW, (#10-24 x .500), CLAMP TO TRANSOM BRACKET
  • 24
    79610A6 TRIM CYLINDER ASSEMBLY (79879A1 REPAIR KIT)
    TRIM CYLINDER ASSEMBLY (79879A1 REPAIR KIT)
  • 25
    23-86489 BUSHING, TRIM CYLINDER
    BUSHING, TRIM CYLINDER
  • 26
    12-85022 WASHER, TRANSOM BRACKET
    WASHER, TRANSOM BRACKET
  • 27
    24-30316 SPRING, TRIM CYLINDER
    SPRING, TRIM CYLINDER
  • 28
    17-85020T PIN, Pivot, TRIM CYLINDER
    PIN, Pivot, TRIM CYLINDER
  • 29
    85024 SHAFT, TRIM CYLINDER
    SHAFT, TRIM CYLINDER
  • 30
    23-86637 BEARING, TRIM SHAFT
    BEARING, TRIM SHAFT
  • 31
    17-91862 PIN, TRIM CYLINDER
    PIN, TRIM CYLINDER
  • 32
    32-89024A1 HOSE, HYDRAULIC (PORT)
    HOSE, HYDRAULIC (PORT)
  • 32
    32-89023A2 HOSE, HYDRAULIC (STARBOARD)
    HOSE, HYDRAULIC (STARBOARD)
  • 33
    25-12602002 GROMMET, HYDRAULIC HOSES
    GROMMET, HYDRAULIC HOSES
  • 34
    22-87207 CONNECTOR, HYDRAULIC HOSE
    CONNECTOR, HYDRAULIC HOSE
  • 35
    87871T COVER, INLET - HYDRAULIC HOSE
    COVER, INLET - HYDRAULIC HOSE
  • 36
    27-87775 GASKET, INLET COVER
    GASKET, INLET COVER
  • 37
    25-45507 GROMMET, INLET COVER
    GROMMET, INLET COVER
  • 38
    10-36070 SCREW, (#10-32 x 1.250), INLET COVER
    SCREW, (#10-32 x 1.250), INLET COVER
  • 39
    13-26996 LOCKWASHER, (#10) Stainless Steel, INLET COVER SCREW
    LOCKWASHER, (#10) Stainless Steel, INLET COVER SCREW
  • 40
    11-68219 NUT, (#10-32) Stainless Steel, INLET COVER SCREW
    NUT, (#10-32) Stainless Steel, INLET COVER SCREW
