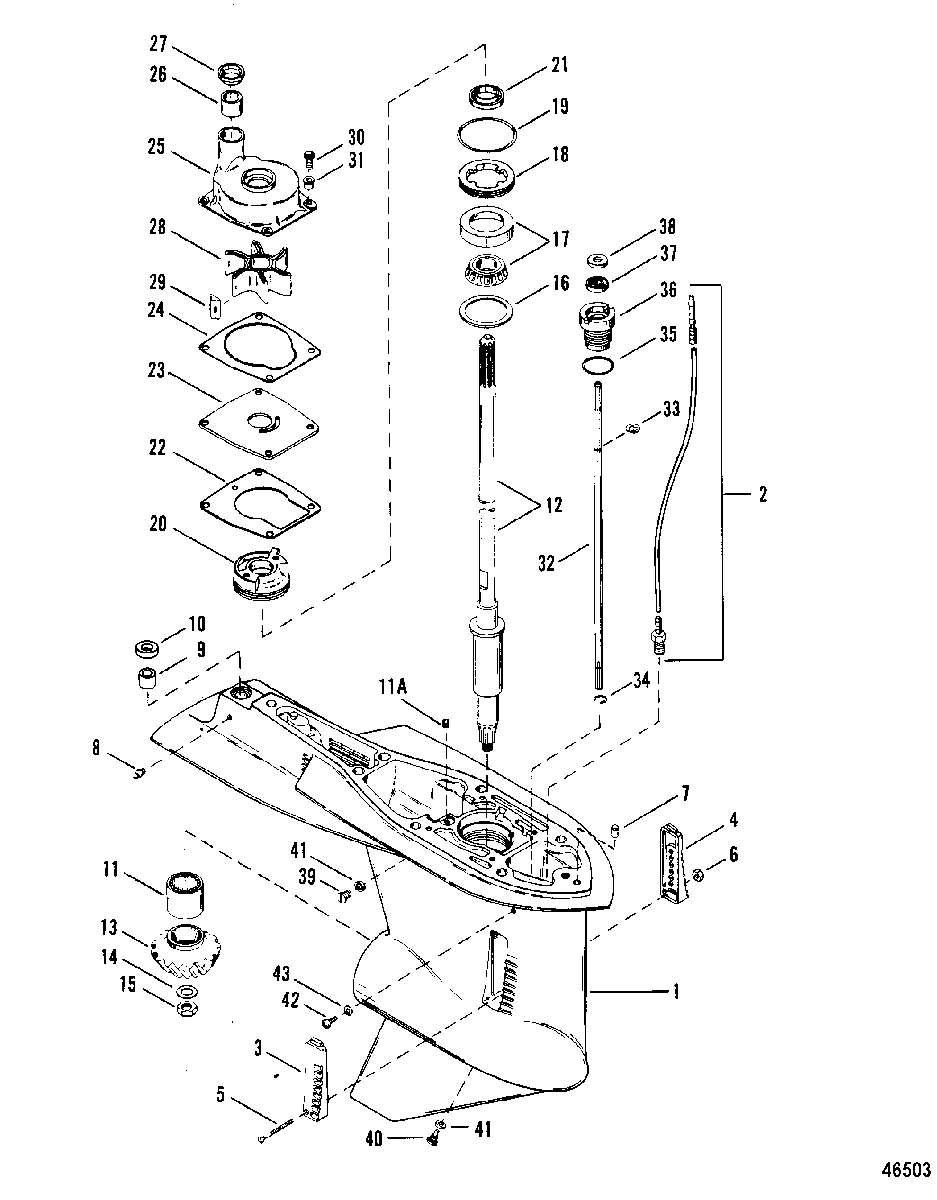

GEAR HOUSING(DRIVE SHAFT) для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • -
    1659-9554A12 GEAR HOUSING ASSEMBLY, COMPLETE (LONG)
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG)
  • -
    1659-9554A6 GEAR HOUSING ASSEMBLY, COMPLETE (EXTRA LONG)
    GEAR HOUSING ASSEMBLY, COMPLETE (EXTRA LONG)
  • 1
    NLA No Longer Available
    No Longer Available
  • 2
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 3
    88375 INSERT, WATER (STARBOARD)
    EARLY MODELS
    INSERT, WATER (STARBOARD)
    EARLY MODELS
  • 4
    88376 INSERT, WATER (PORT)
    EARLY MODELS
    INSERT, WATER (PORT)
    EARLY MODELS
  • 5
    10-4004376 SCREW, INSERT TO GEAR HOUSING
    EARLY MODELS
    SCREW, INSERT TO GEAR HOUSING
    EARLY MODELS
  • 6
    11-89019 NUT, INSERT TO GEAR HOUSING SCREW
    EARLY MODELS
    NUT, INSERT TO GEAR HOUSING SCREW
    EARLY MODELS
  • 7
    17-43044 PIN, Dowel, GEAR HOUSING LOCATING
    PIN, Dowel, GEAR HOUSING LOCATING
  • 8
    22-74036 FITTING, Grease, GEAR HOUSING
    FITTING, Grease, GEAR HOUSING
  • 9
    23-89525 BUSHING, GEAR HOUSING
    BUSHING, GEAR HOUSING
  • 10
    26-54925 SEAL, Oil, GEAR HOUSING
    SEAL, Oil, GEAR HOUSING
  • 11
    31-88384T BEARING, Roller, DRIVE SHAFT
    BEARING, Roller, DRIVE SHAFT
  • 11A
    22-56800 PLUG, Pipe (.0625-27), GEAR HOUSING
    PLUG, Pipe (.0625-27), GEAR HOUSING
  • 12
    45-14880T DRIVESHAFT ASSEMBLY (LONG)
    DRIVESHAFT ASSEMBLY (LONG)
  • 12
    45-814809A1 DRIVESHAFT ASSEMBLY (EXTRA LONG)
    DRIVESHAFT ASSEMBLY (EXTRA LONG)
  • 13
    NLA No Longer Available
    No Longer Available
  • 14
    12-92721 WASHER, PINION GEAR NUT
    WASHER, PINION GEAR NUT
  • 15
    11-35921 NUT, (.625-18), PINION GEAR TO DRIVE SHAFT
    NUT, (.625-18), PINION GEAR TO DRIVE SHAFT
  • 16
    15-88655A1 SHIM ASSEMBLY, Roller bearing to gear housing
    SHIM ASSEMBLY, Roller bearing to gear housing
  • 17
    31-8M0103473 BEARING ASSEMBLY, Tapered Roller, DRIVE SHAFT
    BEARING ASSEMBLY, Tapered Roller, DRIVE SHAFT
  • 18
    11-88710 LOCKNUT, ROLLER BEARING
    LOCKNUT, ROLLER BEARING
  • 19
    25-88657 O-RING, WATER PUMP
    O-RING, WATER PUMP
  • 20
    46-88776A5 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 21
    26-14381 SEAL, WATER PUMP BASE
    SEAL, WATER PUMP BASE
  • 22
    27-907562 GASKET, LOWER - WATER PUMP
    GASKET, LOWER - WATER PUMP
  • 23
    90755 PLATE, FACE - WATER PUMP
    PLATE, FACE - WATER PUMP
  • 24
    27-936662 GASKET, UPPER - WATER PUMP
    GASKET, UPPER - WATER PUMP
  • 25
    46-90530A1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 26
    26-88397 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 27
    88581 GUIDE, WATER INLET TUBE
    GUIDE, WATER INLET TUBE
  • 28
    47-85647 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 29
    28-88422 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 30
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel, WATER PUMP
    SCREW, (M6 x 20) Stainless Steel, WATER PUMP
  • 31
    90753 INSULATOR, WATER PUMP SCREW
    INSULATOR, WATER PUMP SCREW
  • 32
    44197A2 SHAFT, SHIFT (LOWER)
    SHAFT, SHIFT (LOWER)
  • 33
    53-29641 E RING, RETAINING - SHIFT SHAFT
    E RING, RETAINING - SHIFT SHAFT
  • 34
    53-78907 RING, Retaining
    RING, Retaining
  • 35
    25-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHING
    O-RING, (.862 x .103), SHIFT SHAFT BUSHING
  • 36
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 37
    26-8164641 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 38
    12-77674 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 39
    10-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER
    SCREW, (.375-16 x .250), GREASE FILLER
  • 40
    22-8M0058389 SCREW, Magnetic, DRAIN (MAGNETIC)
    SCREW, Magnetic, DRAIN (MAGNETIC)
  • 41
    12-191833 WASHER, GREASE FILLER AND DRAIN SCREW
    WASHER, GREASE FILLER AND DRAIN SCREW
  • 42
    10-28653 SCREW, (#10-32 x 0.25), GEAR HOUSING
    SCREW, (#10-32 x 0.25), GEAR HOUSING
  • 43
    19643 WASHER, GEAR HOUSING
    WASHER, GEAR HOUSING
  • --
    1659-9554A12 GEAR HOUSING ASSEMBLY (LONG)
    ORDER WHEN ORDERING BASIC GEAR HOUSING OR GEAR SET.
    GEAR HOUSING ASSEMBLY (LONG)
    ORDER WHEN ORDERING BASIC GEAR HOUSING OR GEAR SET.
  • --
    1659-9554A6 GEAR HOUSING ASSEMBLY (XLONG)
    ORDER WHEN ORDERING BASIC GEAR HOUSING OR GEAR SET.
    GEAR HOUSING ASSEMBLY (XLONG)
    ORDER WHEN ORDERING BASIC GEAR HOUSING OR GEAR SET.
  • --
    27-88605A80 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
