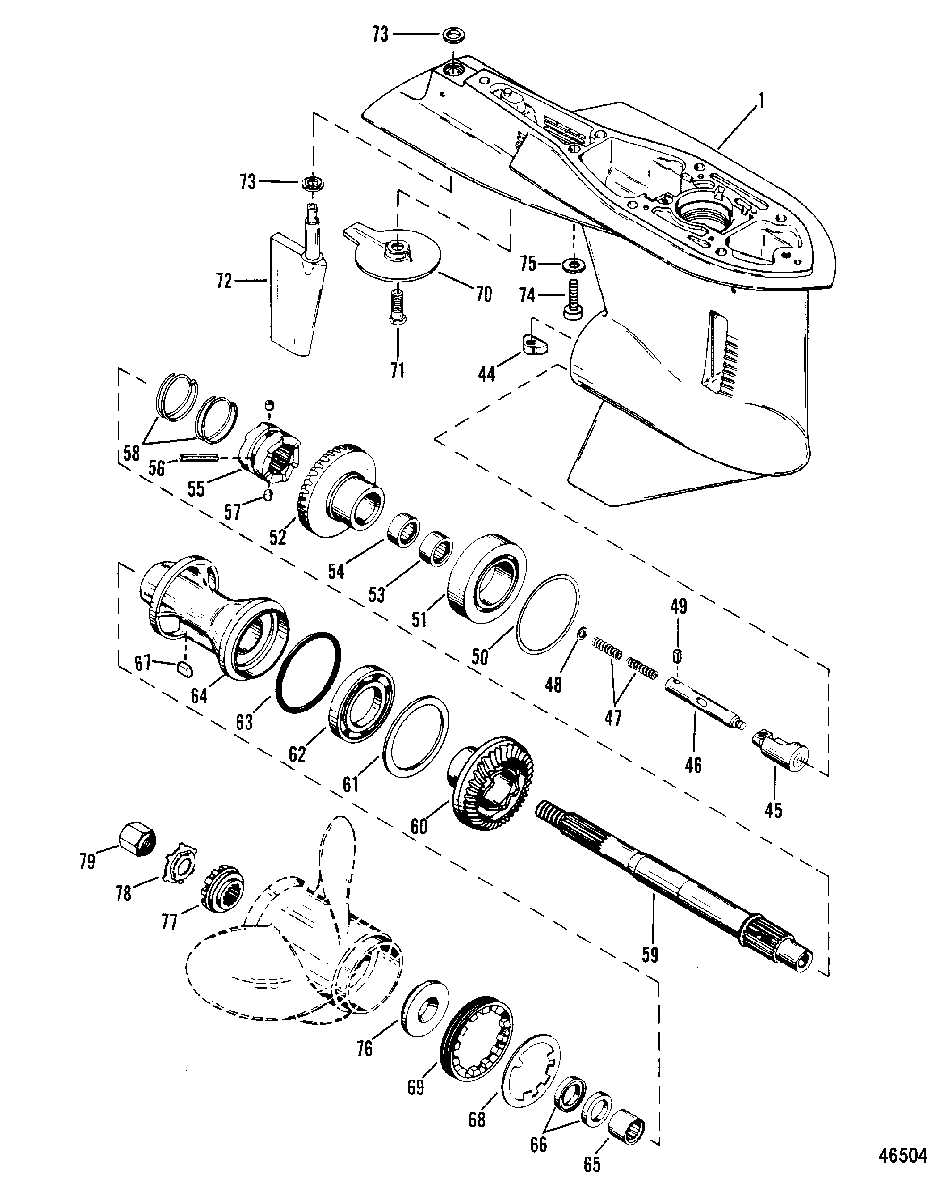

GEAR HOUSING(PROPELLER SHAFT) для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • -
    1659-9554A12 GEAR HOUSING ASSEMBLY, COMP. (LONG)
    GEAR HOUSING ASSEMBLY, COMP. (LONG)
  • -
    1659-9554A6 GEAR HOUSING ASSEMBLY, COMP. (EXTRA LONG)
    GEAR HOUSING ASSEMBLY, COMP. (EXTRA LONG)
  • 1
    NLA No Longer Available
    No Longer Available
  • 44
    789562 SHIFT CAM
    SHIFT CAM
  • 45
    89594A1 FOLLOWER ASSEMBLY, CAM
    FOLLOWER ASSEMBLY, CAM
  • 46
    88523A1 ROD, CLUTCH ACTUATOR
    ROD, CLUTCH ACTUATOR
  • 47
    24-88579 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 48
    12-78910 WASHER, COMPRESSION SPRING
    WASHER, COMPRESSION SPRING
  • 49
    17-8M0084245 PIN, SPRING LOCATOR
    PIN, SPRING LOCATOR
  • 50
    15-47397A1 SHIM SET, BEARING OUTER RACE (.002-3-5-10)
    SHIM SET, BEARING OUTER RACE (.002-3-5-10)
  • 51
    31-78172A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 52
    NLA No Longer Available
    No Longer Available
  • 53
    31-73363T BEARING, Roller, FORWARD GEAR
    BEARING, Roller, FORWARD GEAR
  • 54
    31-88583 BEARING, Roller, FORWARD GEAR
    BEARING, Roller, FORWARD GEAR
  • 55
    52-823580 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 56
    17-8M0084243 PIN, Cross, RATCHET TO PROPELLER SHAFT
    PIN, Cross, RATCHET TO PROPELLER SHAFT
  • 57
    17-78909 PIN, Detent, RATCHET
    PIN, Detent, RATCHET
  • 58
    24-78962 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 59
    44-93848 PROPELLER SHAFT
    PROPELLER SHAFT
  • 60
    NLA No Longer Available
    No Longer Available
  • 61
    681001 RING, THRUST - BEARING CARRIER
    RING, THRUST - BEARING CARRIER
  • 62
    30-88957T BEARING, Ball, - REVERSE GEAR
    BEARING, Ball, - REVERSE GEAR
  • 63
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 64
    88603A4 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 65
    31-30956T BEARING, Needle, BEARING CARRIER
    BEARING, Needle, BEARING CARRIER
  • 66
    26-76868 SEAL, BEARING CARRIER
    SEAL, BEARING CARRIER
  • 67
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 68
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 69
    8M2000347 RETAINER, GEAR HOUSING
    RETAINER, GEAR HOUSING
  • 70
    89026 COVER, ANODE
    COVER, ANODE
  • 71
    10-47658 SCREW, (.437-14 x 1.50) Stainless Steel, ANODE COVER
    SCREW, (.437-14 x 1.50) Stainless Steel, ANODE COVER
  • 72
    95781 RUDDER
    RUDDER
  • 73
    23-89514 BUSHING, RUDDER
    BUSHING, RUDDER
  • 74
    10-95705 SCREW, (.437-14 x 3.00), Gear housing to drive shaft housing
    SCREW, (.437-14 x 3.00), Gear housing to drive shaft housing
  • 75
    12-45176 WASHER, GEAR HOUSING SCREW
    WASHER, GEAR HOUSING SCREW
  • 76
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 77
    12-31211Q03 WASHER, Splined, SPLINED - PROPELLER NUT
    WASHER, Splined, SPLINED - PROPELLER NUT
  • 78
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 79
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • --
    1659-9554A12 GEAR HOUSING ASSEMBLY (LONG)
    ORDER WHEN ORDERING BASIC GEAR HOUSING OR GEAR SET.
    GEAR HOUSING ASSEMBLY (LONG)
    ORDER WHEN ORDERING BASIC GEAR HOUSING OR GEAR SET.
  • --
    1659-9554A6 GEAR HOUSING ASSEMBLY (XLONG)
    ORDER WHEN ORDERING BASIC GEAR HOUSING OR GEAR SET.
    GEAR HOUSING ASSEMBLY (XLONG)
    ORDER WHEN ORDERING BASIC GEAR HOUSING OR GEAR SET.
  • --
    27-88605A80 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
