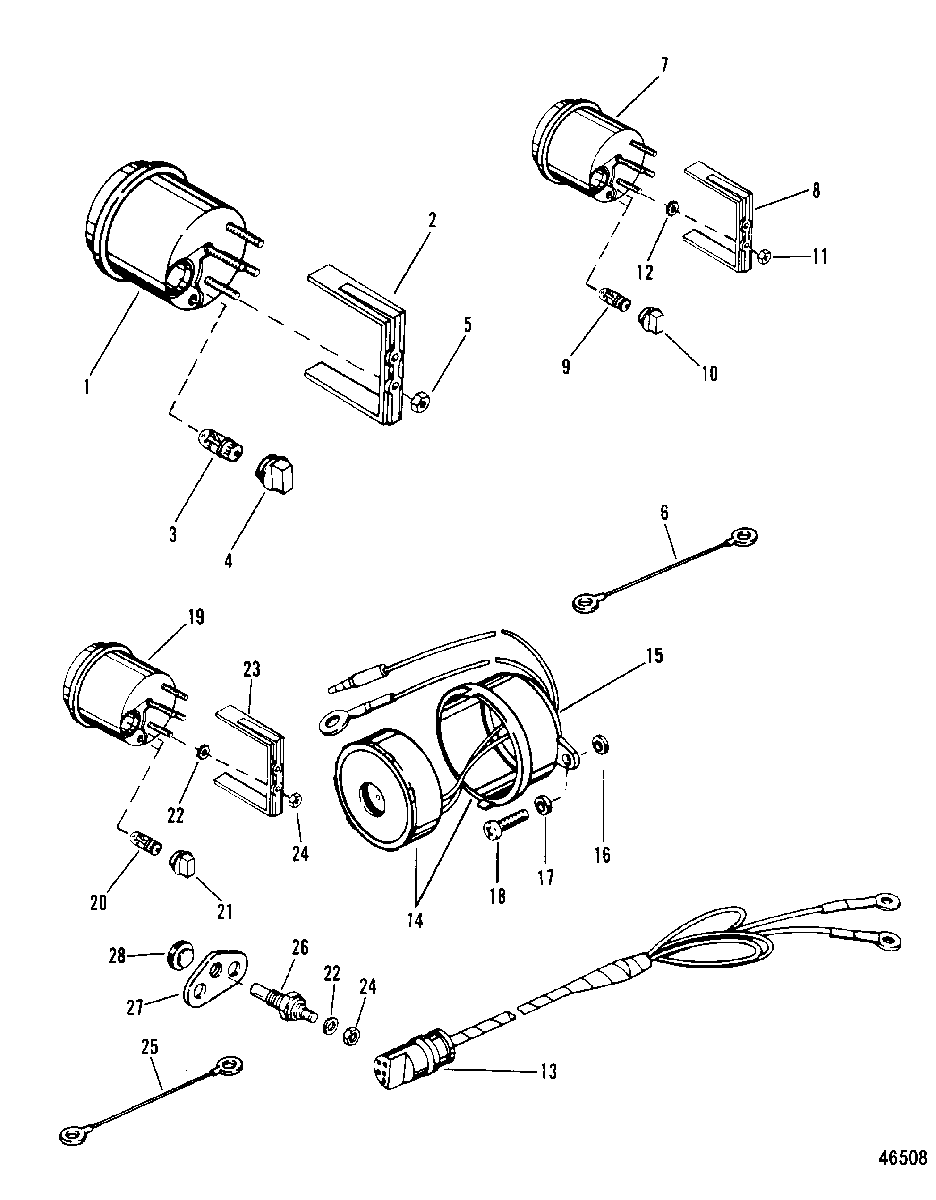

TACHOMETER, TRIM GAUGE AND ALARM HORN для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    79-895283Q43 TACHOMETER
    TACHOMETER
  • 2
    79101T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 3
    88-72729 LIGHT BULB, Wedge Base (14V - .19W)
    LIGHT BULB, Wedge Base (14V - .19W)
  • 4
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 5
    11-26419 NUT, (#8-32) Brass (#8-32)
    NUT, (#8-32) Brass (#8-32)
  • 6
    84-86322A7 CABLE ASSEMBLY, (1.50 Feet) Black, TRIM GAUGE (BLACK - 1-1/2")
    CABLE ASSEMBLY, (1.50 Feet) Black, TRIM GAUGE (BLACK - 1-1/2")
  • 6
    84-86323A5 CABLE ASSEMBLY, (1.50 Feet) Purple, TRIM GAUGE (PURPLE - 1-1/2")
    CABLE ASSEMBLY, (1.50 Feet) Purple, TRIM GAUGE (PURPLE - 1-1/2")
  • 7
    79-895292Q41 TRIM GAUGE
    TRIM GAUGE
  • 8
    79480 BRACKET, MOUNTING - TRIM GAUGE
    BRACKET, MOUNTING - TRIM GAUGE
  • 9
    88-72729 LIGHT BULB, Wedge Base (14V - .19W), TRIM GAUGE
    LIGHT BULB, Wedge Base (14V - .19W), TRIM GAUGE
  • 10
    88-79888 SOCKET, Light Bulb, TRIM GAUGE
    SOCKET, Light Bulb, TRIM GAUGE
  • 11
    11-26419 NUT, (#8-32) Brass, TRIM GAUGE TERMINAL (8-32)
    NUT, (#8-32) Brass, TRIM GAUGE TERMINAL (8-32)
  • 12
    13-26995 LOCKWASHER, (#8) Stainless Steel, TRIM GAUGE TERMINAL (#8)
    LOCKWASHER, (#8) Stainless Steel, TRIM GAUGE TERMINAL (#8)
  • 13
    84-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)
    HARNESS ASSEMBLY, Tachometer (5.00 Feet)
  • 14
    68878A6 HORN ASSEMBLY, Alarm
    HORN ASSEMBLY, Alarm
  • 15
    68879 COVER, ALARM HORN
    COVER, ALARM HORN
  • 16
    23-8M0084588 SPACER, ALARM HORN
    SPACER, ALARM HORN
  • 17
    12-24676 WASHER, (.200 x .440 x .032), ALARM HORN
    WASHER, (.200 x .440 x .032), ALARM HORN
  • 18
    10-35401 SCREW, (#10 x 1.00), ALARM HORN
    SCREW, (#10 x 1.00), ALARM HORN
  • 19
    79-895287Q41 TEMPERATURE GAUGE
    TEMPERATURE GAUGE
  • 20
    88-72729 LIGHT BULB, Wedge Base (14V - .19W)
    LIGHT BULB, Wedge Base (14V - .19W)
  • 21
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 22
    12-26427 WASHER
    WASHER
  • 23
    79480 BRACKET
    BRACKET
  • 24
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 25
    84-86323A2 CABLE ASSEMBLY, (2.00 Feet) Purple (PURPLE)
    CABLE ASSEMBLY, (2.00 Feet) Purple (PURPLE)
  • 25
    84-61600A16 CABLE ASSEMBLY, (17.00 Inches) Black (BLACK)
    CABLE ASSEMBLY, (17.00 Inches) Black (BLACK)
  • 25
    84-88032A3 CABLE ASSEMBLY, (23.00 Feet) Tan/Blue (TAN/BLUE) - 23'
    CABLE ASSEMBLY, (23.00 Feet) Tan/Blue (TAN/BLUE) - 23'
  • 26
    12415 SENDER, Temperature
    SENDER, Temperature
  • 27
    12419 COVER, SENDER
    COVER, SENDER
  • 28
    19-12431T PLUG
    PLUG
