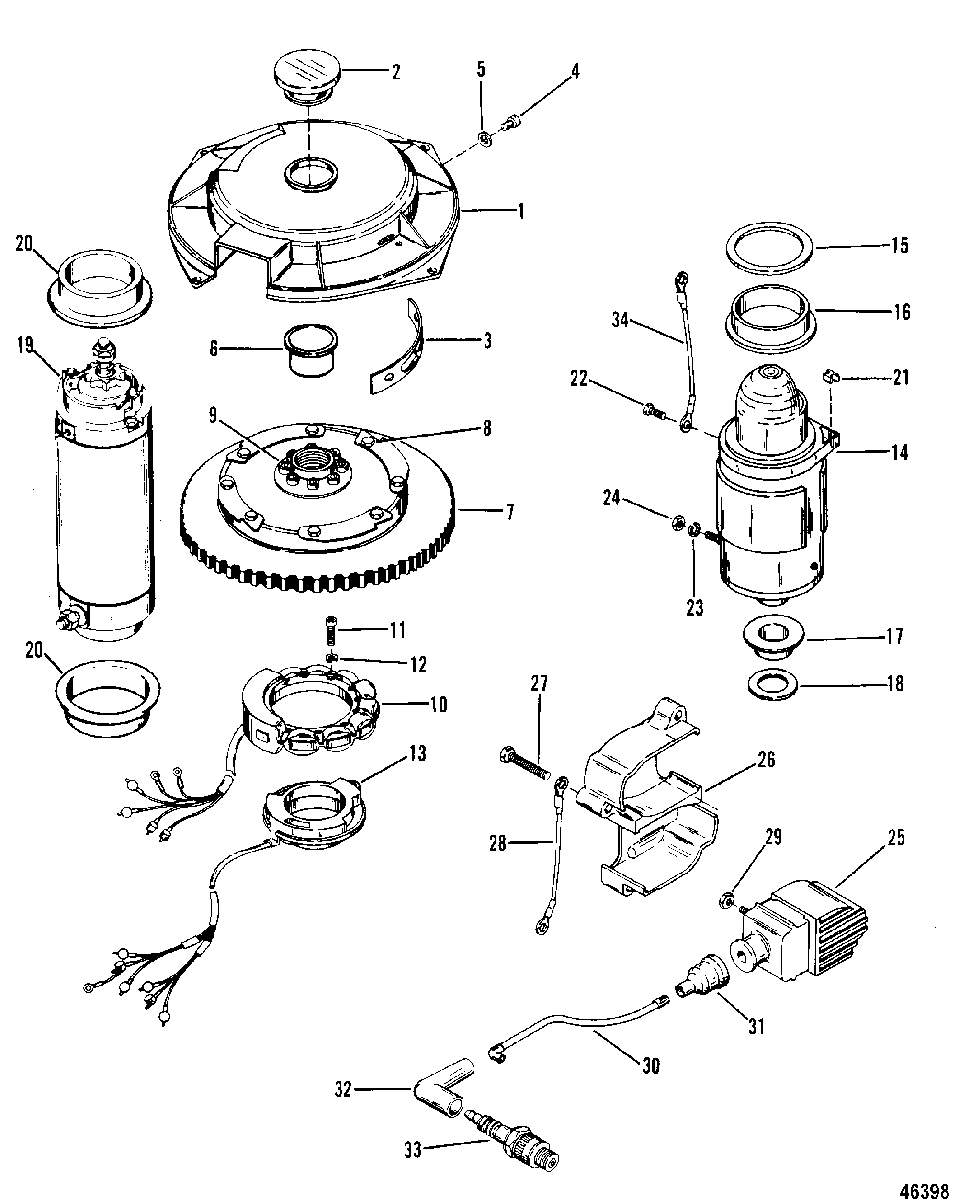

FLYWHEEL, STARTER MOTOR AND IGNITION COILS для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    887832 COVER, FLYWHEEL
    COVER, FLYWHEEL
  • 2
    19-89219001 PLUG, FLYWHEEL COVER
    PLUG, FLYWHEEL COVER
  • 3
    79022 MARKER, TIMING
    MARKER, TIMING
  • 4
    10-37572 SCREW, (.190-32 x .380), TIMING MARKER
    SCREW, (.190-32 x .380), TIMING MARKER
  • 5
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
    WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
  • 6
    19-45907 PLUG, Yellow, FLYWHEEL
    PLUG, Yellow, FLYWHEEL
  • 7
    257-7555A11 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 8
    10-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATE
    SCREW, (.250-28 x .625), FLYWHEEL PLATE
  • 9
    10-89317 SCREW, FLYWHEEL HUB
    SCREW, FLYWHEEL HUB
  • 10
    398-5454A55 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 11
    10-77363 SCREW, (#10-24 x 1.50), STATOR
    SCREW, (#10-24 x 1.50), STATOR
  • 12
    13-26996 LOCKWASHER, (#10) Stainless Steel, STATOR SCREW
    LOCKWASHER, (#10) Stainless Steel, STATOR SCREW
  • 13
    89004A7 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 14
    50-88656 STARTER MOTOR ASSEMBLY, PRESTOLITE
    STARTER MOTOR ASSEMBLY, PRESTOLITE
  • 15
    12-93900 WASHER, STARTER MOTOR (UPPER) (PRESTOLITE)
    WASHER, STARTER MOTOR (UPPER) (PRESTOLITE)
  • 16
    88738 COLLAR, STARTER MOTOR (UPPER) (PRESTOLITE)
    COLLAR, STARTER MOTOR (UPPER) (PRESTOLITE)
  • 17
    88739 COLLAR, STARTER MOTOR (LOWER) (PRESTOLITE)
    COLLAR, STARTER MOTOR (LOWER) (PRESTOLITE)
  • 18
    12-93901 WASHER, STARTER MOTOR (LOWER) (PRESTOLITE)
    WASHER, STARTER MOTOR (LOWER) (PRESTOLITE)
  • 19
    50-893893 STARTER MOTOR ASSEMBLY (BOSCH)
    STARTER MOTOR ASSEMBLY (BOSCH)
  • 20
    23-8M0034918 COLLAR, STARTER MOTOR (BOSCH)
    COLLAR, STARTER MOTOR (BOSCH)
  • 21
    8M0043376 STOP, Rubber, RUBBER - STARTER MOTOR
    STOP, Rubber, RUBBER - STARTER MOTOR
  • 22
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
  • 23
    13-39107 LOCKWASHER, (.312-24), STARTER MOTOR TERMINAL
    LOCKWASHER, (.312-24), STARTER MOTOR TERMINAL
  • 24
    11-21908 NUT, (.312-18) Cad Plated, STARTER MOTOR TERMINAL
    NUT, (.312-18) Cad Plated, STARTER MOTOR TERMINAL
  • 25
    339-832757A4 COIL ASSEMBLY, Ignition, IGNITION
    COIL ASSEMBLY, Ignition, IGNITION
  • 26
    67614 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 27
    10-88856 SCREW, IGNITION COIL COVER
    SCREW, IGNITION COIL COVER
  • 28
    84-60466A7 CABLE ASSEMBLY, Ground, IGNITION COIL (BLACK)
    CABLE ASSEMBLY, Ground, IGNITION COIL (BLACK)
  • 29
    11-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINAL
    NUT, (#10-32) Brass, IGNITION COIL TERMINAL
  • 30
    84-813715A1 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 31
    332-2854T01 BOOT, HIGH TENSION CABLE
    BOOT, HIGH TENSION CABLE
  • 32
    85-63709A1 BOOT/TERMINAL KIT, HIGH TENSION CABLE
    BOOT/TERMINAL KIT, HIGH TENSION CABLE
  • 33
    33-97180Q SPARK PLUG (NGK-BUHW)
    SPARK PLUG (NGK-BUHW)
  • 34
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, STARTER MOTOR TO GROUND (BLACK)
    CABLE ASSEMBLY, (6.00 Inches) Black, STARTER MOTOR TO GROUND (BLACK)
