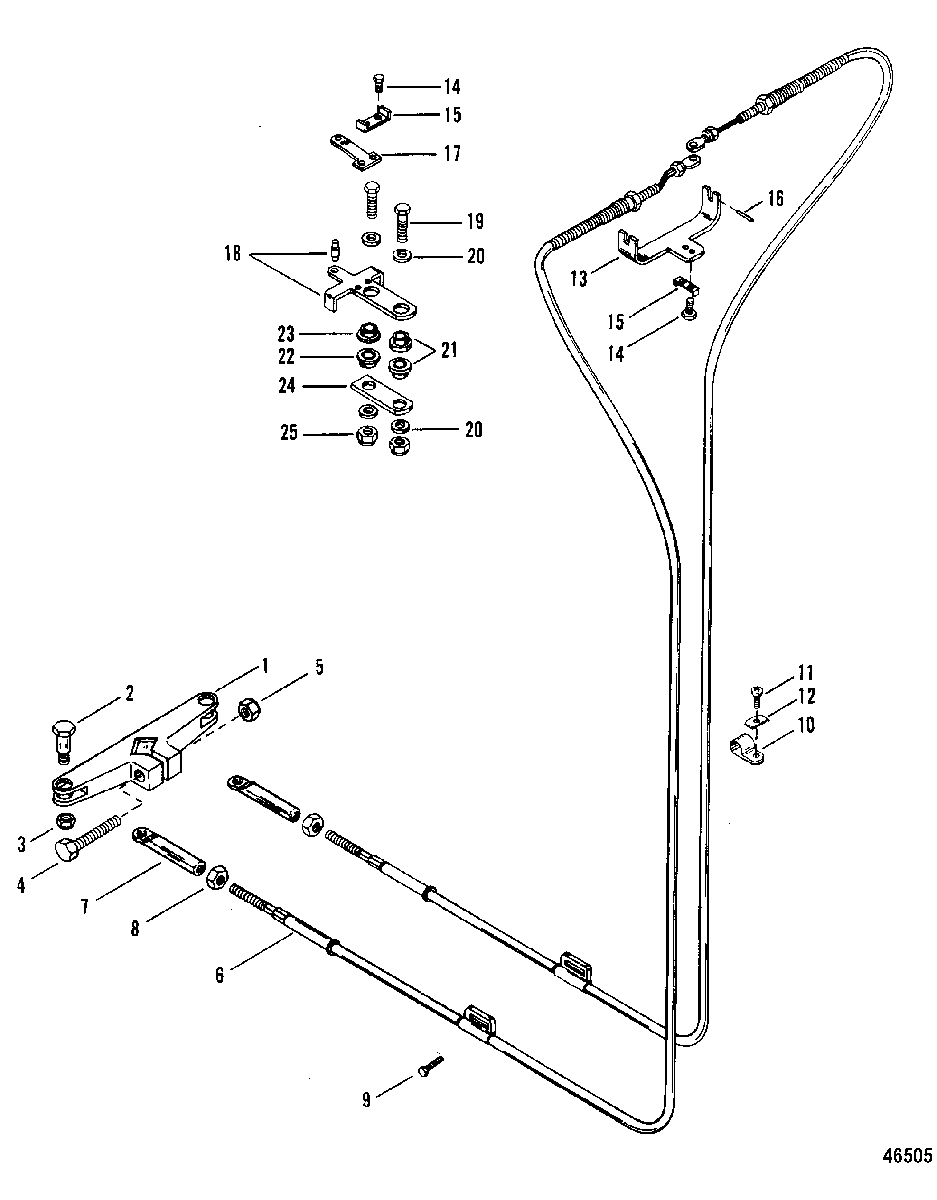

HYDRASTEER COMPONENTS для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    957791 TILLER ARM
    TILLER ARM
  • 2
    10-93348 SCREW, TILLER ARM
    SCREW, TILLER ARM
  • 3
    11-859124 NUT, (#10-32) Stainless Steel, TILLER ARM SCREW
    NUT, (#10-32) Stainless Steel, TILLER ARM SCREW
  • 4
    10-69067 SCREW, (.250-20 x 1.375), CLAMPING - TILLER ARM
    SCREW, (.250-20 x 1.375), CLAMPING - TILLER ARM
  • 5
    11-8267098 NUT, (.250-20), CLAMPING SCREW
    NUT, (.250-20), CLAMPING SCREW
  • 6
    965211 CABLE, Steering (45")
    CABLE, Steering (45")
  • 6
    965212 CABLE, Steering (50")
    CABLE, Steering (50")
  • 7
    89522 END, Cable
    END, Cable
  • 8
    11-64015 NUT, (.250-20), STEERING CABLE
    NUT, (.250-20), STEERING CABLE
  • 9
    10-400036 SCREW, (M5 x 20), STEERING CABLE ATTACHING
    SCREW, (M5 x 20), STEERING CABLE ATTACHING
  • 10
    54-26550 CLAMP, STEERING CABLE ATTACHING
    CLAMP, STEERING CABLE ATTACHING
  • 11
    10-40019107 SCREW, STEERING CABLE CLIP
    SCREW, STEERING CABLE CLIP
  • 12
    8M0084613 C WASHER, CLIP SCREW
    C WASHER, CLIP SCREW
  • 13
    89508 BRACKET, CABLE
    BRACKET, CABLE
  • 14
    10-690201 SCREW, (#10-32 x .875), CABLE RETAINER STRAP
    SCREW, (#10-32 x .875), CABLE RETAINER STRAP
  • 15
    93690 STRAP, CABLE RETAINER
    STRAP, CABLE RETAINER
  • 16
    17-69745 PIN, Roll, CABLE BRACKET
    PIN, Roll, CABLE BRACKET
  • 17
    90733 COVER PLATE
    COVER PLATE
  • 18
    89509A1 SWIVEL ASSEMBLY
    SWIVEL ASSEMBLY
  • 19
    10-94319 SCREW, (.375-24 x 1.5), CABLE SWIVEL
    SCREW, (.375-24 x 1.5), CABLE SWIVEL
  • 20
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, CABLE SWIVEL SCREW
    WASHER, (.406 x .734 x .063) Stainless Steel, CABLE SWIVEL SCREW
  • 21
    23-89515A1 BUSHING ASSEMBLY, FLANGED
    BUSHING ASSEMBLY, FLANGED
  • 22
    23-89517A1 BUSHING ASSEMBLY, FLANGED
    BUSHING ASSEMBLY, FLANGED
  • 23
    23-89516A1 BUSHING ASSEMBLY, FLANGED
    BUSHING ASSEMBLY, FLANGED
  • 24
    89513 PLATE, SWIVEL
    PLATE, SWIVEL
  • 25
    11-33826 NUT, CABLE SWIVEL SCREW
    NUT, CABLE SWIVEL SCREW
  • --
    93538A1 HYDRASTEER LOCKING KIT
    HYDRASTEER LOCKING KIT
