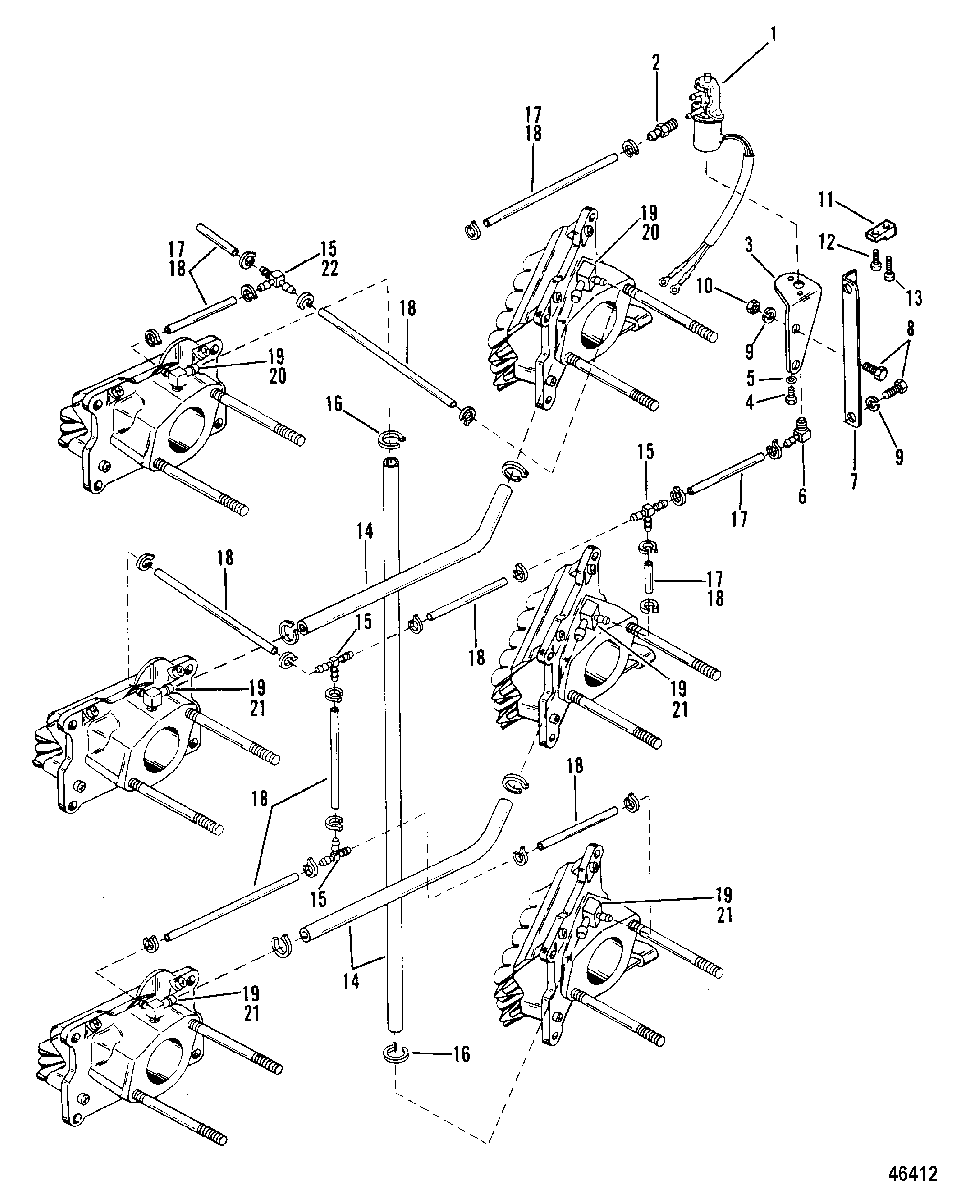

ENRICHNER VALVE AND HOSES для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    42859A2 VALVE ASSEMBLY, Enrichner, ENRICHNER
    VALVE ASSEMBLY, Enrichner, ENRICHNER
  • 2
    22-67902 CONNECTOR, ENRICHNER VALVE - SIDE
    ATTACHES WITH BRACKET
    CONNECTOR, ENRICHNER VALVE - SIDE
    ATTACHES WITH BRACKET
  • 3
    90345 BRACKET, ENRICHNER VALVE
    ATTACHES WITH BRACKET
    BRACKET, ENRICHNER VALVE
    ATTACHES WITH BRACKET
  • 4
    10-89075 SCREW, VALVE TO BRACKET
    ATTACHES WITH BRACKET
    SCREW, VALVE TO BRACKET
    ATTACHES WITH BRACKET
  • 5
    12-20192 WASHER, BRACKET SCREW
    ATTACHES WITH BRACKET
    WASHER, BRACKET SCREW
    ATTACHES WITH BRACKET
  • 6
    22-90275 CONNECTOR, ENRICHNER VALVE - BOTTOM
    ATTACHES WITH BRACKET
    CONNECTOR, ENRICHNER VALVE - BOTTOM
    ATTACHES WITH BRACKET
  • 7
    93573 BRACKET, ENRICHNER VALVE
    BRACKET, ENRICHNER VALVE
  • 8
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, ENRICHNER VALVE BRACKET
    SCREW, (.250-20 x .620) Stainless Steel, ENRICHNER VALVE BRACKET
  • 9
    13-26992 LOCKWASHER, (.250) Stainless Steel, BRACKET SCREW
    LOCKWASHER, (.250) Stainless Steel, BRACKET SCREW
  • 10
    11-20890 NUT, (.250-20), BRACKET SCREW
    NUT, (.250-20), BRACKET SCREW
  • 11
    86-45915 TERMINAL BLOCK, ENRICHNER VALVE LEADS
    TERMINAL BLOCK, ENRICHNER VALVE LEADS
  • 12
    10-69079 SCREW, (#10-16 x .440), TERMINAL BLOCK (7/16")
    SCREW, (#10-16 x .440), TERMINAL BLOCK (7/16")
  • 13
    10-62568 SCREW, (#10-16 x .375), LEADS TO TERMINAL BLOCK (3/8")
    SCREW, (#10-16 x .375), LEADS TO TERMINAL BLOCK (3/8")
  • 14
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 15
    22-59169003 FITTING, TEE
    FITTING, TEE
  • 16
    54-68424 CLAMP, HOSES
    CLAMP, HOSES
  • 17
    32-9912688 TUBING, (36.00 Inches Bulk) (.125 I.D.)
    TUBING, (36.00 Inches Bulk) (.125 I.D.)
  • 18
    32-9938779 HOSE (.077 I.D.)
    HOSE (.077 I.D.)
  • 19
    22-130342 FITTING, TEE (.131 O.D.)
    FITTING, TEE (.131 O.D.)
  • 20
    22-130341 FITTING, TEE (.200 O.D.)
    FITTING, TEE (.200 O.D.)
  • 21
    22-130342 TEE, TEE (.131 O.D.)
    TEE, TEE (.131 O.D.)
  • 22
    22-13033 TEE FITTING, TEE (.200 O.D.)
    TEE FITTING, TEE (.200 O.D.)
