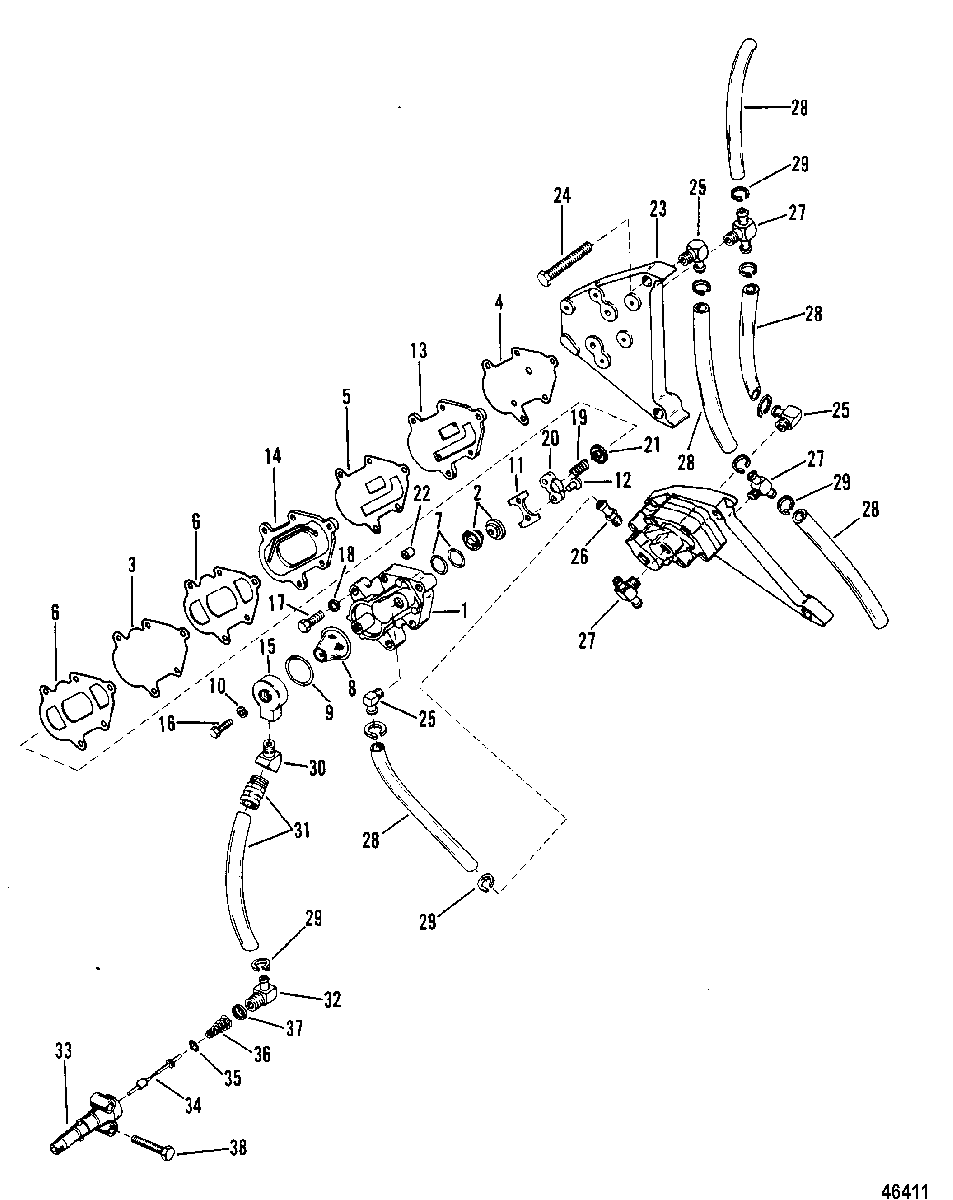

FUEL PUMPS для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    88853A6 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-30430A8 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    89031A2 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 4
    NSS NOT SOLD SEPARATE, FUEL PUMP
    NOT SOLD SEPARATE, FUEL PUMP
  • 5
    NSS NOT SOLD SEPARATE, PULSE CHAMBER
    NOT SOLD SEPARATE, PULSE CHAMBER
  • 6
    NSS NOT SOLD SEPARATE, FUEL PUMP
    NOT SOLD SEPARATE, FUEL PUMP
  • 7
    NSS NOT SOLD SEPARATE, CHECK VALVE TO HOUSING
    NOT SOLD SEPARATE, CHECK VALVE TO HOUSING
  • 8
    35-59072 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 9
    25-35480 O-RING, (1.237 x .103), FUEL INLET COVER
    O-RING, (1.237 x .103), FUEL INLET COVER
  • 10
    NSS NOT SOLD SEPARATE, COVER SCREW
    NOT SOLD SEPARATE, COVER SCREW
  • 11
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 12
    10-43723 SCREW, (#6-32 x .500), RETAINER ATTACHING
    SCREW, (#6-32 x .500), RETAINER ATTACHING
  • 13
    67623 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 14
    86449 CHAMBER, PULSE - FUEL PUMP
    CHAMBER, PULSE - FUEL PUMP
  • 15
    35-91078A1 COVER ASSEMBLY, FUEL FILTER
    COVER ASSEMBLY, FUEL FILTER
  • 16
    10-89766 SCREW, (#10-32 x .620) Stainless Steel, FUEL FILTER COVER (5/8")
    SCREW, (#10-32 x .620) Stainless Steel, FUEL FILTER COVER (5/8")
  • 17
    10-88447 SCREW, (.190-32 x 1.62), FUEL PUMP (1-1/2")
    SCREW, (.190-32 x 1.62), FUEL PUMP (1-1/2")
  • 18
    13-26996 LOCKWASHER, (#10) Stainless Steel, FUEL PUMP SCREW
    LOCKWASHER, (#10) Stainless Steel, FUEL PUMP SCREW
  • 19
    24-86207 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 20
    86026 RETAINER, SPRING
    RETAINER, SPRING
  • 21
    86252 CAP, SPRING END
    CAP, SPRING END
  • 22
    21-42657A3 CHECK VALVE
    CHECK VALVE
  • 23
    90486 BRACKET, FUEL PUMP (STARBOARD)
    BRACKET, FUEL PUMP (STARBOARD)
  • 23
    41156A1 BRACKET, FUEL PUMP (PORT)
    BRACKET, FUEL PUMP (PORT)
  • 24
    10-81516040 SCREW, FUEL PUMP BRACKET
    SCREW, FUEL PUMP BRACKET
  • 25
    22-19688 FITTING, FUEL LINE (90? )
    FITTING, FUEL LINE (90? )
  • 26
    22-64705 FITTING, FUEL LINE (STRAIGHT)
    FITTING, FUEL LINE (STRAIGHT)
  • 27
    22-64706001 TEE, FUEL LINE (TEE)
    TEE, FUEL LINE (TEE)
  • 28
    32-8M0108355 LINE, (57.00 Inches Bulk) (57")
    LINE, (57.00 Inches Bulk) (57")
  • 29
    54-68424 CLAMP, FUEL LINE
    CLAMP, FUEL LINE
  • 30
    22-8M0123050 FITTING, Elbow (45 Degree) , INLET FUEL LINE (45? )
    FITTING, Elbow (45 Degree) , INLET FUEL LINE (45? )
  • 31
    32-89020 LINE, Fuel, INLET (6-3/4")
    LINE, Fuel, INLET (6-3/4")
  • 32
    22-63981 FITTING, CHECK UNIT ADAPTOR (90? )
    FITTING, CHECK UNIT ADAPTOR (90? )
  • 33
    30186 ADAPTOR, CHECK UNIT
    ADAPTOR, CHECK UNIT
  • 34
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 35
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 36
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 37
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 38
    10-76596 SCREW, (.250-20 x 1.250), ADAPTOR LOWER BRACKET
    SCREW, (.250-20 x 1.250), ADAPTOR LOWER BRACKET
  • --
    27-88605A80 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
