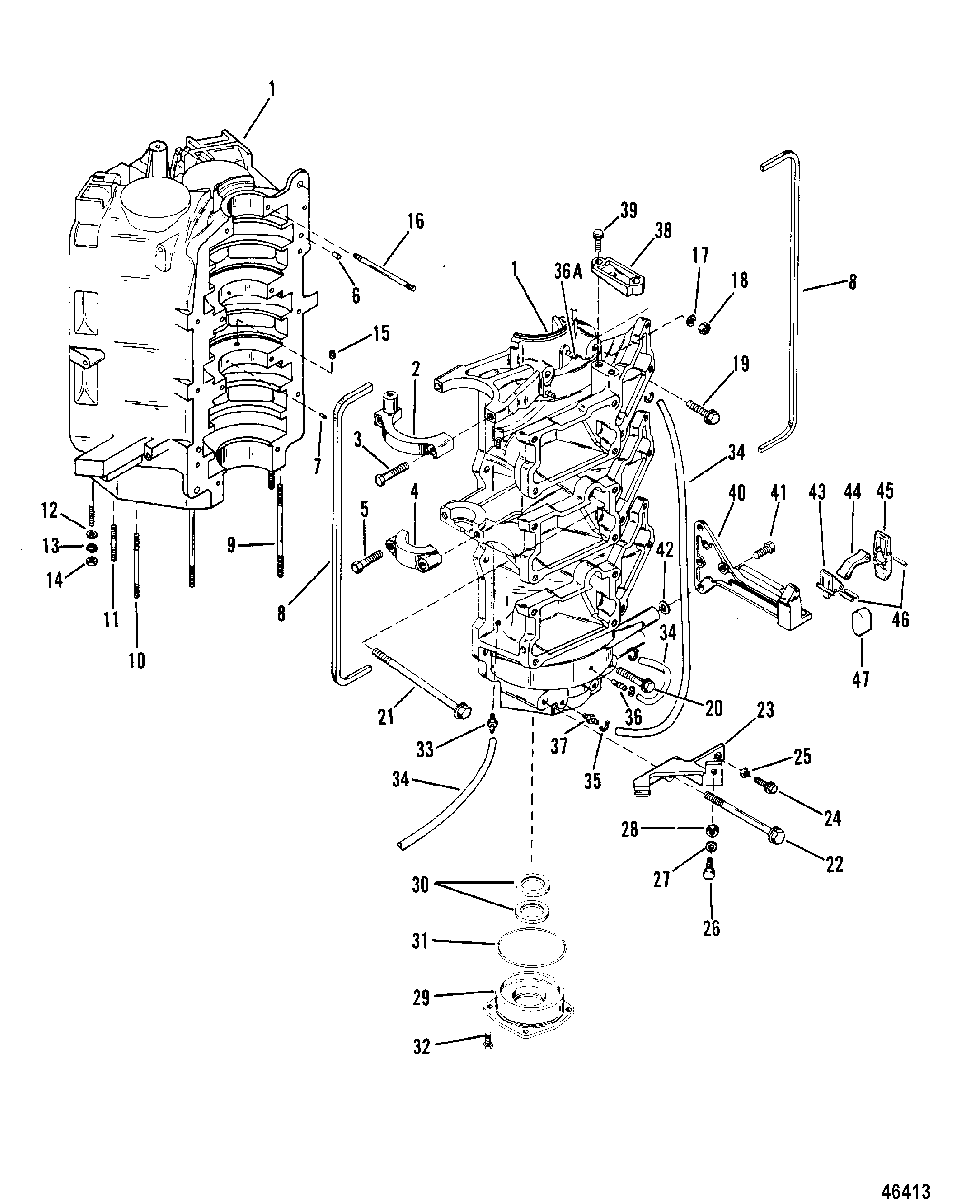

CYLINDER BLOCK AND END CAPS для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    880-9550A13 BLOCK (USE WITH PRESTOLITE STARTER MOTOR)
    BLOCK (USE WITH PRESTOLITE STARTER MOTOR)
  • 1
    880-9550A13 BLOCK (USE WITH BOSCH STARTER MOTOR)
    BLOCK (USE WITH BOSCH STARTER MOTOR)
  • 2
    88486 COVER, STARTER MOTOR - UPPER
    USE WITH PRESTOLITE STARTER MOTOR
    COVER, STARTER MOTOR - UPPER
    USE WITH PRESTOLITE STARTER MOTOR
  • 3
    10-40062153 SCREW, COVER TO CRANKCASE
    USE WITH PRESTOLITE STARTER MOTOR
    SCREW, COVER TO CRANKCASE
    USE WITH PRESTOLITE STARTER MOTOR
  • 4
    88484 COVER, STARTER MOTOR - LOWER
    USE WITH PRESTOLITE STARTER MOTOR
    COVER, STARTER MOTOR - LOWER
    USE WITH PRESTOLITE STARTER MOTOR
  • 5
    10-81516040 SCREW, COVER TO CRANKCASE
    USE WITH PRESTOLITE STARTER MOTOR
    SCREW, COVER TO CRANKCASE
    USE WITH PRESTOLITE STARTER MOTOR
  • 6
    17-40120110 PIN, Dowel, LOCATING
    PIN, Dowel, LOCATING
  • 7
    17-8M0036405 PIN, CYLINDER BLOCK (BEARING RACE)
    PIN, CYLINDER BLOCK (BEARING RACE)
  • 8
    27-53862 GASKET, SEALING
    GASKET, SEALING
  • 9
    16-14137 STUD, CYLINDER BLOCK (162 MM)
    STUD, CYLINDER BLOCK (162 MM)
  • 10
    16-14136 STUD, CYLINDER BLOCK (110 MM)
    STUD, CYLINDER BLOCK (110 MM)
  • 11
    16-910001 STUD, CYLINDER BLOCK (60 MM)
    STUD, CYLINDER BLOCK (60 MM)
  • 12
    12-4002319 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 13
    13-400248 LOCKWASHER, (M10), POWERHEAD STUDS
    LOCKWASHER, (M10), POWERHEAD STUDS
  • 14
    11-400214 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 15
    10-24220 SCREW, (.190-24 x .190), SET, CYLINDER BLOCK
    SCREW, (.190-24 x .190), SET, CYLINDER BLOCK
  • 16
    16-815159 STUD, CYLINDER BLOCK TO CRANKCASE
    STUD, CYLINDER BLOCK TO CRANKCASE
  • 17
    13-400248 LOCKWASHER, (M10), CYLINDER BLOCK STUD
    LOCKWASHER, (M10), CYLINDER BLOCK STUD
  • 18
    11-400214 NUT, CYLINDER BLOCK STUD
    NUT, CYLINDER BLOCK STUD
  • 19
    10-81516235 SCREW, CRANKCASE (35 MM)
    SCREW, CRANKCASE (35 MM)
  • 20
    10-81516290 SCREW, CRANKCASE TO CYLINDER BLOCK (90 MM)
    SCREW, CRANKCASE TO CYLINDER BLOCK (90 MM)
  • 21
    10-815162170 SCREW, CRANKCASE TO CYLINDER BLOCK (171 MM)
    SCREW, CRANKCASE TO CYLINDER BLOCK (171 MM)
  • 22
    10-815162105 SCREW, CRANKCASE TO CYLINDER BLOCK (105 MM)
    SCREW, CRANKCASE TO CYLINDER BLOCK (105 MM)
  • 23
    96839 BRACKET, CABLE ANCHOR
    BRACKET, CABLE ANCHOR
  • 24
    10-40010127 SCREW, BRACKET TO CRANKCASE
    SCREW, BRACKET TO CRANKCASE
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel, BRACKET SCREW
    LOCKWASHER, (.250) Stainless Steel, BRACKET SCREW
  • 26
    10-78841 SCREW, (.312-24 x 1.500), SHIFT CABLE TO BRACKET
    SCREW, (.312-24 x 1.500), SHIFT CABLE TO BRACKET
  • 27
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, SHIFT CABLE SCREW
    WASHER, (.323 x .563 x .063) Stainless Steel, SHIFT CABLE SCREW
  • 28
    11-82670911 NUT, (.312-24) Stainless Steel, SHIFT CABLE SCREW
    NUT, (.312-24) Stainless Steel, SHIFT CABLE SCREW
  • 29
    1166-8792A1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 30
    26-54815 SEAL, Oil, END CAP
    SEAL, Oil, END CAP
  • 31
    25-88955 O-RING, END CAP
    O-RING, END CAP
  • 32
    10-40011149 SCREW, END CAP ATTACHING
    SCREW, END CAP ATTACHING
  • 33
    21-426585 CHECK VALVE, BLEED HOSE
    STRAIGHT-THREADED
    CHECK VALVE, BLEED HOSE
    STRAIGHT-THREADED
  • 34
    32-9912688 TUBING, (36.00 Inches Bulk)
    TUBING, (36.00 Inches Bulk)
  • 35
    54-68424 CLAMP, TUBING
    CLAMP, TUBING
  • 36
    22-56759 FITTING, Barbed, BLEED HOSE (PRESS-IN)
    FITTING, Barbed, BLEED HOSE (PRESS-IN)
  • 36A
    22-13035002 FITTING, BLEED HOSE (PRESS-IN)
    FITTING, BLEED HOSE (PRESS-IN)
  • 37
    21-428641 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 38
    887821 BRACKET, FLYWHEEL COVER - FRONT
    BRACKET, FLYWHEEL COVER - FRONT
  • 39
    10-40062127 SCREW, BRACKET TO CRANKCASE
    SCREW, BRACKET TO CRANKCASE
  • 40
    96850 BRACKET, ANCHOR - CONTROL CABLES
    EARLY MODELS
    BRACKET, ANCHOR - CONTROL CABLES
    EARLY MODELS
  • 41
    10-53167T SCREW, (.312-18 x .880), ANCHOR BRACKET
    EARLY MODELS
    SCREW, (.312-18 x .880), ANCHOR BRACKET
    EARLY MODELS
  • 42
    12-814806 WASHER, ANCHOR BRACKET SCREW
    EARLY MODELS
    WASHER, ANCHOR BRACKET SCREW
    EARLY MODELS
  • 43
    87609A1 LEVER, SHIFT CABLE LOCKING
    EARLY MODELS
    LEVER, SHIFT CABLE LOCKING
    EARLY MODELS
  • 44
    87609A1 LINK, LEVER TO COVER
    EARLY MODELS
    LINK, LEVER TO COVER
    EARLY MODELS
  • 45
    90211 COVER, SHIFT CABLE
    EARLY MODELS
    COVER, SHIFT CABLE
    EARLY MODELS
  • 46
    17-47175 PIN, LEVER AND COVER
    EARLY MODELS
    PIN, LEVER AND COVER
    EARLY MODELS
  • 47
    39519 CUP, BARREL RETAINER
    EARLY MODELS
    CUP, BARREL RETAINER
    EARLY MODELS
  • --
    19581A89 POWERHEAD ASSEMBLY (Prestolite Starter Motor)
    INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTIONG RODS AND BEARINGS, ETC.
    POWERHEAD ASSEMBLY (Prestolite Starter Motor)
    INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTIONG RODS AND BEARINGS, ETC.
  • --
    19581A89 POWERHEAD ASSEMBLY (Bosch Starter Motor)
    INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING RODS AND BEARINGS, ETC.
    POWERHEAD ASSEMBLY (Bosch Starter Motor)
    INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING RODS AND BEARINGS, ETC.
  • --
    27-88605A80 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
