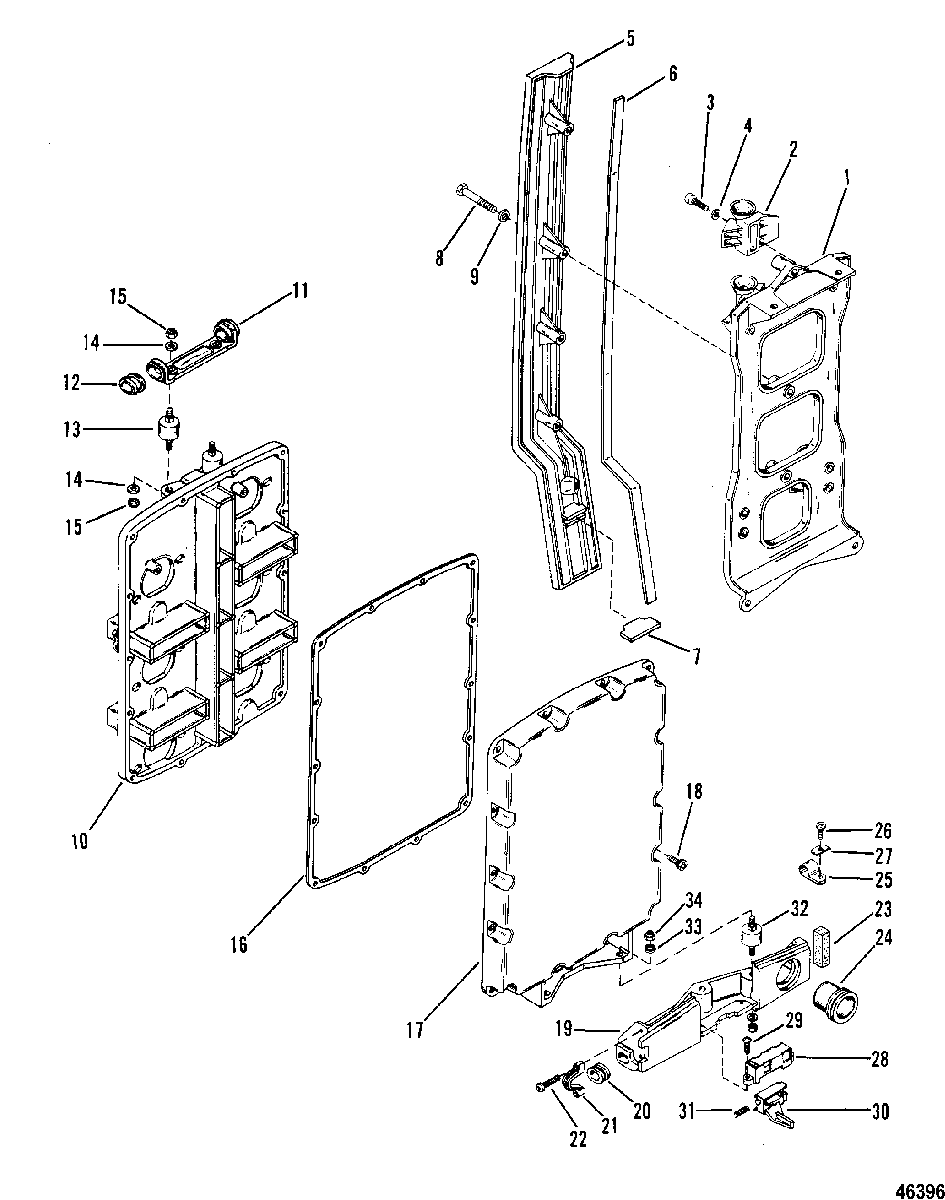

SOUND ATTENUATOR AND COWL BRACKET для Mercury - 300 (3.4 LITRE) 5611648 & Up

  • №
    Артикул
    Название
  • 1
    883644 BRACKET, COWL SUPPORT
    BRACKET, COWL SUPPORT
  • 2
    85651 HOUSING, COWL HINGE (PORT)
    HOUSING, COWL HINGE (PORT)
  • 2
    85650 HOUSING, COWL HINGE (STARBOARD)
    HOUSING, COWL HINGE (STARBOARD)
  • 3
    10-76621 SCREW, COWL HINGE HOUSING
    SCREW, COWL HINGE HOUSING
  • 4
    12-20583 WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 5
    88361T BRACKET, REAR COWL
    BRACKET, REAR COWL
  • 6
    14900A1 SEAL, REAR COWL BRACKET
    SEAL, REAR COWL BRACKET
  • 7
    88356 SEAL, REAR COWL BRACKET
    SEAL, REAR COWL BRACKET
  • 8
    10-4000335 SCREW, (M6 x 50), REAR COWL BRACKET
    SCREW, (M6 x 50), REAR COWL BRACKET
  • 9
    12-4002315 WASHER, (6.60 X 12.5 X 1.5 mm -SS), REAR COWL BRACKET SCREW
    WASHER, (6.60 X 12.5 X 1.5 mm -SS), REAR COWL BRACKET SCREW
  • 10
    13944A1 PLATE, SOUND ATTENUATOR
    PLATE, SOUND ATTENUATOR
  • 11
    67245T BRACKET, COWL MOUNTING (UPPER)
    BRACKET, COWL MOUNTING (UPPER)
  • 12
    25-67272 GROMMET, COWL MOUNTING BRACKET
    GROMMET, COWL MOUNTING BRACKET
  • 13
    90435 MOUNT
    MOUNT
  • 14
    12-21249 WASHER, MOUNT
    WASHER, MOUNT
  • 15
    11-8267089 NUT, (.250-28), MOUNT
    NUT, (.250-28), MOUNT
  • 16
    27-898192 GASKET, PLATE
    GASKET, PLATE
  • 17
    13944A1 COVER, SOUND ATTENUATOR
    COVER, SOUND ATTENUATOR
  • 18
    10-40062127 SCREW, COVER
    SCREW, COVER
  • 19
    96854T BRACKET, COWL SUPPORT - FRONT
    BRACKET, COWL SUPPORT - FRONT
  • 20
    25-67272 GROMMET, FRONT BRACKET
    GROMMET, FRONT BRACKET
  • 21
    88621 RETAINER, CABLE
    RETAINER, CABLE
  • 22
    10-34994 SCREW, (#10-32 x 1.00) Stainless Steel, RETAINER TO FRONT BRACKET
    SCREW, (#10-32 x 1.00) Stainless Steel, RETAINER TO FRONT BRACKET
  • 23
    88357 SEAL, FRONT BRACKET
    SEAL, FRONT BRACKET
  • 24
    88352 BOOT, FUEL ADAPTOR
    BOOT, FUEL ADAPTOR
  • 25
    54-26550 CLAMP, FRONT BRACKET
    CLAMP, FRONT BRACKET
  • 26
    10-78291 SCREW, (.190-24 x .500), CLIP
    SCREW, (.190-24 x .500), CLIP
  • 27
    8M0084613 C WASHER, CLIP SCREW
    C WASHER, CLIP SCREW
  • 28
    67241 HOUSING, COWL LATCH
    HOUSING, COWL LATCH
  • 29
    10-92051 SCREW, (10-16 x .75), HOUSING TO FRONT BRACKET
    SCREW, (10-16 x .75), HOUSING TO FRONT BRACKET
  • 30
    76264 LATCH
    LATCH
  • 31
    24-85367 SPRING, COWL LATCH
    SPRING, COWL LATCH
  • 32
    90435 MOUNT
    MOUNT
  • 33
    12-21249 WASHER, MOUNT
    WASHER, MOUNT
  • 34
    11-8267089 NUT, (.250-28), MOUNT
    NUT, (.250-28), MOUNT
  • --
    27-88605A80 GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
