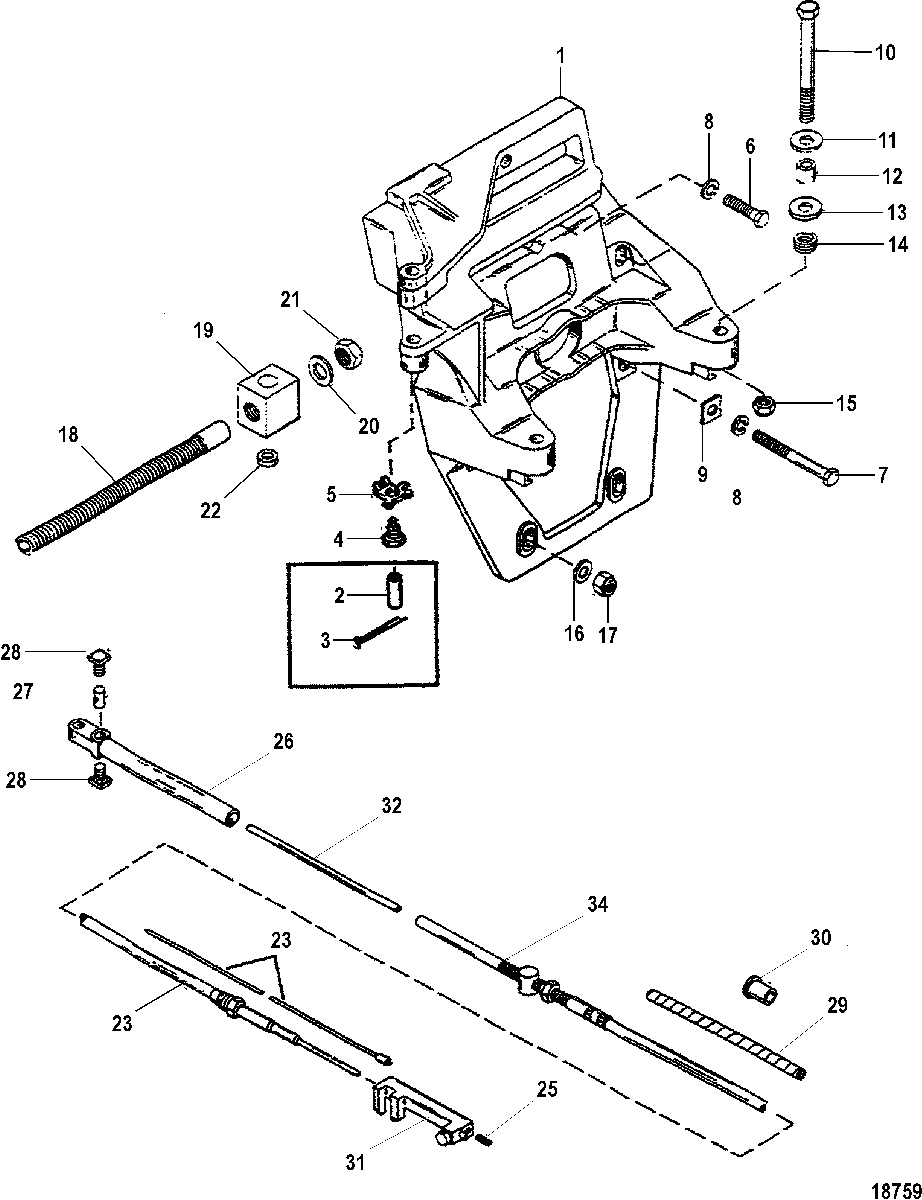

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • 1
    8M0138839 PLATE ASSEMBLY, Transom
    PLATE ASSEMBLY, Transom
  • 2
    17-99938 PIN, SWIVEL BLOCK (EARLY MODELS)
    PIN, SWIVEL BLOCK (EARLY MODELS)
  • 3
    18-36377 COTTER PIN, RETAINING PIN (EARLY MODELS)
    COTTER PIN, RETAINING PIN (EARLY MODELS)
  • 4
    10-8M0113173 BOLT, SWIVEL BLOCK (LATER MODELS)
    BOLT, SWIVEL BLOCK (LATER MODELS)
  • 5
    14-42254 WASHER, PIVOT BOLT (LATER MODELS)
    WASHER, PIVOT BOLT (LATER MODELS)
  • 6
    10-37269 SCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSING
    SCREW, (.437-14 x 2.00), TRANSOM PLATE TO GIMBAL HOUSING
  • 7
    10-37268 SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING
    SCREW, (.437-14 x 4.250), TRANSOM PLATE TO GIMBAL HOUSING
  • 8
    13-32993 LOCKWASHER, (.437), TRANSOM PLATE SCREW
    LOCKWASHER, (.437), TRANSOM PLATE SCREW
  • 9
    12-37271 WASHER, SQUARE - TRANSOM PLATE SCREW
    WASHER, SQUARE - TRANSOM PLATE SCREW
  • 10
    10-97934 SCREW, (.500-20 x 5.370) Special, TRANSOM PLATE TO FLYWHEEL HOUSING
    SCREW, (.500-20 x 5.370) Special, TRANSOM PLATE TO FLYWHEEL HOUSING
  • 11
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum, TRANSOM PLATE SCREW
    WASHER, (.5156 x 1.375 x .125) Aluminum, TRANSOM PLATE SCREW
  • 12
    23-99299 SPACER, (.520 x .870 x .630), TRANSOM PLATE SCREW
    SPACER, (.520 x .870 x .630), TRANSOM PLATE SCREW
  • 13
    12-32834 WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW (EARLY MODELS)
    WASHER, (.9375 x 1.750 x .172), TRANSOM PLATE SCREW (EARLY MODELS)
  • 14
    13-33734 LOCKWASHER, (.500), TRANSOM PLATE SCREW
    LOCKWASHER, (.500), TRANSOM PLATE SCREW
  • 15
    11-863332 NUT, (.500-20), TRANSOM PLATE SCREW
    NUT, (.500-20), TRANSOM PLATE SCREW
  • 16
    12-21900 WASHER, GIMBAL HOUSING BOLT
    WASHER, GIMBAL HOUSING BOLT
  • 17
    11-34087 NUT, GIMBAL HOUSING BOLT
    NUT, GIMBAL HOUSING BOLT
  • 18
    96400 TUBE, Steering (NON POWER STEERING)
    TUBE, Steering (NON POWER STEERING)
  • 19
    95846 SWIVEL BLOCK (NON POWER STEERING)
    SWIVEL BLOCK (NON POWER STEERING)
  • 20
    12-37985 WASHER, STEERING TUBE (NON POWER STEERING)
    WASHER, STEERING TUBE (NON POWER STEERING)
  • 21
    11-8M0041651 NUT, (.875-14), STEERING TUBE (NON POWER STEERING)
    NUT, (.875-14), STEERING TUBE (NON POWER STEERING)
  • 22
    23-95803 BUSHING, BLOCK (NON POWER STEERING)
    BUSHING, BLOCK (NON POWER STEERING)
  • 23
    865436A02 CABLE ASSEMBLY, Shift
    CABLE ASSEMBLY, Shift
  • 25
    10-31700 SCREW, (.250-28 x .750), SHIFT CABLE
    SCREW, (.250-28 x .750), SHIFT CABLE
  • -
    43433A01 GUIDE KIT
    GUIDE KIT
  • 26
    43433 GUIDE, SHIFT CABLE
    GUIDE, SHIFT CABLE
  • 27
    43436 ANCHOR, SHIFT CABLE
    ANCHOR, SHIFT CABLE
  • 28
    10-20518 SET SCREW, (#8-32), ANCHOR
    SET SCREW, (#8-32), ANCHOR
  • 29
    38473 WRAPPING, Spiral, SHIFT CABLE
    WRAPPING, Spiral, SHIFT CABLE
  • 30
    14705 INSERT, NYLON - SHIFT CABLE
    INSERT, NYLON - SHIFT CABLE
  • 31
    865436A02 SLIDE, SHIFT CABLE
    SLIDE, SHIFT CABLE
  • 32
    32-38377 TUBE, SHIFT CABLE (EARLY MODELS ONLY)
    TUBE, SHIFT CABLE (EARLY MODELS ONLY)
  • -
    10-97934A1 BOLT KIT
    BOLT KIT
  • -
    865436A03 CABLE KIT, Shift
    CABLE KIT, Shift
