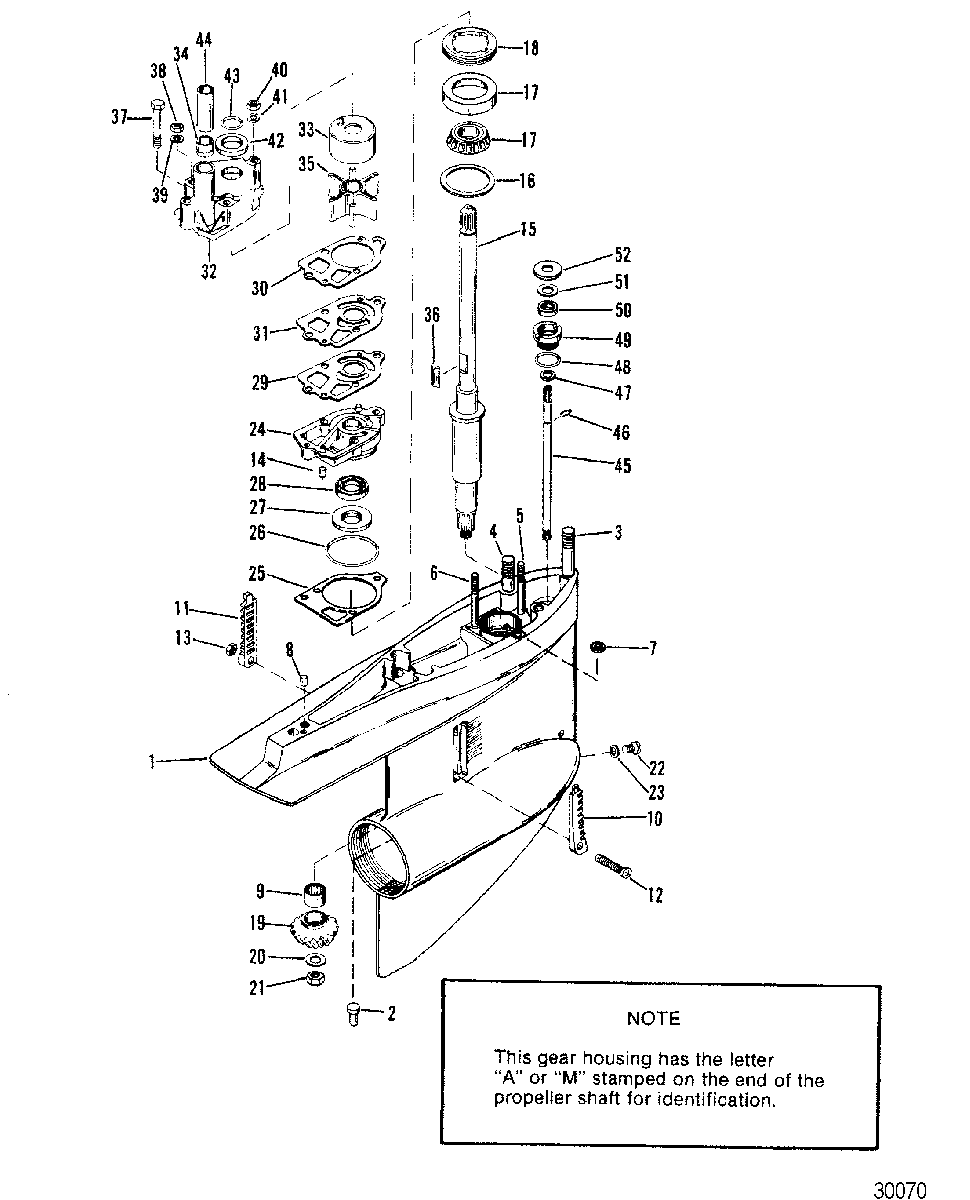

GEAR HOUSING(DRIVESHAFT) - MR для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • --
    1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETE (BLACK)
    GEAR HOUSING ASSEMBLY, COMPLETE (BLACK)
  • 1
    1623-8951A37 GEAR HOUSING ASSEMBLY (BLACK)
    GEAR HOUSING ASSEMBLY (BLACK)
  • 2
    17-379721 PIN
    PIN
  • 3
    16-46911 STUD (3-3/16 inch)
    STUD (3-3/16 inch)
  • 4
    16-56298 STUD (1-31/32 inch)
    STUD (1-31/32 inch)
  • 5
    16-8M0034463 STUD, (.312-18/.324-24 x 3.380)
    STUD, (.312-18/.324-24 x 3.380)
  • 6
    16-69501 STUD (3-1/4 inch)
    STUD (3-1/4 inch)
  • 7
    26-455771 SEAL
    See Note 1
    SEAL
    See Note 1
  • 8
    17-8M0084627 PIN, Dowel
    PIN, Dowel
  • 9
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 10
    934231 INSERT (STARBOARD) (BLACK)
    INSERT (STARBOARD) (BLACK)
  • 11
    934241 INSERT (PORT) (BLACK)
    INSERT (PORT) (BLACK)
  • 12
    10-76156 SCREW, (#10-32 x 1.88)
    SCREW, (#10-32 x 1.88)
  • 13
    11-859124 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 14
    17-42836 PIN, Groove
    PIN, Groove
  • 15
    45-8M0140438 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 16
    15-8M0063267 SHIM SET
    SHIM SET
  • 17
    31-36387A1 BEARING, Roller
    BEARING, Roller
  • 18
    8245191 RETAINER
    RETAINER
  • 19
    43-878087A4 GEAR SET (INCLUDES PINION AND FORWARD GEARS)
    GEAR SET (INCLUDES PINION AND FORWARD GEARS)
  • 20
    12-92721 WASHER
    WASHER
  • 21
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 22
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 23
    12-191833 WASHER
    (Component of Drive Shaft Housing Seal Kit 26-32511A) See Note 1
    WASHER
    (Component of Drive Shaft Housing Seal Kit 26-32511A) See Note 1
  • 24
    46-44292A3 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 25
    27-426311 GASKET
    GASKET
  • 26
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 26
    25-38099 O-RING (2.109 I.D.)
    O-RING (2.109 I.D.)
  • 27
    26-89238 SEAL, Oil
    SEAL, Oil
  • 28
    26-16977 SEAL, Oil
    SEAL, Oil
  • 29
    27-8M0090319 GASKET, LOWER
    See Note 1
    GASKET, LOWER
    See Note 1
  • 30
    27-858524 GASKET, UPPER
    See Note 1
    GASKET, UPPER
    See Note 1
  • 31
    324351 FACE PLATE
    See Note 1
    FACE PLATE
    See Note 1
  • 32
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 33
    48752T INSERT
    INSERT
  • 34
    26-38970 SEAL, RUBBER
    SEAL, RUBBER
  • 35
    47-89984T4 IMPELLER
    See Note 1
    IMPELLER
    See Note 1
  • 36
    28-8M0032834 KEY
    See Note 1
    KEY
    See Note 1
  • 37
    10-96411 SCREW, (#14-8 x 2.25)
    SCREW, (#14-8 x 2.25)
  • 38
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 39
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 40
    11-13436 NUT (5/16-24)
    NUT (5/16-24)
  • 41
    12-36001 WASHER
    WASHER
  • 42
    25-30271 RING, Rubber
    (Component of Water Pump Impeller Kit 47-89984T5)
    RING, Rubber
    (Component of Water Pump Impeller Kit 47-89984T5)
  • 43
    25-30613 O-RING, UPPER
    (Component of Water Pump Impeller Kit 47-89984T5)
    O-RING, UPPER
    (Component of Water Pump Impeller Kit 47-89984T5)
  • 44
    23-29804T SLEEVE, GUIDE
    (Component of Water Pump Impeller Kit 47-89984T5)
    SLEEVE, GUIDE
    (Component of Water Pump Impeller Kit 47-89984T5)
  • 45
    774811 SHIFT SHAFT
    SHIFT SHAFT
  • 46
    53-29641 E RING
    E RING
  • 47
    12-27880 WASHER
    WASHER
  • 48
    25-25439 O-RING, (.862 x .103)
    O-RING, (.862 x .103)
  • 49
    23-8M0112749 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 50
    26-892361 SEAL, Oil
    SEAL, Oil
  • 51
    12-31266 WASHER, RUBBER
    WASHER, RUBBER
  • 52
    12-8M0042641 WASHER, (.390 x 1.00 x .06)
    WASHER, (.390 x 1.00 x .06)
  • -
    26-33144A2 SEAL KIT
    SEAL KIT
  • -
    26-32511A1 SEAL KIT
    SEAL KIT
  • -
    46-96148A8 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • -
    43-878087A4 GEAR SET
    GEAR SET
  • -
    31-803090T1 BEARING AND SEAL KIT
    BEARING AND SEAL KIT
  • -
    43-803091T1 REPAIR KIT, Lower Unit
    REPAIR KIT, Lower Unit
  • -
    46-44292A3 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • -
    47-89984T5 IMPELLER KIT, Water Pump
    IMPELLER KIT, Water Pump
