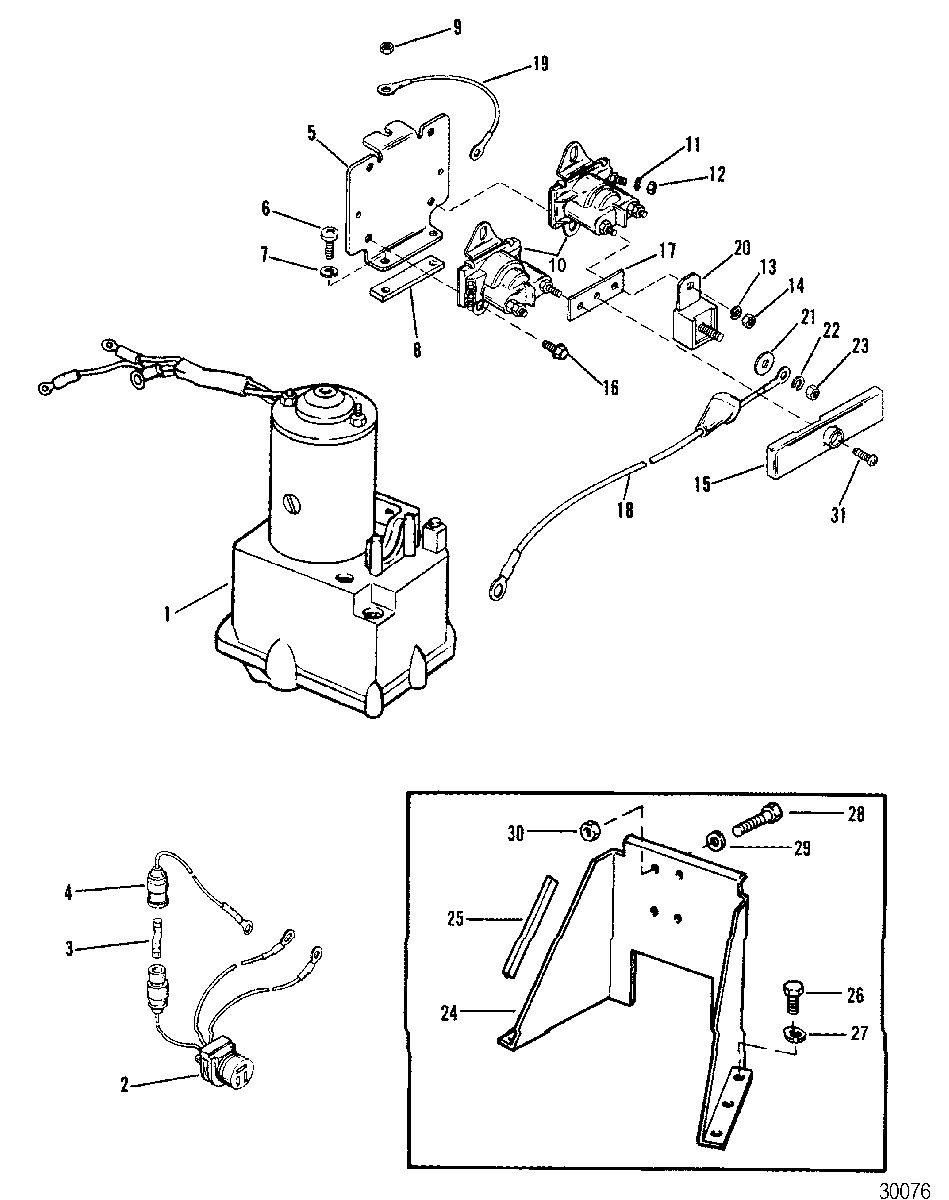

HYDRAULIC PUMP AND BRACKET PRETOLITE PUMP для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • 1
    865380A25 PUMP ASSEMBLY, Trim (PLASTIC RESERVOIR)
    PUMP ASSEMBLY, Trim (PLASTIC RESERVOIR)
  • 2
    84-79147A3 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 3
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 4
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 5
    94279 BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 6
    10-48060 SCREW, (.250-14 x .625), MOUNTING BRACKET TO HYDRAULIC PUMP
    SCREW, (.250-14 x .625), MOUNTING BRACKET TO HYDRAULIC PUMP
  • 7
    13-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
    LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
  • 8
    23-96784 SPACER, MOUNTING BRACKET SCREW
    SPACER, MOUNTING BRACKET SCREW
  • 9
    11-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
    NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
  • 10
    89-96158T SOLENOID, TRIM PUMP
    SOLENOID, TRIM PUMP
  • 11
    13-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
  • 12
    11-26419 NUT, (#8-32) Brass, SOLENOID TERMINAL
    NUT, (#8-32) Brass, SOLENOID TERMINAL
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
  • 14
    11-94330 NUT, (.250-20) Brass, SOLENOID TERMINAL
    NUT, (.250-20) Brass, SOLENOID TERMINAL
  • 15
    85-861680 INSULATOR, STARTER SOLENOID TERMINAL
    INSULATOR, STARTER SOLENOID TERMINAL
  • 16
    10-41508 SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID TO MOUNTING BRACKET
    SCREW, (.250-20 x .500) Stainless Steel, STARTER SOLENOID TO MOUNTING BRACKET
  • 17
    94275 LINK, SOLENOID TO SOLENOID
    LINK, SOLENOID TO SOLENOID
  • 18
    84-79139A12 CABLE ASSEMBLY, Red-Positive
    CABLE ASSEMBLY, Red-Positive
  • 18
    84-79138A1 CABLE ASSEMBLY (NEGATIVE)
    CABLE ASSEMBLY (NEGATIVE)
  • 19
    84-86322A15 CABLE ASSEMBLY, (5.50 Inches) Black, STARTER SOLENOID
    CABLE ASSEMBLY, (5.50 Inches) Black, STARTER SOLENOID
  • 20
    88-79023T10 FUSE ASSEMBLY, 110 Ampere
    FUSE ASSEMBLY, 110 Ampere
  • 21
    12-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
    WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
  • 22
    13-26992 LOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL
    LOCKWASHER, (.250) Stainless Steel, FUSE TERMINAL
  • 23
    11-21825 NUT, (.250-28), FUSE TERMINAL
    NUT, (.250-28), FUSE TERMINAL
  • 24
    862548A1 BRACKET KIT, MOUNTING - HYD. PUMP
    (FLOOR MOUNTED)
    BRACKET KIT, MOUNTING - HYD. PUMP
    (FLOOR MOUNTED)
  • 25
    58491 CHANNEL, Rubber (4.00 Inches), PUMP MOUNTING BRACKET
    CHANNEL, Rubber (4.00 Inches), PUMP MOUNTING BRACKET
  • 26
    10-59784 SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1 inch)
    SCREW, (.250-10 x 1.00), PUMP MOUNTING BRACKET ATTACHING (1 inch)
  • 27
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, PUMP MOUNTING BRACKET SCREW
  • 28
    10-35386 SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET
    SCREW, (.312-18 x 1.00), HYDRAULIC PUMP TO MOUNTING BRACKET
  • 29
    13-39107 LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW
    LOCKWASHER, (.312-24), HYDRAULIC PUMP SCREW
  • 30
    11-21908 NUT, (.312-18) Cad Plated, HYDRAULIC PUMP SCREW
    NUT, (.312-18) Cad Plated, HYDRAULIC PUMP SCREW
  • 31
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, BOOT ATTACHING
    SCREW, (#10-16 x .625) Stainless Steel, BOOT ATTACHING
