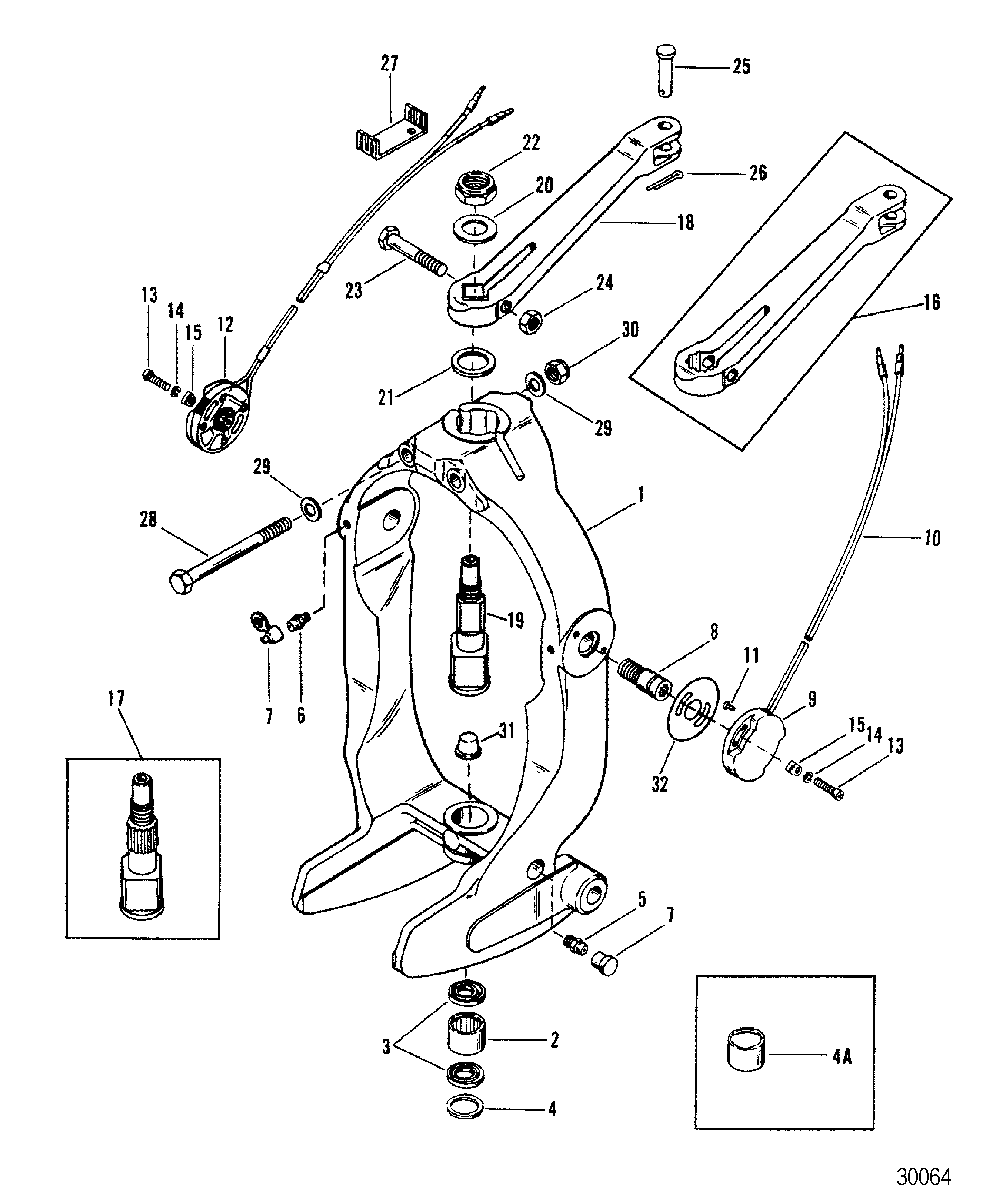

GIMBAL RING AND STEERING LEVER для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • -
    94993A12 GIMBAL RING KIT, With Upper Swivel Shaft (use with square steering arm)
    GIMBAL RING KIT, With Upper Swivel Shaft (use with square steering arm)
  • -
    88302A1 GIMBAL RING KIT, With Upper Swivel Shaft (use with spline steering arm)
    GIMBAL RING KIT, With Upper Swivel Shaft (use with spline steering arm)
  • 1
    94993A7 GIMBAL RING ASSEMBLY (BLACK)
    GIMBAL RING ASSEMBLY (BLACK)
  • 2
    31-32538 BEARING, GIMBAL RING (OLD DESIGN)
    BEARING, GIMBAL RING (OLD DESIGN)
  • 3
    26-32541 SEAL, Oil, GIMBAL RING (OLD DESIGN)
    SEAL, Oil, GIMBAL RING (OLD DESIGN)
  • 4
    23-39273 SPACER, GIMBAL RING (OLD DESIGN)
    SPACER, GIMBAL RING (OLD DESIGN)
  • 4A
    23-99352 BEARING, GIMBAL RING (NYLON) (NEW DESIGN)
    BEARING, GIMBAL RING (NYLON) (NEW DESIGN)
  • 5
    22-69059 FITTING, GIMBAL RING (1/8-27)
    FITTING, GIMBAL RING (1/8-27)
  • 6
    22-74036 FITTING, Grease, GIMAB RING (1/4-28)
    FITTING, Grease, GIMAB RING (1/4-28)
  • 7
    19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING
    LUBRICAP, GIMBAL RING GREASE FITTING
  • 8
    77123 PIN, Hinge, THREADED (WITH GREASE GROOVE)
    PIN, Hinge, THREADED (WITH GREASE GROOVE)
  • 9
    64947 SENDER, DUMMY (STARBOARD) (BLACK)
    SENDER, DUMMY (STARBOARD) (BLACK)
  • 10
    84-19216 HARNESS ASSEMBLY, DUMMY SENDER (STARBOARD)
    HARNESS ASSEMBLY, DUMMY SENDER (STARBOARD)
  • 11
    10-46942 SCREW, (#6-20 x .3125), HARNESS ATTACHING (STARBOARD)
    SCREW, (#6-20 x .3125), HARNESS ATTACHING (STARBOARD)
  • 12
    805320A03 SWITCH ASSEMBLY, TRIM LIMIT - PORT (BLACK)
    NLA- ORDER 805320A 1
    SWITCH ASSEMBLY, TRIM LIMIT - PORT (BLACK)
    NLA- ORDER 805320A 1
  • 13
    10-37978 SCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING
    SCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING
  • 14
    13-26996 LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW
    LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW
  • 15
    57008 RETAINER, SWITCH AND SENDER SCREW
    RETAINER, SWITCH AND SENDER SCREW
  • 16
    94991A1 LEVER ASSEMBLY, Steering (SQUARE/SPLINED SWIVEL SHAFT)
    LEVER ASSEMBLY, Steering (SQUARE/SPLINED SWIVEL SHAFT)
  • 17
    88302A2 SHAFT, UPPER SWITCH (SQUARE/SPLINED SWIVEL SHAFT)
    SHAFT, UPPER SWITCH (SQUARE/SPLINED SWIVEL SHAFT)
  • 18
    866322A01 LEVER ASSEMBLY (SQUARE SWIVEL SHAFT)
    LEVER ASSEMBLY (SQUARE SWIVEL SHAFT)
  • 19
    98230A1 SHAFT ASSEMBLY, UPPER SWIVEL (SQUARE SWIVEL SHAFT)
    SHAFT ASSEMBLY, UPPER SWIVEL (SQUARE SWIVEL SHAFT)
  • 20
    12-85344 WASHER, (.750 Inside Diameter)
    WASHER, (.750 Inside Diameter)
  • 21
    12-32997 WASHER (SPLINED SWIVEL SHAFT)
    WASHER (SPLINED SWIVEL SHAFT)
  • 21
    12-98548 WASHER, (1.125 ) (SQUARE SWIVEL SHAFT)
    WASHER, (1.125 ) (SQUARE SWIVEL SHAFT)
  • 22
    11-8M2014641 NUT, (.750-16), UPPER SWIVEL SHAFT
    NUT, (.750-16), UPPER SWIVEL SHAFT
  • 23
    10-807204 SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT
    SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT
  • 24
    11-8M2008293 NUT, (.437-20), STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
    NUT, (.437-20), STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
  • 25
    17-52798 PIN, Clevis, CABLE TO STEERING LEVER (NON POWER STEERING)
    PIN, Clevis, CABLE TO STEERING LEVER (NON POWER STEERING)
  • 26
    18-46950 COTTER PIN (NON POWER STEERING)
    COTTER PIN (NON POWER STEERING)
  • 27
    79146 RETAINER, CONNECTOR, TRIM LIMIT LEADS
    RETAINER, CONNECTOR, TRIM LIMIT LEADS
  • 28
    10-88432 SCREW, (.375-24 x 4.00), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10
    SCREW, (.375-24 x 4.00), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10
  • 28
    10-90126 SCREW, (.375-24 x 3.750), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10
    SCREW, (.375-24 x 3.750), GIMBAL RING SEE DRIVE UNIT CHART REF. #'S 1-10
  • 29
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, GIMBAL RING SCREW
    WASHER, (.406 x .734 x .063) Stainless Steel, GIMBAL RING SCREW
  • 30
    11-862903 NUT, (.375-24), GIMBAL RING SCREW
    NUT, (.375-24), GIMBAL RING SCREW
  • 31
    19-90887 PLUG, UPPER SWIVEL SHAFT
    PLUG, UPPER SWIVEL SHAFT
  • 32
    85-63990 INSULATOR, TRIM LIMIT SWITCH
    INSULATOR, TRIM LIMIT SWITCH
  • -
    805320A03 SWITCH ASSEMBLY (BLACK)
    SWITCH ASSEMBLY (BLACK)
  • -
    805130A6 SENDER KIT, Dual Station (BLACK)
    SENDER KIT, Dual Station (BLACK)
