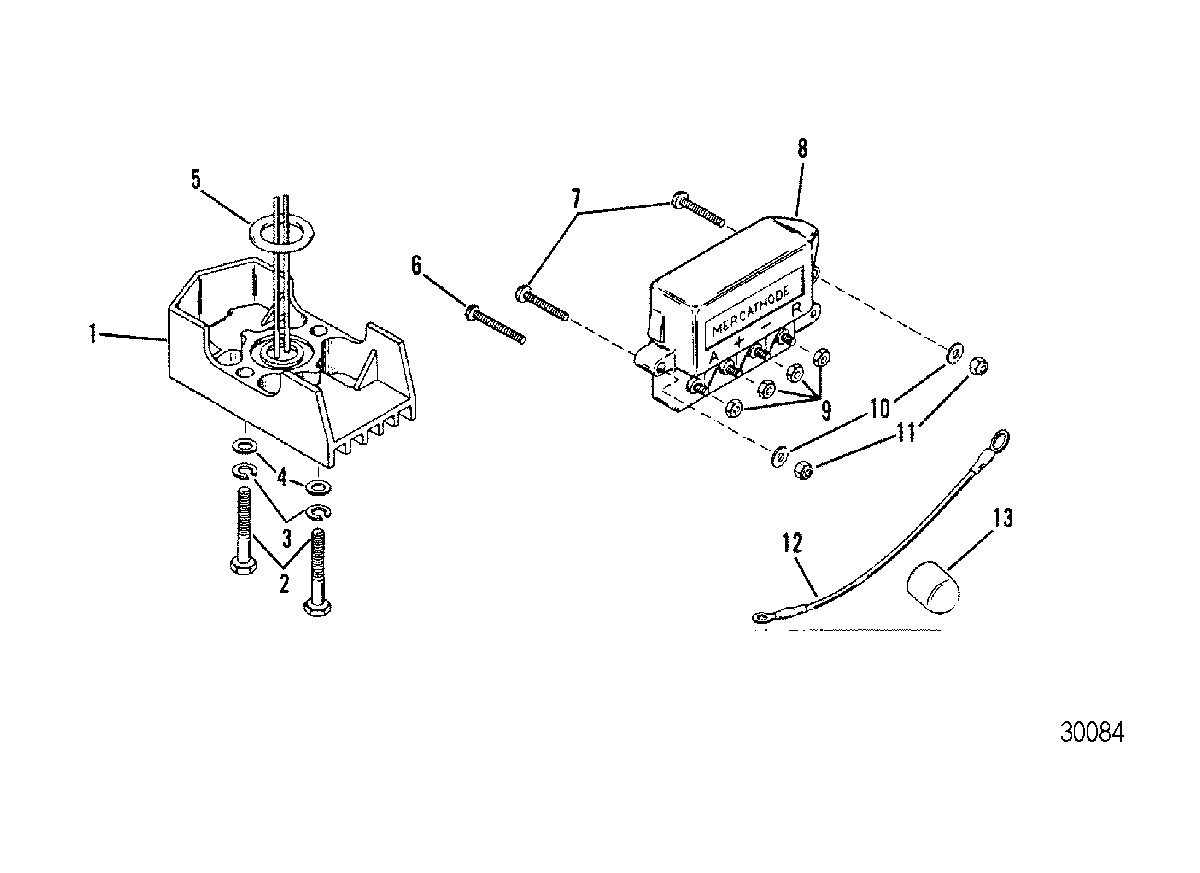

MERCATHODE KIT для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • 1
    8M0085692 ELECTRODE ASSEMBLY (BLACK)
    ELECTRODE ASSEMBLY (BLACK)
  • 1
    8M0085693 MERCATHODE SYSTEM (OYSTER)
    MERCATHODE SYSTEM (OYSTER)
  • 2
    10-69067 SCREW, (.250-20 x 1.375), ELECTRODE
    SCREW, (.250-20 x 1.375), ELECTRODE
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel, ELECTRODE SCREW
    LOCKWASHER, (.250) Stainless Steel, ELECTRODE SCREW
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, ELECTRODE SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, ELECTRODE SCREW
  • 5
    25-88388 O-RING
    O-RING
  • 6
    10-72202 SCREW, (#10-32 x 1.25)
    SCREW, (#10-32 x 1.25)
  • 7
    10-24637 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 8
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 9
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 10
    12-21273 WASHER
    WASHER
  • 11
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 12
    84-88543A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 13
    44574T CAP
    CAP
