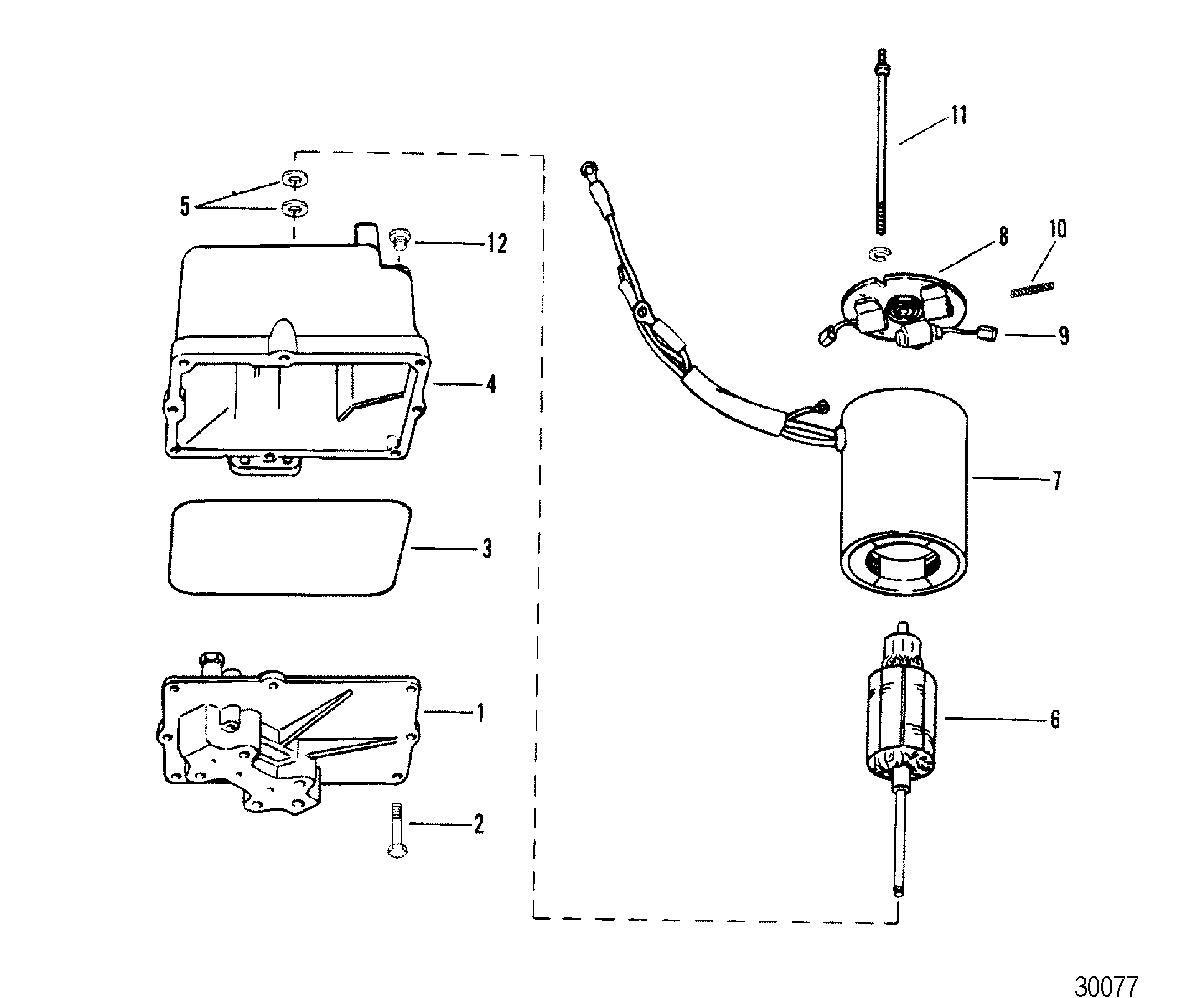

HYDRAULIC PUMP PRESTOLITE PUMP для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • --
    865380A25 PUMP ASSEMBLY, Trim
    PUMP ASSEMBLY, Trim
  • 1
    865380A25 VALVE BODY AND GEAR ASSEMLBY
    VALVE BODY AND GEAR ASSEMLBY
  • 2
    10-69570 SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR
    SCREW, (#10-16 x .750), VALVE BODY TO RESERVOIR
  • 3
    392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEAR
    SEAL, RESERVOIR TO VALVE BODY AND GEAR
  • 4
    392-7731 RESEROVIR ASSEMBLY (PLASTIC)
    RESEROVIR ASSEMBLY (PLASTIC)
  • 5
    392-7732 WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 6
    865380A25 ARMATURE, FIELD AND FRAME
    ARMATURE, FIELD AND FRAME
  • 7
    865380A25 FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 8
    392-9250 PLATE ASSEMBLY, COMMUTATOR END
    PLATE ASSEMBLY, COMMUTATOR END
  • 9
    392-8989 BRUSH KIT, COMMUTATOR END PLATE
    BRUSH KIT, COMMUTATOR END PLATE
  • 10
    392-8993 SPRING KIT, GBRUSH TENSION
    SPRING KIT, GBRUSH TENSION
  • 11
    392-9251 BOLT SET, THRU
    BOLT SET, THRU
  • 12
    392-7728 FILL PLUG, RESERVOIR
    FILL PLUG, RESERVOIR
