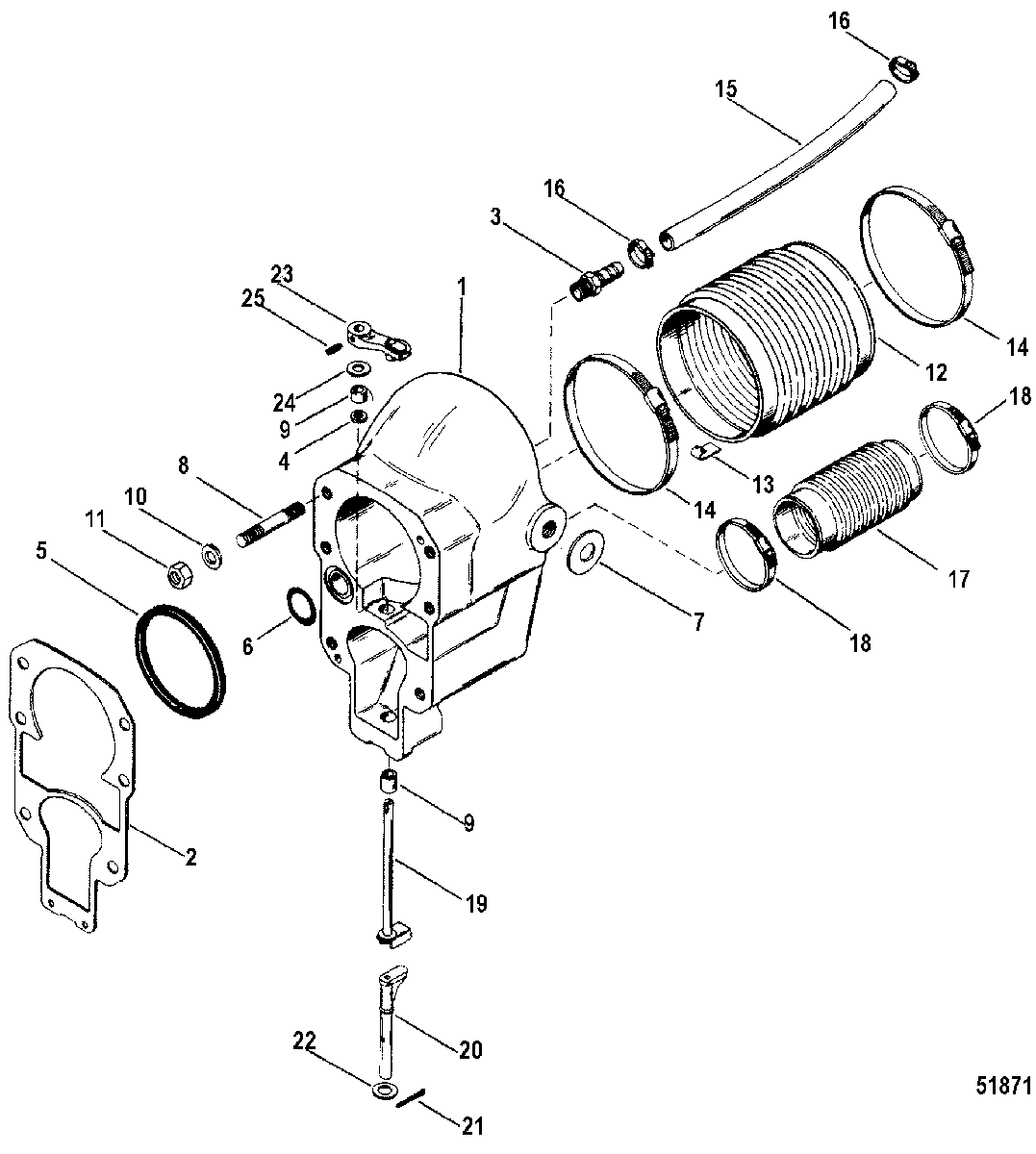

BELL HOUSING для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

№

Артикул

Название
1

42815A6 BELL HOUSING ASSEMBLY (BLACK)

BELL HOUSING ASSEMBLY (BLACK)
2

27-94996Q2 GASKET, BELL HOUSING
(Gear Repair Kits No. 1 - 5)

GASKET, BELL HOUSING
(Gear Repair Kits No. 1 - 5)
3

22-33066 CONNECTOR, (.500-14) Straight - Brass

CONNECTOR, (.500-14) Straight - Brass
3

22-44221 CONNECTOR (5/8 Inch HOSE - 3/4-14 THREAD)

CONNECTOR (5/8 Inch HOSE - 3/4-14 THREAD)
3

22-42683 CONNECTOR, (.750-14)

CONNECTOR, (.750-14)
4

26-8164641 SEAL, Oil, BELL HOUSING

SEAL, Oil, BELL HOUSING
5

27-35982 GASKET, Rubber, Bell Housing
(Gear Repair Kits No. 1 - 5)

GASKET, Rubber, Bell Housing
(Gear Repair Kits No. 1 - 5)
6

25-33504 O-RING, BELL HOUSING
(Gear Repair Kits No. 1 - 5)

O-RING, BELL HOUSING
(Gear Repair Kits No. 1 - 5)
7

12-72498 WASHER, Synthane, Bell Housing

WASHER, Synthane, Bell Housing
8

16-59579 STUD, (.437-14/.437-20 x 2.812), BELL HOUSING TO DRIVE SHAFT HOUSING

STUD, (.437-14/.437-20 x 2.812), BELL HOUSING TO DRIVE SHAFT HOUSING
NS

23-805041A2 BUSHING/SEAL KIT, Oil, BELL HOUSING (5/16 Inch)

BUSHING/SEAL KIT, Oil, BELL HOUSING (5/16 Inch)
NS

23-805041A2 BUSHING/SEAL KIT, Oil, BELLHOUSING (5/8 Inch)

BUSHING/SEAL KIT, Oil, BELLHOUSING (5/8 Inch)
9

23-814308 BUSHING

BUSHING
10

12-35935 WASHER, (.435 x .875 x .105) Stainless Steel, BELL HOUSING STUD

WASHER, (.435 x .875 x .105) Stainless Steel, BELL HOUSING STUD
11

11-859116 NUT, (.437-20), BELL HOUSING STUD

NUT, (.437-20), BELL HOUSING STUD
12

60932A4 BELLOWS ASSEMBLY, UNIVERSAL JOINT

BELLOWS ASSEMBLY, UNIVERSAL JOINT
13

54-8M0126505 CLIP, Grounding, BELLOWS

CLIP, Grounding, BELLOWS
14

54-815504372 CLAMP, Worm Gear, UNIVERSAL JOINT BELLOWS

CLAMP, Worm Gear, UNIVERSAL JOINT BELLOWS
15

32-32461 HOSE, WATER - 5/8 Inch Inside Diameter

HOSE, WATER - 5/8 Inch Inside Diameter
15

32-8M0109048 HOSE, WATER - 3/4 Inch Inside Diameter

HOSE, WATER - 3/4 Inch Inside Diameter
16

54-815504412 CLAMP, Worm Gear, WATER HOSE

CLAMP, Worm Gear, WATER HOSE
17

18654A1 BELLOWS ASSEMBLY, EXHAUST

BELLOWS ASSEMBLY, EXHAUST
17

78458A1 TUBE (454 MAGNUM/JACKSHAFT MODELS)

TUBE (454 MAGNUM/JACKSHAFT MODELS)
18

54-815504348 CLAMP, Worm Gear, EXHAUST BELLOWS

CLAMP, Worm Gear, EXHAUST BELLOWS
19

45589A3 SHAFT ASSEMLBY, SHIFT - UPPER

SHAFT ASSEMLBY, SHIFT - UPPER
20

621041 SHIFT SHAFT, INTERMEDIATE

SHIFT SHAFT, INTERMEDIATE
21

18-32665 COTTER PIN, INTERMEDIATE SHIFT SHAFT

COTTER PIN, INTERMEDIATE SHIFT SHAFT
22

12-32666 WASHER, INTERMEDIATE SHIFT SHAFT

WASHER, INTERMEDIATE SHIFT SHAFT
23

45518A3 LEVER ASSEMBLY, UPPER SHIFT SHAFT

LEVER ASSEMBLY, UPPER SHIFT SHAFT
24

12-39116 WASHER, UPPER SHIFT LEVER

WASHER, UPPER SHIFT LEVER
25

10-8M0084649 SCREW, (.250-28), UPPER SHIFT LEVER (1-1/16 Inch)

SCREW, (.250-28), UPPER SHIFT LEVER (1-1/16 Inch)
-

865436A03 CABLE KIT, Shift

CABLE KIT, Shift
-

30-803097T1 SEAL KIT, Transom (with Exhaust Bellow)

SEAL KIT, Transom (with Exhaust Bellow)
-

30-803098T1 SEAL KIT, Transom (with Exhaust Tube)

SEAL KIT, Transom (with Exhaust Tube)
-

43-803101T1 REPAIR KIT, Gear - Upper Driveshaft
(1.98 Ratio)(20/24 Gear)

REPAIR KIT, Gear - Upper Driveshaft
(1.98 Ratio)(20/24 Gear)
-

43-803112T1 REPAIR KIT, Gear - Upper Driveshaft
(1.65 Ratio)(24/24 Gear)

REPAIR KIT, Gear - Upper Driveshaft
(1.65 Ratio)(24/24 Gear)
-

43-803114T1 REPAIR KIT, Gear - Upper Driveshaft
(1.84 Ratio)(17/19 Gear)

REPAIR KIT, Gear - Upper Driveshaft
(1.84 Ratio)(17/19 Gear)
-

43-803115T1 REPAIR KIT, Gear - Upper Driveshaft
(1.32 Ratio)(16/20 Gear)

REPAIR KIT, Gear - Upper Driveshaft
(1.32 Ratio)(16/20 Gear)
-

43-803116T1 REPAIR KIT, Gear - Upper Driveshaft
(1.50 Ratio)(20/22 Gear)

REPAIR KIT, Gear - Upper Driveshaft
(1.50 Ratio)(20/22 Gear)
