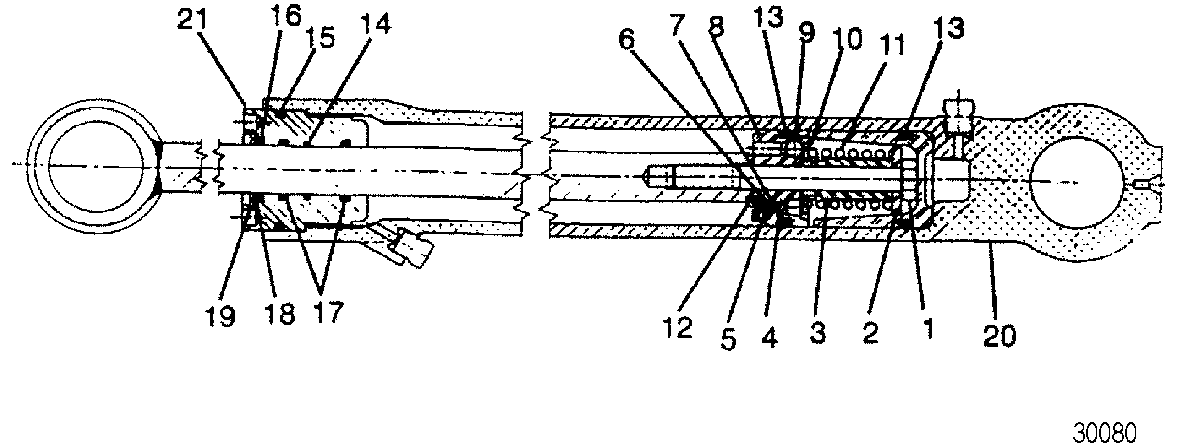

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • --
    87399A2 OVERHAUL KIT
    OVERHAUL KIT
  • 1
    NSS NOT SOLD SEPARATE (10-15 X 3-3/8 inch)
    NOT SOLD SEPARATE (10-15 X 3-3/8 inch)
  • 2
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 3
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 4
    NSS NOT SOLD SEPARATE, STEEL (.109 DIA.)
    NOT SOLD SEPARATE, STEEL (.109 DIA.)
  • 5
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 6
    NSS NOT SOLD SEPARATE, COMPRESSION
    NOT SOLD SEPARATE, COMPRESSION
  • 7
    NSS NOT SOLD SEPARATE, BALL CHECK
    NOT SOLD SEPARATE, BALL CHECK
  • 8
    NSS NOT SOLD SEPARATE, SHOCK
    NOT SOLD SEPARATE, SHOCK
  • 9
    NSS NOT SOLD SEPARATE, STEEL (.250 DIA.)
    NOT SOLD SEPARATE, STEEL (.250 DIA.)
  • 10
    NSS NOT SOLD SEPARATE, STEEL BALL
    NOT SOLD SEPARATE, STEEL BALL
  • 11
    NSS NOT SOLD SEPARATE, COMPRESSION
    NOT SOLD SEPARATE, COMPRESSION
  • --
    25-87400A2 SEAL KIT
    SEAL KIT
  • 12
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 13
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 14
    NSS NOT SOLD SEPARATE, CONTINUITY
    NOT SOLD SEPARATE, CONTINUITY
  • 15
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 16
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 17
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 18
    NSS NOT SOLD SEPARATE, PLAIN
    NOT SOLD SEPARATE, PLAIN
  • 19
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 20
    98703T TUBE (PORT) - CASTING #98703
    TUBE (PORT) - CASTING #98703
  • 20
    98703A10 TUBE (PORT) - CASTING #98703 1
    TUBE (PORT) - CASTING #98703 1
  • 20
    8M0118960 TUBE (PORT) - CASTING #14035 1 (BLACK)
    TUBE (PORT) - CASTING #14035 1 (BLACK)
  • 20
    98704T TUBE (STARBOARD) - CASTING #98704
    TUBE (STARBOARD) - CASTING #98704
  • 20
    98704A10 TUBE (STARBOARD) - CASTING #98704 1
    TUBE (STARBOARD) - CASTING #98704 1
  • 20
    8M0118961 TRIM CYLINDER ASSEMBLY (STARBOARD) - CASTING #14034 1 (BLACK)
    TRIM CYLINDER ASSEMBLY (STARBOARD) - CASTING #14034 1 (BLACK)
  • 21
    88035 CAP (2.081 O.D.)
    CAP (2.081 O.D.)
  • 21
    98-8M0118340 CAP (1.89 O.D.) (BLACK)
    CAP (1.89 O.D.) (BLACK)
