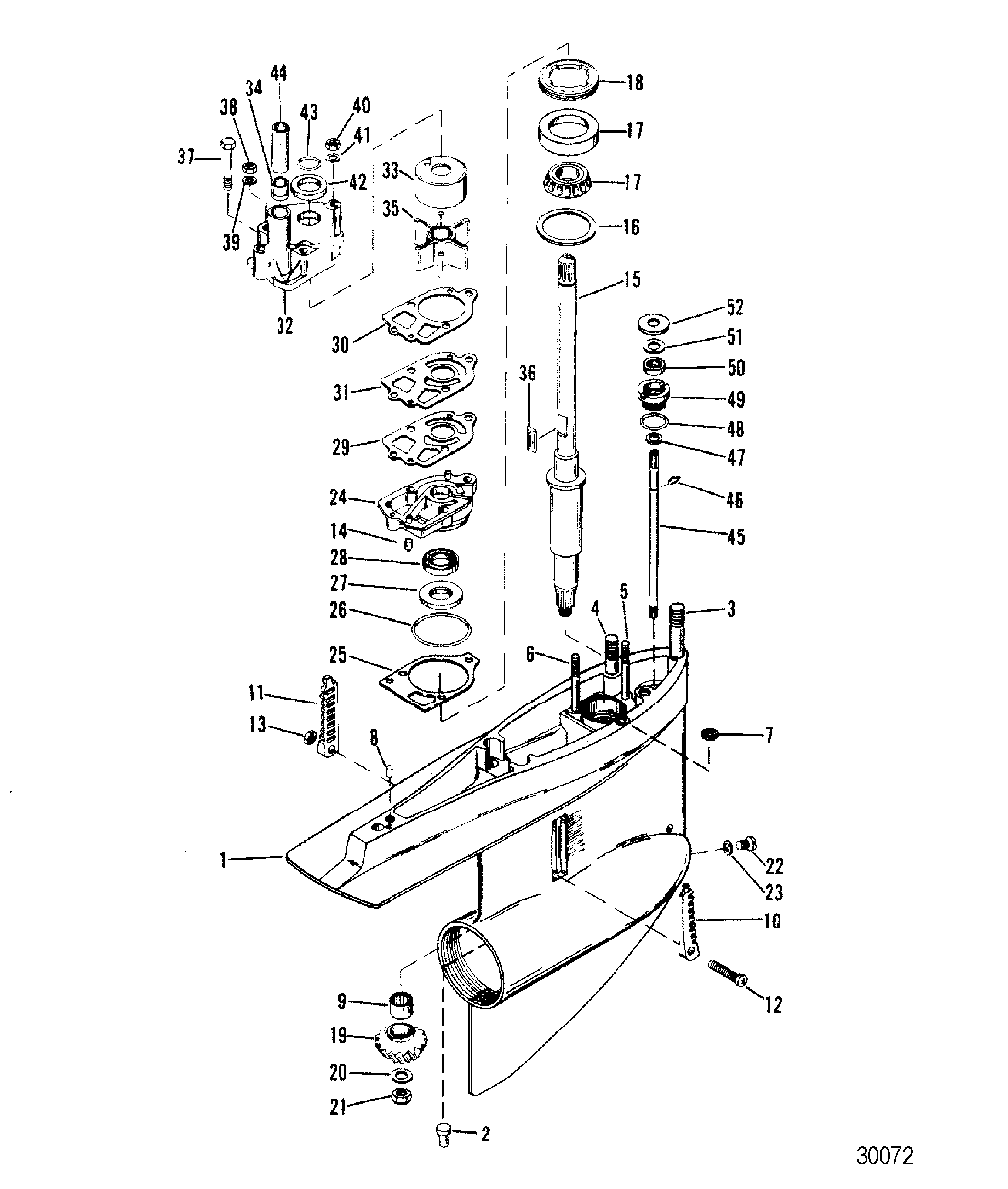

GEAR HOUSING(DRIVESHAFT) - (COUNTER ROTATION) для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • --
    1623-8951A33 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 1
    1623-8951A39 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    17-379721 PIN, SHIFT CRANK - GEAR HOUSING
    PIN, SHIFT CRANK - GEAR HOUSING
  • 3
    16-46911 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-3/16 inch)
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-3/16 inch)
  • 4
    16-56298 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1-31/32 inch)
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1-31/32 inch)
  • 5
    16-8M0034463 STUD, (.312-18/.324-24 x 3.380), WATER PUMP GEAR HOUSING
    STUD, (.312-18/.324-24 x 3.380), WATER PUMP GEAR HOUSING
  • 6
    16-69501 STUD, WATER PUMP GEAR HOUSING (3-1/4 inch)
    STUD, WATER PUMP GEAR HOUSING (3-1/4 inch)
  • 7
    26-455771 SEAL, GEAR HOUSING
    SEAL, GEAR HOUSING
  • 8
    17-8M0084627 PIN, Dowel, GEAR HOUSING
    PIN, Dowel, GEAR HOUSING
  • 9
    31-42647A1 BEARING ASSEMBLY, Roller, DRIVE SHAFT
    BEARING ASSEMBLY, Roller, DRIVE SHAFT
  • 10
    934231 INSERT, WATER PICKUP (STARBOARD)
    INSERT, WATER PICKUP (STARBOARD)
  • 11
    934241 INSERT, WATER PICKUP (PORT)
    INSERT, WATER PICKUP (PORT)
  • 12
    10-76156 SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING
    SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING
  • 13
    11-859124 NUT, (#10-32) Stainless Steel, INSERT SCREW
    NUT, (#10-32) Stainless Steel, INSERT SCREW
  • 14
    17-42836 PIN, Groove, WATER PUMP
    PIN, Groove, WATER PUMP
  • 15
    45-8M0140438 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 16
    15-8M0063267 SHIM SET, DRIVE SHAFT BEARING
    SHIM SET, DRIVE SHAFT BEARING
  • 17
    31-36387A1 BEARING, Roller, DRIVESHAFT
    BEARING, Roller, DRIVESHAFT
  • 18
    8245191 RETAINER, DRIVE SHAFT BEARING
    RETAINER, DRIVE SHAFT BEARING
  • 19
    43-828071A1 GEAR SET (INCLUDES PINION AND FORWARD GEARS)
    GEAR SET (INCLUDES PINION AND FORWARD GEARS)
  • 20
    12-92721 WASHER, PINION GEAR
    WASHER, PINION GEAR
  • 21
    11-35921 NUT, (.625-18), PINION GEAR TO DRIVESHAFT
    NUT, (.625-18), PINION GEAR TO DRIVESHAFT
  • 22
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 23
    12-191833 WASHER, FILL/DRAIN SCREW
    (Component of Lower Seal Kit 26-33144A2)
    WASHER, FILL/DRAIN SCREW
    (Component of Lower Seal Kit 26-33144A2)
  • 24
    46-44292A3 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 25
    27-426311 GASKET, WATER PUMP TO GEAR HSG
    (Component of Water Pump Kit 46-44292A3)
    GASKET, WATER PUMP TO GEAR HSG
    (Component of Water Pump Kit 46-44292A3)
  • 26
    25-896523 O-RING, (2.175 x .175), WATER PUMP
    (Component of Water Pump Kit 46-44292A3)
    O-RING, (2.175 x .175), WATER PUMP
    (Component of Water Pump Kit 46-44292A3)
  • 27
    26-16977 SEAL, Oil, WATER PUMP
    SEAL, Oil, WATER PUMP
  • 28
    26-16977 SEAL, Oil, WATER PUMP
    SEAL, Oil, WATER PUMP
  • 29
    27-8M0090319 GASKET, LOWER - WATER PUMP
    (Component of Water Pump Impeller Kit 47-89984T5)
    GASKET, LOWER - WATER PUMP
    (Component of Water Pump Impeller Kit 47-89984T5)
  • 30
    27-858524 GASKET, UPPER - WATER PUMP
    (Component of Water Pump Impeller Kit 47-89984T5)
    GASKET, UPPER - WATER PUMP
    (Component of Water Pump Impeller Kit 47-89984T5)
  • 31
    324351 FACE PLATE
    FACE PLATE
  • 32
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 33
    48752T INSERT, WATER PUMP
    INSERT, WATER PUMP
  • 34
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 35
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 36
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 37
    10-96411 SCREW, (#14-8 x 2.25), WATER PUMP TO GEAR HOUSING
    SCREW, (#14-8 x 2.25), WATER PUMP TO GEAR HOUSING
  • 38
    11-8267119 NUT, (.250-28), WATER PUMP STUD
    NUT, (.250-28), WATER PUMP STUD
  • 39
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUD
  • 40
    11-13436 NUT, WATER PUMP STUDS (5/16-24)
    NUT, WATER PUMP STUDS (5/16-24)
  • 41
    12-36001 WASHER, WATER PUMP STUD
    WASHER, WATER PUMP STUD
  • 42
    25-30271 RING, Rubber, DRIVE SHAFT
    RING, Rubber, DRIVE SHAFT
  • 43
    25-30613 O-RING, UPPER - DRIVE SHAFT
    (Component of Water Pump Impeller Kit 47-89984T5)
    O-RING, UPPER - DRIVE SHAFT
    (Component of Water Pump Impeller Kit 47-89984T5)
  • 44
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 45
    774811 SHIFT SHAFT, LOWER
    SHIFT SHAFT, LOWER
  • 46
    53-29641 E RING, SHIFT SHAFT
    E RING, SHIFT SHAFT
  • 47
    12-27880 WASHER, LOWER SHIFT SHAFT AND CRANK
    WASHER, LOWER SHIFT SHAFT AND CRANK
  • 48
    25-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHING
    O-RING, (.862 x .103), SHIFT SHAFT BUSHING
  • 49
    23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 50
    26-892361 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 51
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 52
    12-8M0042641 WASHER, (.390 x 1.00 x .06), SHIFT SHAFT
    WASHER, (.390 x 1.00 x .06), SHIFT SHAFT
  • -
    46-96148A8 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • -
    26-33144A2 SEAL KIT
    SEAL KIT
  • -
    26-32511A1 SEAL KIT
    SEAL KIT
  • -
    31-803092T1 BEARING AND SEAL KIT
    BEARING AND SEAL KIT
  • -
    43-803093T1 GEAR KIT, Lower
    GEAR KIT, Lower
  • -
    46-44292A3 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • -
    47-89984T5 IMPELLER KIT, Water Pump
    IMPELLER KIT, Water Pump
