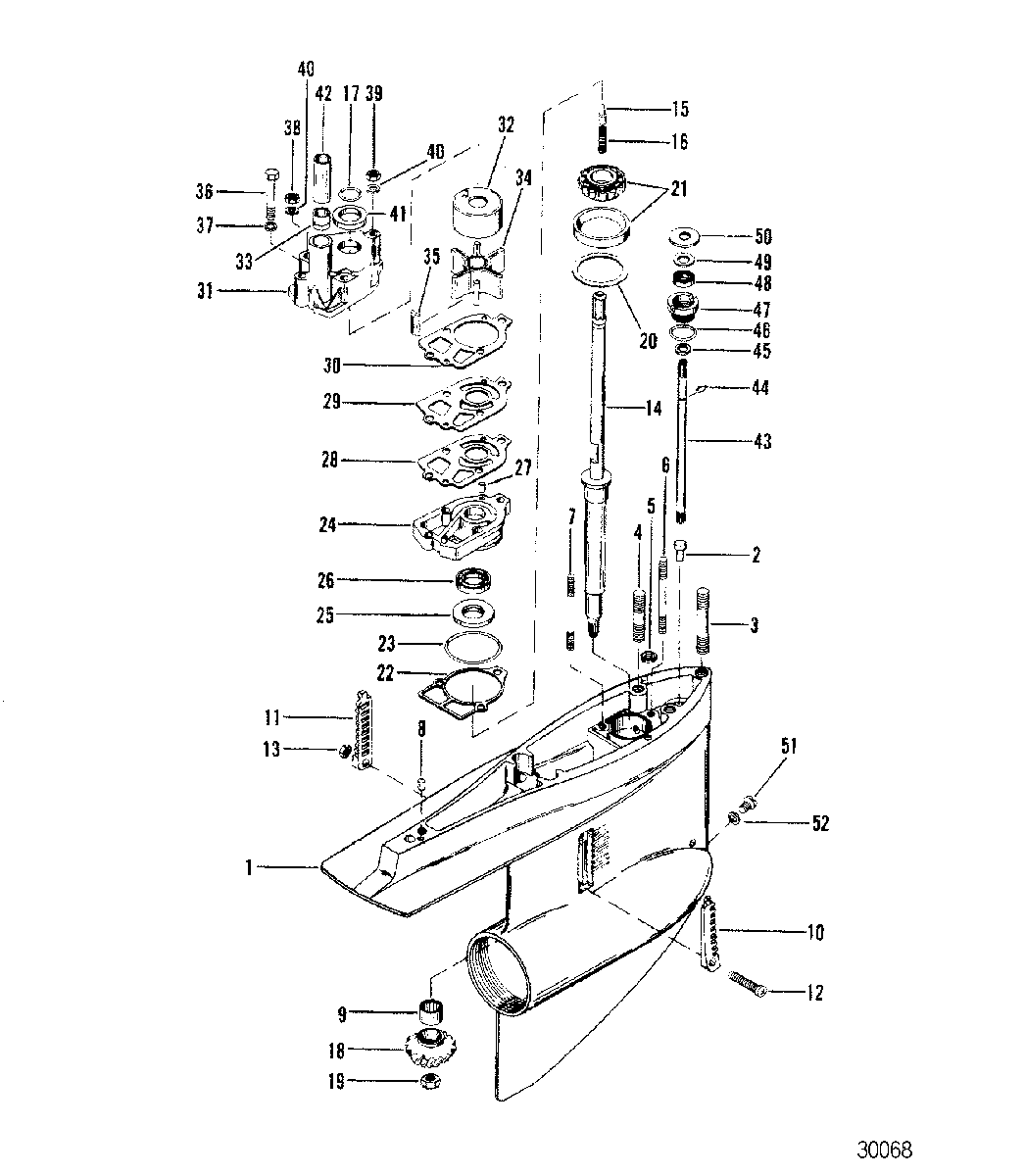

GEAR HOUSING(Driveshaft) - R для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • --
    1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1623-5356A4 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    17-379721 PIN, SHIFT CRANK - GEAR HOUSING
    PIN, SHIFT CRANK - GEAR HOUSING
  • 3
    16-46911 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-3/16 inch)
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3-3/16 inch)
  • 4
    16-56298 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1-31/32 inch)
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1-31/32 inch)
  • 5
    26-455771 SEAL, GEAR HOUSING
    (Component of Driveshaft Housing Seal Kit 26-32511A1) (Component of Gear Repair Kits No. 1-5)
    SEAL, GEAR HOUSING
    (Component of Driveshaft Housing Seal Kit 26-32511A1) (Component of Gear Repair Kits No. 1-5)
  • 6
    16-8M0034463 STUD, (.312-18/.324-24 x 3.380), WATER PUMP GEAR HOUSING
    STUD, (.312-18/.324-24 x 3.380), WATER PUMP GEAR HOUSING
  • 7
    16-69501 STUD, WATER PUMP GEAR HOUSING (3-1/4 inch)
    STUD, WATER PUMP GEAR HOUSING (3-1/4 inch)
  • 8
    17-8M0084627 PIN, Dowel, GEAR HOUSING TO DRIVE SHAFT HOUSING
    PIN, Dowel, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 9
    31-92366A1 BEARING ASSEMBLY, Roller, DRIVE SHAFT
    BEARING ASSEMBLY, Roller, DRIVE SHAFT
  • 10
    66885 INSERT, WATER PICKUP (STARBOARD SIDE)
    INSERT, WATER PICKUP (STARBOARD SIDE)
  • 11
    66884 INSERT, WATER PICKUP (PORT SIDE)
    INSERT, WATER PICKUP (PORT SIDE)
  • 12
    10-76156 SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING
    SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING
  • 13
    11-859124 NUT, (#10-32) Stainless Steel, INSERT SCREW
    NUT, (#10-32) Stainless Steel, INSERT SCREW
  • 14
    45-41939F1 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 15
    17-30545 PIN, DRIVESHAFT
    PIN, DRIVESHAFT
  • 16
    24-34576 SPRING, COMPRESSION - DRIVESHAFT
    SPRING, COMPRESSION - DRIVESHAFT
  • 17
    25-30613 O-RING, UPPER - DRIVESHAFT
    O-RING, UPPER - DRIVESHAFT
  • 18
    43-96084A7 GEAR SET (INCLUDES PINION AND FORWARD GEARS)
    GEAR SET (INCLUDES PINION AND FORWARD GEARS)
  • 19
    11-35921 NUT, (.625-18), PINION GEAR TO DRIVESHAFT
    NUT, (.625-18), PINION GEAR TO DRIVESHAFT
  • 20
    15-57007A1 SHIM, DRIVESHAFT BEARING
    SHIM, DRIVESHAFT BEARING
  • 21
    31-53079A1 BEARING ASSEMBLY, Tapered Roller, DRIVESHAFT
    BEARING ASSEMBLY, Tapered Roller, DRIVESHAFT
  • 22
    27-856704 GASKET, WATER PUMP TO GEAR HOUSING
    GASKET, WATER PUMP TO GEAR HOUSING
  • 23
    25-33145 O-RING, (1.984 x .139), WATER PUMP
    O-RING, (1.984 x .139), WATER PUMP
  • 24
    46-57234A1 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 25
    26-89238 SEAL, Oil, WATER PUMP
    SEAL, Oil, WATER PUMP
  • 26
    26-16977 SEAL, Oil, WATER PUMP
    SEAL, Oil, WATER PUMP
  • 27
    17-8M0084627 PIN, Dowel, WATER PUMP
    PIN, Dowel, WATER PUMP
  • 28
    27-8M0090319 GASKET, LOWER - WATER PUMP
    (Component of Lower Seal Kit 26-33144A2)
    GASKET, LOWER - WATER PUMP
    (Component of Lower Seal Kit 26-33144A2)
  • 29
    324351 FACE PLATE
    FACE PLATE
  • 30
    27-858524 GASKET, UPPER - WATER PUMP
    GASKET, UPPER - WATER PUMP
  • 31
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 32
    48752T INSERT, WATER PUMP
    INSERT, WATER PUMP
  • 33
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 34
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 35
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 36
    10-30720 SCREW, (.250-20 x 2.25), WATER PUMP TO GEAR HOUSING
    SCREW, (.250-20 x 2.25), WATER PUMP TO GEAR HOUSING
  • 37
    12-36001 WASHER, WATER PUMP SCREW
    WASHER, WATER PUMP SCREW
  • 38
    11-8267089 NUT, (.250-28), WATER PUMP STUDS
    NUT, (.250-28), WATER PUMP STUDS
  • 39
    11-826709111 NUT, (.312-24), WATER PUMP STUDS
    NUT, (.312-24), WATER PUMP STUDS
  • 40
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUD
  • 41
    25-30271 RING, Rubber, DRIVESHAFT
    RING, Rubber, DRIVESHAFT
  • 42
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 43
    774811 SHIFT SHAFT, LOWER
    SHIFT SHAFT, LOWER
  • 44
    53-29641 E RING, SHIFT SHAFT
    E RING, SHIFT SHAFT
  • 45
    12-27880 WASHER, LOWER SHIFT SHAFT AND CRANK
    WASHER, LOWER SHIFT SHAFT AND CRANK
  • 46
    25-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHING
    O-RING, (.862 x .103), SHIFT SHAFT BUSHING
  • 47
    23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 48
    26-892361 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 49
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 50
    12-8M0042641 WASHER, (.390 x 1.00 x .06), SHIFT SHAFT
    WASHER, (.390 x 1.00 x .06), SHIFT SHAFT
  • 51
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 52
    12-191833 WASHER, FILL/DRAIN SCREW
    WASHER, FILL/DRAIN SCREW
  • -
    46-96148A8 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • -
    26-32511A1 SEAL KIT
    SEAL KIT
  • -
    26-33144A2 SEAL KIT
    SEAL KIT
  • -
    31-803068T1 BEARING AND SEAL KIT
    BEARING AND SEAL KIT
  • -
    43-803079T1 REPAIR KIT, Lower Gear
    REPAIR KIT, Lower Gear
  • -
    47-89984T5 IMPELLER KIT, Water Pump
    IMPELLER KIT, Water Pump
  • -
    46-57234T1 PUMP KIT, Water
    PUMP KIT, Water
