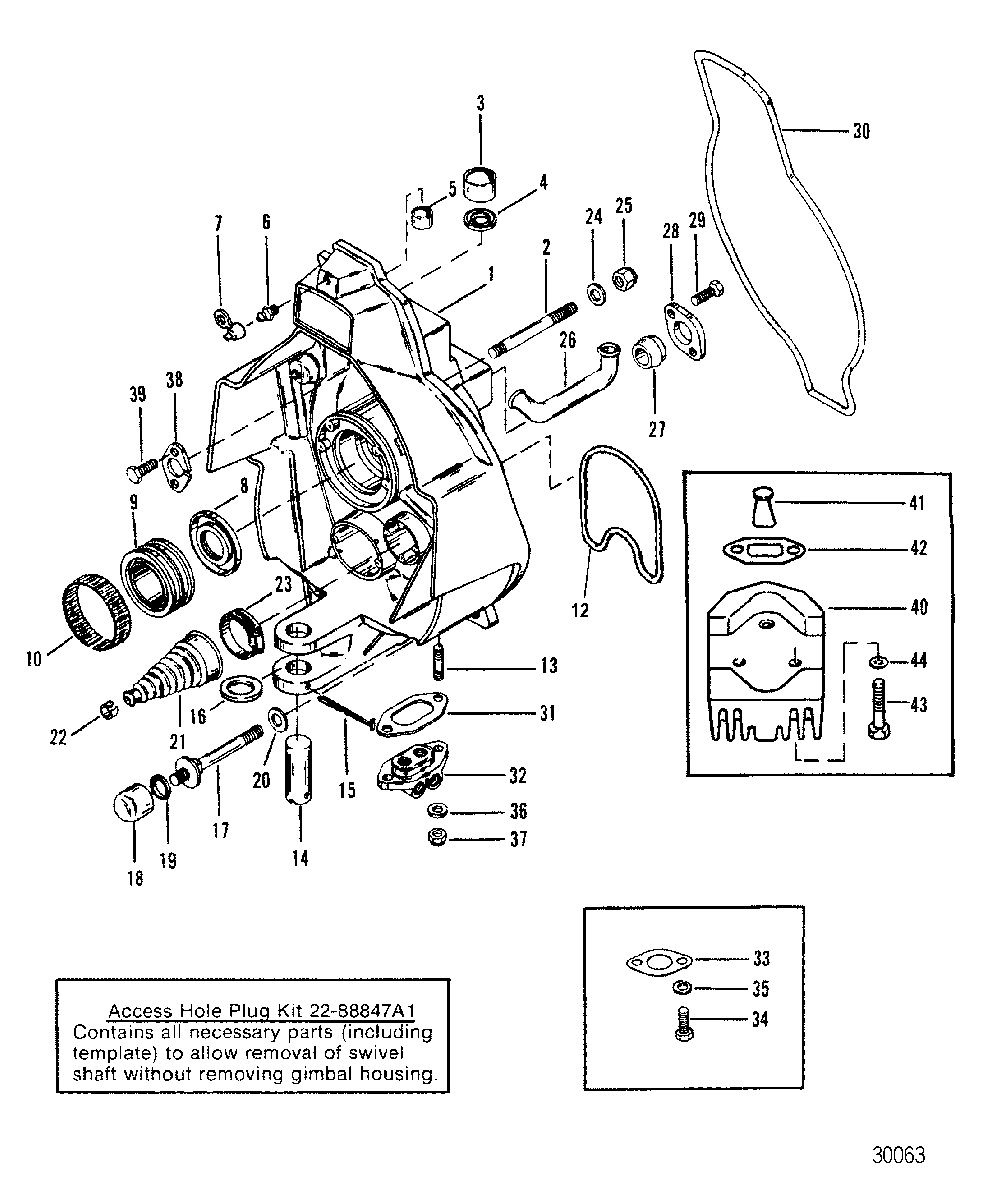

GIMBAL HOUSING SQUARE/SQUARE UPPER SWIVEL SHAFT для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • 1
    42260A6 GIMBAL HOUSING ASSEMBLY (BLACK)
    GIMBAL HOUSING ASSEMBLY (BLACK)
  • 2
    16-56296 STUD, (.437-20 x 4.750), GIMBAL HOUSING TO TRANSOM PLATE
    STUD, (.437-20 x 4.750), GIMBAL HOUSING TO TRANSOM PLATE
  • 3
    23-983571 BUSHING, GIMBAL HOUSING (LOWER)
    BUSHING, GIMBAL HOUSING (LOWER)
  • 4
    26-8M2005029 SEAL, Oil, LOWER GIMBAL HOUSING BUSHING
    SEAL, Oil, LOWER GIMBAL HOUSING BUSHING
  • 5
    23-98356 BUSHING, GIMBAL HOUSING (UPPER)
    BUSHING, GIMBAL HOUSING (UPPER)
  • 6
    22-74036 FITTING, Grease, GIMBAL HOUSING
    (Use with greased bearing)
    FITTING, Grease, GIMBAL HOUSING
    (Use with greased bearing)
  • 6
    10-8M2015913 PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
    PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
  • 7
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
  • 8
    26-88416 SEAL, Oil, GIMBAL HOUSING
    SEAL, Oil, GIMBAL HOUSING
  • 9
    30-879194A02 BEARING ASSEMBLY, GIMBAL HOUSING
    BEARING ASSEMBLY, GIMBAL HOUSING
  • 10
    61075 TOLERANCE RING, GIMBAL HOUSING BEARING
    TOLERANCE RING, GIMBAL HOUSING BEARING
  • 12
    41802 SEAL, Rubber, EXHAUST SEAL
    SEAL, Rubber, EXHAUST SEAL
  • 13
    16-56766 STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING
    STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING
  • 14
    17-45212 PIN (LOWER) (STEEL)
    PIN (LOWER) (STEEL)
  • 14
    17-8M0073409 SWIVEL PIN, Lower (ALUMINUM)
    SWIVEL PIN, Lower (ALUMINUM)
  • 15
    18-34212 COTTER PIN, LOWER SWIVEL PIN
    COTTER PIN, LOWER SWIVEL PIN
  • 16
    12-32518 WASHER, LOWER SWIVEL PIN
    WASHER, LOWER SWIVEL PIN
  • 17
    8M0030655 BOLT ASSEMBLY, ANODIC
    BOLT ASSEMBLY, ANODIC
  • 18
    97-55989Q9 ANODE KIT, BOLT
    ANODE KIT, BOLT
  • 19
    12-56085 WASHER, ANODIC BOLT
    WASHER, ANODIC BOLT
  • 20
    12-32620 WASHER, GIMBAL HOUSING BOLT
    WASHER, GIMBAL HOUSING BOLT
  • 21
    74639A2 BELLOWS ASSEMBLY, SHIFT ACTUATING CABLE
    BELLOWS ASSEMBLY, SHIFT ACTUATING CABLE
  • 22
    54-8M0090424 CLAMP, ACTUATING CABLE BELLOWS
    CLAMP, ACTUATING CABLE BELLOWS
  • 23
    54-815504320 CLAMP, Worm Gear, ACTUATING CABLE BELLOWS
    CLAMP, Worm Gear, ACTUATING CABLE BELLOWS
  • 24
    12-34567 WASHER, GIMBAL HOUSING STUD
    WASHER, GIMBAL HOUSING STUD
  • 25
    11-34933 NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD
    NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD
  • 26
    32-41672A01 TUBE, WATER (5/8 inch I.D. WATER TUBE)
    TUBE, WATER (5/8 inch I.D. WATER TUBE)
  • 26
    32-416721 TUBE, WATER (METAL) (3/4 inch I.D. WATER TUBE)
    TUBE, WATER (METAL) (3/4 inch I.D. WATER TUBE)
  • 26
    32-416721 TUBE, Water, WATER (NYLON) (3/4 inch I.D. WATER TUBE)
    TUBE, Water, WATER (NYLON) (3/4 inch I.D. WATER TUBE)
  • 27
    23-28055 BUSHING, RUBBER - WATER TUBE (5/8 inch I.D. WATER TUBE)
    BUSHING, RUBBER - WATER TUBE (5/8 inch I.D. WATER TUBE)
  • 27
    23-416751 BUSHING, RUBBER - WATER TUBE (3/4 inch I.D. WATER TUBE)
    BUSHING, RUBBER - WATER TUBE (3/4 inch I.D. WATER TUBE)
  • 28
    32517 COVER, WATER TUBE (5/8 inch I.D. WATER TUBE)
    COVER, WATER TUBE (5/8 inch I.D. WATER TUBE)
  • 28
    8M0092452 COVER, WATER TUBE (3/4 inch I.D. WATER TUBE)
    COVER, WATER TUBE (3/4 inch I.D. WATER TUBE)
  • 29
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING
    SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING
  • 30
    65533A1 SEAL, GIMBAL HOUSING TO TRANSOM
    SEAL, GIMBAL HOUSING TO TRANSOM
  • 31
    27-988231 GASKET, HYDRAULIC CONNECTOR
    GASKET, HYDRAULIC CONNECTOR
  • 32
    8M0137703 MANIFOLD ASSEMBLY, HYDRAULIC (BLACK)
    MANIFOLD ASSEMBLY, HYDRAULIC (BLACK)
  • 33
    27-995061 GASKET, CONNECTOR COVER
    GASKET, CONNECTOR COVER
  • 34
    10-28636 SCREW, (.250-20 x .750), CONNECTOR COVER
    SCREW, (.250-20 x .750), CONNECTOR COVER
  • 35
    13-78968 LOCKWASHER, Internal (.250), CONNECTOR COVER
    LOCKWASHER, Internal (.250), CONNECTOR COVER
  • 36
    13-78968 LOCKWASHER, Internal (.250), HYDRAULIC CONNECTOR STUD
    LOCKWASHER, Internal (.250), HYDRAULIC CONNECTOR STUD
  • 37
    11-8267119 NUT, (.250-28), HYDRAULIC CONNECTOR STUD
    NUT, (.250-28), HYDRAULIC CONNECTOR STUD
  • 38
    57322T COVER, GIMBAL HOUSING
    COVER, GIMBAL HOUSING
  • 39
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING
    SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING
  • 40
    97-821631Q1 PLATE ASSEMBLY, ANODIC
    PLATE ASSEMBLY, ANODIC
  • 41
    12077 SEAL
    SEAL
  • 42
    27-995061 GASKET, ANODIC PLATE
    GASKET, ANODIC PLATE
  • 43
    10-86885 SCREW, (.250-20 x 1.500) Stainless Steel, ANODIC PLATE
    SCREW, (.250-20 x 1.500) Stainless Steel, ANODIC PLATE
  • 44
    13-78968 LOCKWASHER, Internal (.250), ANODIC PLATE SCREW
    LOCKWASHER, Internal (.250), ANODIC PLATE SCREW
  • -
    865436A03 CABLE KIT, Shift
    CABLE KIT, Shift
  • -
    30-803097T1 SEAL KIT, Transom (with Exhaust Bellow)
    SEAL KIT, Transom (with Exhaust Bellow)
  • -
    30-803098T1 SEAL KIT, Transom (with Exhaust Tube)
    SEAL KIT, Transom (with Exhaust Tube)
