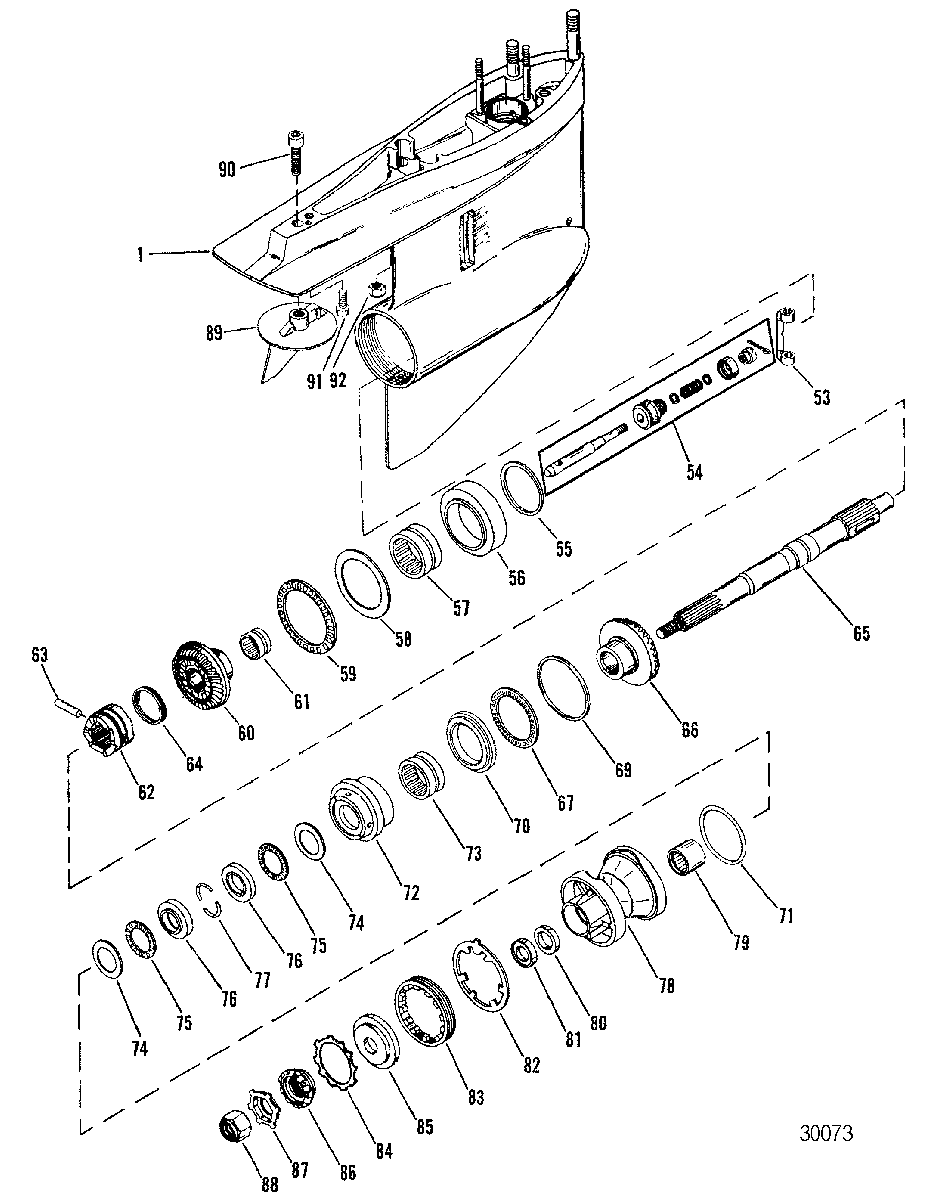

GEAR HOUSING(PROPELLER SHAFT) -(COUNTER ROTATION) для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • --
    1623-8951A33 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1623-8951A39 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 53
    8M2009865 CRANK, Shift
    CRANK, Shift
  • 54
    818349T1 SHIFT SPOOL KIT
    SHIFT SPOOL KIT
  • 55
    15-47397A1 SHIM SET, BEARING OUTER RACE
    SHIM SET, BEARING OUTER RACE
  • 56
    815362T1 ADAPTOR ASSEMBLY, Bearing, REVERSE GEAR
    ADAPTOR ASSEMBLY, Bearing, REVERSE GEAR
  • 56
    828830A2 ADAPTOR ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.)
    ADAPTOR ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.)
  • 57
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 58
    12-815481 THRUST WASHER
    THRUST WASHER
  • 59
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 60
    43-824700T1 GEAR ASSEMBLY, Reverse
    GEAR ASSEMBLY, Reverse
  • 61
    31-815482 BEARING, Roller
    BEARING, Roller
  • 62
    52-853594T CLUTCH, SLIDING
    CLUTCH, SLIDING
  • 63
    17-8M0100263 PIN, Cross, CLUTCH TO PROPELLER SHAFT
    PIN, Cross, CLUTCH TO PROPELLER SHAFT
  • 64
    24-30893 SPRING, REATINER - CROSS PIN
    SPRING, REATINER - CROSS PIN
  • 65
    44-8146061 PROPELLER SHAFT
    PROPELLER SHAFT
  • 65
    44-8M0140448 PROPELLER SHAFT (Used In Generation II Service Replacement Gear Housings.)
    PROPELLER SHAFT (Used In Generation II Service Replacement Gear Housings.)
  • 66
    43-828071A1 GEAR SET (INCLUDES FORWARD AND PINION GEARS)
    GEAR SET (INCLUDES FORWARD AND PINION GEARS)
  • 67
    31-15841 BEARING, Roller
    BEARING, Roller
  • 69
    23-1761514 SPACER SHIM , (.206)
    SPACER SHIM , (.206)
  • 69
    23-1761515 SPACER SHIM , (.208)
    SPACER SHIM , (.208)
  • 69
    23-1761516 SPACER SHIM, (.210)
    SPACER SHIM, (.210)
  • 69
    23-1761517 SPACER SHIM, (.212)
    SPACER SHIM, (.212)
  • 69
    23-1761518 SPACER SHIM, (.214)
    SPACER SHIM, (.214)
  • 69
    23-1761519 SPACER SHIM, (.216)
    SPACER SHIM, (.216)
  • 69
    23-1761520 SPACER SHIM, (.218)
    SPACER SHIM, (.218)
  • 69
    23-1761521 SPACER SHIM, (.220)
    SPACER SHIM, (.220)
  • 69
    23-1761522 SPACER SHIM, (.222)
    SPACER SHIM, (.222)
  • 69
    23-1761523 SPACER SHIM, (.224)
    SPACER SHIM, (.224)
  • 69
    23-1761526 SPACER SHIM, (.230)
    SPACER SHIM, (.230)
  • 69
    23-1761525 SPACER SHIM, (.228)
    SPACER SHIM, (.228)
  • 69
    23-1761526 SPACER SHIM, (.230)
    SPACER SHIM, (.230)
  • 70
    12-17616 THRUST RING
    THRUST RING
  • 70
    12-815481 THRUST WASHER (Used In Generation II Service Replacement Gear Housings.)
    THRUST WASHER (Used In Generation II Service Replacement Gear Housings.)
  • 71
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 72
    814604T1 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 72
    828831A3 ADAPTOR ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.)
    ADAPTOR ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.)
  • 73
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 74
    12-18448 THRUST WASHER
    THRUST WASHER
  • 75
    31-15842 BEARING, Thrust
    BEARING, Thrust
  • 76
    815570 THRUST RACE
    THRUST RACE
  • 77
    814605 KEEPER
    KEEPER
  • 78
    14587A7 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 78
    818290A6 CARRIER ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.)
    CARRIER ASSEMBLY, Bearing (Used In Generation II Service Replacement Gear Housings.)
  • 79
    31-30956T BEARING, Needle, BEARING CARRIER
    BEARING, Needle, BEARING CARRIER
  • 80
    26-14077 SEAL, Oil (INSIDE)
    SEAL, Oil (INSIDE)
  • 81
    26-12224 SEAL, Oil (OUTSIDE)
    SEAL, Oil (OUTSIDE)
  • 82
    14-18323 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 83
    8M2000347 RETAINER, GEAR HOUSING
    RETAINER, GEAR HOUSING
  • 84
    13-423511 LOCKWASHER, Toothed, PROPELLER SHAFT
    LOCKWASHER, Toothed, PROPELLER SHAFT
  • 85
    12-835467Q01 THRUST HUB (FOR USE W/ BLACK MAX PROPELLERS)
    THRUST HUB (FOR USE W/ BLACK MAX PROPELLERS)
  • 85
    56292Q04 THRUST HUB AND WASHER ASSEMBLY (FOR USE W/M/C I PROPELLERS)
    THRUST HUB AND WASHER ASSEMBLY (FOR USE W/M/C I PROPELLERS)
  • 86
    12-31211Q03 WASHER, Splined, PROPELLER SHAFT
    WASHER, Splined, PROPELLER SHAFT
  • 87
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 88
    11-52707Q1 PROP NUT KIT, (.750-16), PROPELLER
    PROP NUT KIT, (.750-16), PROPELLER
  • 89
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING (2-3/8 inch)
    TRIM TAB ASSEMBLY, GEAR HOUSING (2-3/8 inch)
  • 89
    34127T2 TRIM TAB ASSEMBLY, GEAR HOUSING (4 inch)
    THIS TRIM TAB CANNOT BE USED WITH BLACK MAX PROPELLERS
    TRIM TAB ASSEMBLY, GEAR HOUSING (4 inch)
    THIS TRIM TAB CANNOT BE USED WITH BLACK MAX PROPELLERS
  • 90
    10-32470 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
    SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
  • 91
    10-30206 SCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING
    SCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 92
    11-859116 NUT, (.4375-20), DRIVE SHAFT HOUSING STUD
    NUT, (.4375-20), DRIVE SHAFT HOUSING STUD
  • -
    31-803092T1 BEARING AND SEAL KIT
    BEARING AND SEAL KIT
  • -
    43-803093T1 GEAR KIT, Lower
    GEAR KIT, Lower
