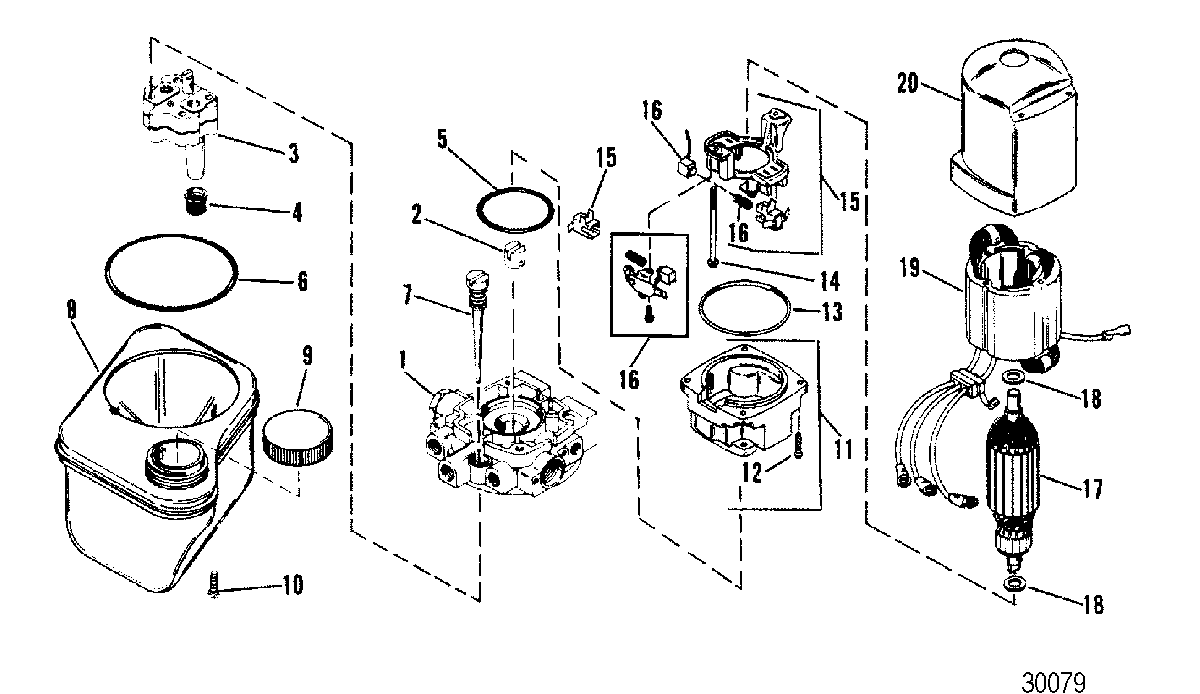

HYDRAULIC PUMP OILDYNE PUMP/ PLASTIC RESERVOIR для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • --
    865380A13 PUMP/MOTOR ASSEMBLY
    PUMP/MOTOR ASSEMBLY
  • 1
    808728T ADAPTER ASSEMBLY
    ADAPTER ASSEMBLY
  • 2
    803852 COUPLING
    COUPLING
  • 3
    18529 PUMP ASSEMBLY (INCLUDES SCREWS)
    PUMP ASSEMBLY (INCLUDES SCREWS)
  • 4
    35-89496 FILTER
    FILTER
  • 5
    25-89498 O-RING, MOTOR END
    O-RING, MOTOR END
  • 6
    25-17645 O-RING, RESERVOIR END
    O-RING, RESERVOIR END
  • 7
    41218 DIPSTICK
    DIPSTICK
  • 8
    18525A1 RESERVOIR
    RESERVOIR
  • 9
    36-865448A01 CAP (WITH VENT HOLE)
    CAP (WITH VENT HOLE)
  • 10
    10-18527 SCREW (INCLUDES O-RING)
    SCREW (INCLUDES O-RING)
  • --
    891736T MOTOR ASSEMBLY, HYDRAULIC PUMP
    MOTOR ASSEMBLY, HYDRAULIC PUMP
  • 11
    891736T END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 12
    891736T SCREW, END CAP
    SCREW, END CAP
  • 13
    891736T O-RING, HOUSING
    O-RING, HOUSING
  • 14
    891736T SCREW, FIELD FRAME
    SCREW, FIELD FRAME
  • 15
    891736T HOLDER KIT
    HOLDER KIT
  • 16
    891736T BRUSH KIT
    BRUSH KIT
  • 17
    891736T ARMATURE
    ARMATURE
  • 18
    891736T WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 19
    891736T FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 20
    891736T COVER ASSEMBLY
    COVER ASSEMBLY
  • -
    18545A1 REPAIR KIT
    REPAIR KIT
  • -
    95353A1 VALVE KIT, Relief
    VALVE KIT, Relief
  • -
    812499A1 VALVE KIT, Relief
    VALVE KIT, Relief
  • -
    812498A1 VALVE KIT, Relief
    VALVE KIT, Relief
