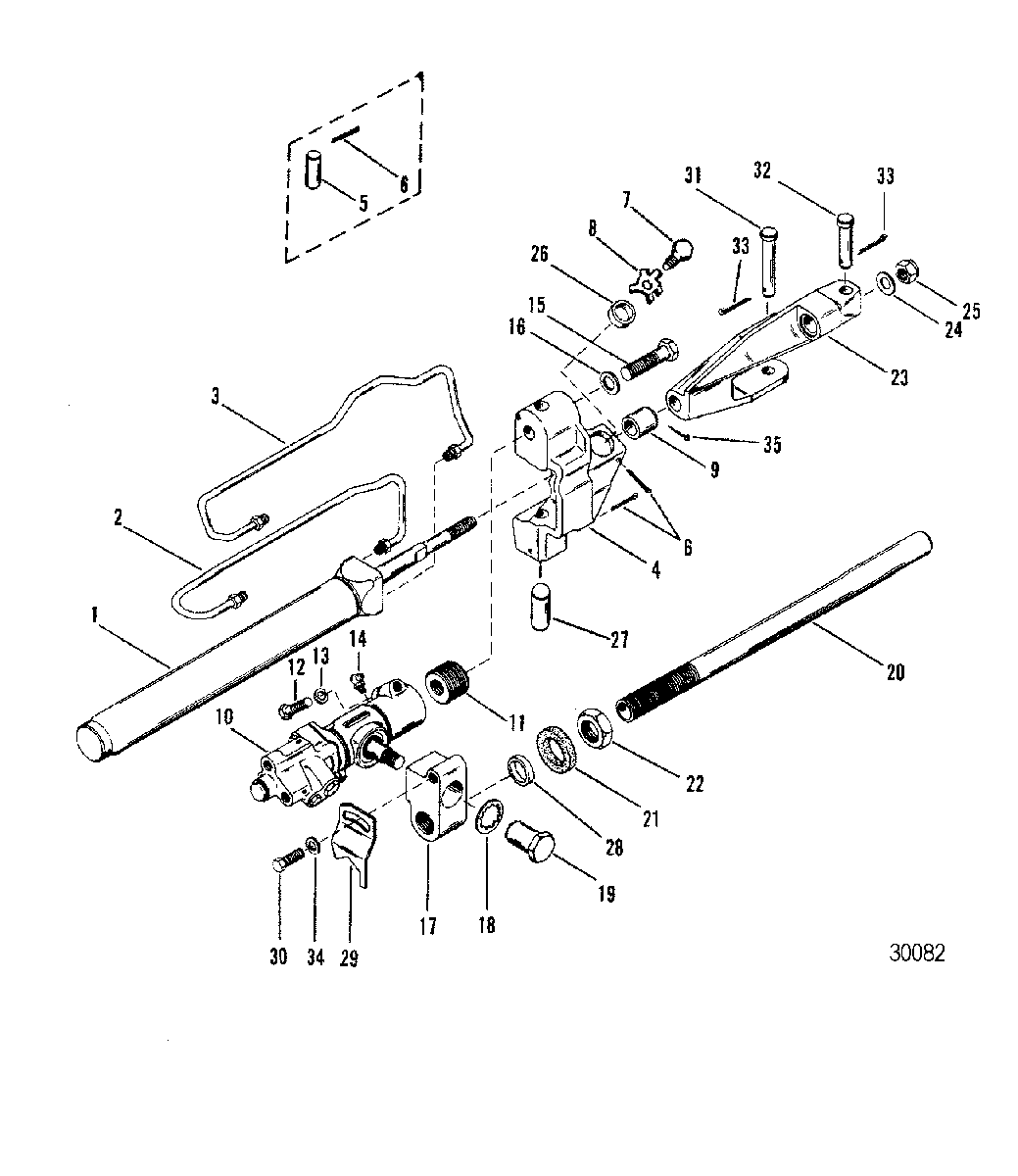

POWER STEERING COMPONENTS для Mercruiser - R/MR/ALPHA ONE (Sterndrive) 1983-1990 6225577 THRU 0D469858

  • №
    Артикул
    Название
  • 1
    57969A12 CYLINDER ASSEMBLY, Booster (25-58224A1 SEAL REPAIR KIT)
    CYLINDER ASSEMBLY, Booster (25-58224A1 SEAL REPAIR KIT)
  • 2
    32-92054 TUBE, EXTENDING
    TUBE, EXTENDING
  • 3
    32-92055 TUBE, RETRACTING
    TUBE, RETRACTING
  • 4
    94953A1 BRACKET ASSEMBLY, ADAPTOR
    BRACKET ASSEMBLY, ADAPTOR
  • 5
    17-99938 PIN, BOOSTER CYLINDER (EARLY STYLE)
    PIN, BOOSTER CYLINDER (EARLY STYLE)
  • 6
    18-36377 COTTER PIN, RETAINING PIN (EARLY STYLE)
    COTTER PIN, RETAINING PIN (EARLY STYLE)
  • 7
    10-8M0113173 BOLT, BOOSTER CYLINDER (LATER STYLE)
    BOLT, BOOSTER CYLINDER (LATER STYLE)
  • 8
    14-42254 WASHER, PIVOT BOLT (LATER STYLE)
    WASHER, PIVOT BOLT (LATER STYLE)
  • 9
    23-88282 SLEEVE, ADAPTOR BRACKET
    SLEEVE, ADAPTOR BRACKET
  • 10
    816458A1 VALVE ASSEMBLY, POWER STEERING (25-58226A1 SEAL REPAIR KIT)
    VALVE ASSEMBLY, POWER STEERING (25-58226A1 SEAL REPAIR KIT)
  • 11
    88280 ADAPTOR, BOOSTER VALVE
    ADAPTOR, BOOSTER VALVE
  • 12
    10-37612 SCREW, (.375-16 x 1.250), CLAMPING
    SCREW, (.375-16 x 1.250), CLAMPING
  • 13
    13-35048 LOCKWASHER, (.375), CLAMPING SCREW
    LOCKWASHER, (.375), CLAMPING SCREW
  • 14
    22-67305 FITTING, Grease
    FITTING, Grease
  • 15
    10-88281 SCREW, (.500-20 x 1.750), ADAPTOR
    SCREW, (.500-20 x 1.750), ADAPTOR
  • 16
    12-20959 WASHER, ADAPTOR SCREW
    WASHER, ADAPTOR SCREW
  • 17
    88285 ADAPTOR, STEERING TUBE
    ADAPTOR, STEERING TUBE
  • 18
    13-76629 LOCKWASHER, Internal Tooth (.750), STEERING TUBE ADAPTOR
    LOCKWASHER, Internal Tooth (.750), STEERING TUBE ADAPTOR
  • 19
    11-55111 NUT, STEERIN TUBE ADAPTOR
    NUT, STEERIN TUBE ADAPTOR
  • 20
    96511 TUBE ASSEMBLY, STEERING
    TUBE ASSEMBLY, STEERING
  • 21
    88287 GUIDE, STEERING TUBE
    GUIDE, STEERING TUBE
  • 22
    11-32882 NUT, (.875-14), STEERING TUBE
    NUT, (.875-14), STEERING TUBE
  • 23
    95848A1 CLEVIS ASSEMBLY, ROD END
    CLEVIS ASSEMBLY, ROD END
  • 24
    12-20086 WASHER, (.390 x .620 x .060), ROD END
    WASHER, (.390 x .620 x .060), ROD END
  • 25
    11-69254 NUT, ROD END
    NUT, ROD END
  • 26
    23-95803 BUSHING, PIVOT
    BUSHING, PIVOT
  • 27
    17-88283 PIN, Retaining
    PIN, Retaining
  • 28
    23-88286 BUSHING, STEERING TUBE
    BUSHING, STEERING TUBE
  • 29
    92766 LOCK, COUPLER NUT
    LOCK, COUPLER NUT
  • 30
    10-41209 SCREW, COUPLER NUT LOCK
    SCREW, COUPLER NUT LOCK
  • 31
    17-89229 PIN, Clevis
    PIN, Clevis
  • 32
    17-52798 PIN, Clevis
    PIN, Clevis
  • 33
    18-46950 COTTER PIN
    COTTER PIN
  • 34
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, COUPLER NUT LOCK SCREW
    WASHER, (.2656 x .625 x .0625) Stainless Steel, COUPLER NUT LOCK SCREW
  • 35
    18-34212 COTTER PIN, SLEEVE
    COTTER PIN, SLEEVE
