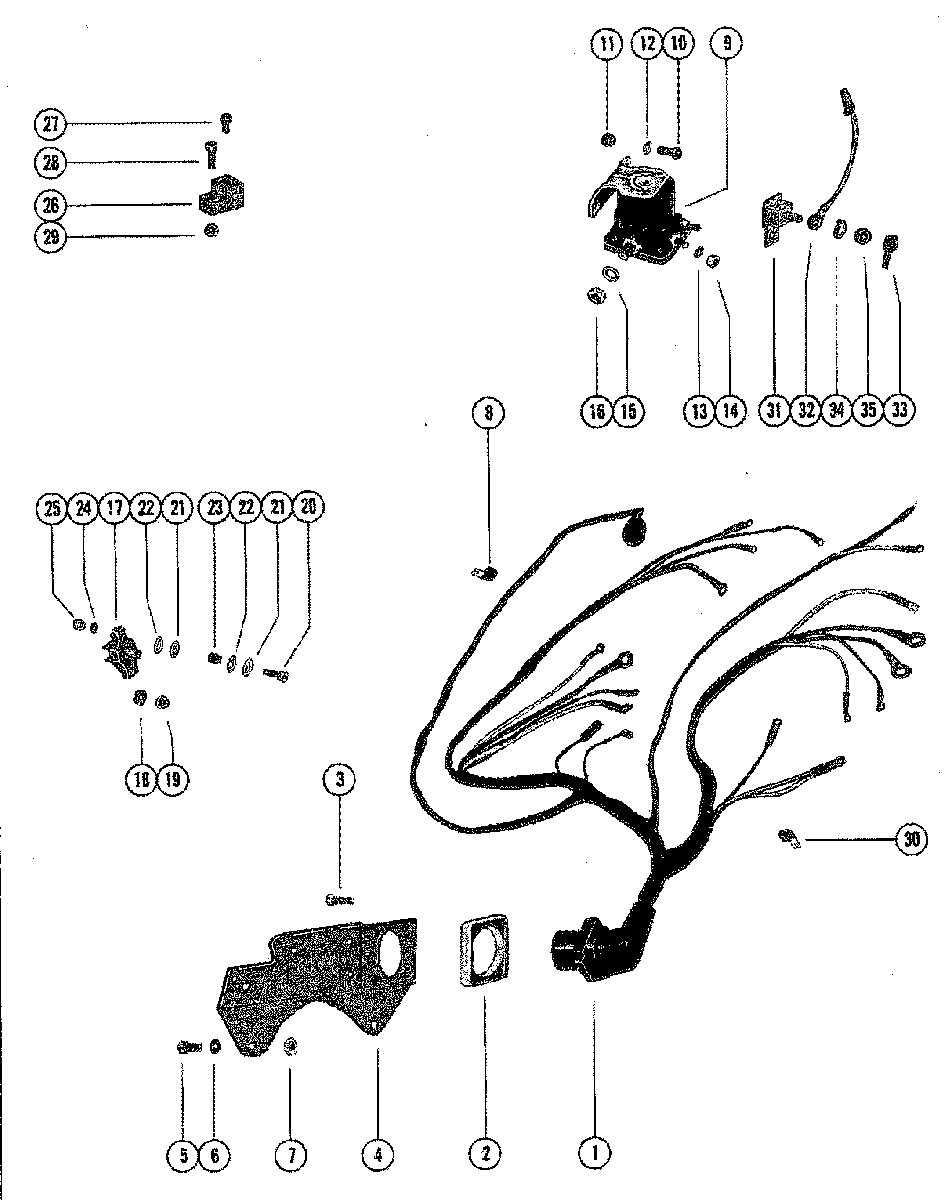

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461
-
№АртикулНазвание
-
184-86676A2 WIRING HARNESS (STERN DRIVE) (FUSED ENGINES)WIRING HARNESS (STERN DRIVE) (FUSED ENGINES)
-
184-86676A2 WIRING HARNESS (STERN DRIVE)
SERIAL 00000000-#5820292WIRING HARNESS (STERN DRIVE)
SERIAL 00000000-#5820292 -
184-93177A1 WIRING HARNESS (STERN DRIVE)
SERIAL #5820293-09999999WIRING HARNESS (STERN DRIVE)
SERIAL #5820293-09999999 -
184-78266A1 WIRING HARNESS (INBOARD)WIRING HARNESS (INBOARD)
-
226079A2 PALTE, WIRING HARNESS TO MOUNTING BRACKETPALTE, WIRING HARNESS TO MOUNTING BRACKET
-
310-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
-
477440A1 BRACKET, MOUNTING STERN DRIVEBRACKET, MOUNTING STERN DRIVE
-
510-34354 SCREW, MOUNTING BRACKET ATTACHING (1 1/2") STERN DRIVESCREW, MOUNTING BRACKET ATTACHING (1 1/2") STERN DRIVE
-
487090T BRACKET, MOUNTING INBOARDBRACKET, MOUNTING INBOARD
-
510-805159 SCREW, MOUNTING BRACKET ATTACHING (1 1/4") INBOARDSCREW, MOUNTING BRACKET ATTACHING (1 1/4") INBOARD
-
613-35048 LOCKWASHER, MOUNTING BRACKET SCREW INBOARDLOCKWASHER, MOUNTING BRACKET SCREW INBOARD
-
711-20696 NUT, MOUNTING BRACKET SCREW INBOARDNUT, MOUNTING BRACKET SCREW INBOARD
-
864884 TAB, WIRING HARNESS (USED WITH B-84-77439)TAB, WIRING HARNESS (USED WITH B-84-77439)
-
854-55098 "J" CLIP (USED WIT B-84-86676A2)"J" CLIP (USED WIT B-84-86676A2)
-
989-76416A1 STARTER SOLENOID STERN DRIVESTARTER SOLENOID STERN DRIVE
-
1010-69028 SCREW, STARTER SOLENOID TO BRACKET (3/4") STERN DRIVESCREW, STARTER SOLENOID TO BRACKET (3/4") STERN DRIVE
-
1111-8267089 NUT, STARTE RSOLENOID SCREW STERN DRIVENUT, STARTE RSOLENOID SCREW STERN DRIVE
-
989-853654A1 STARTER SOLENOID INBOARDSTARTER SOLENOID INBOARD
-
1010-69054 SCREW, STARTER SOLENOID TO BRACKET (5/8") INBOARDSCREW, STARTER SOLENOID TO BRACKET (5/8") INBOARD
-
1213-26992 LOCKWASHER, STARTER SOLENOID SCREW INBOARDLOCKWASHER, STARTER SOLENOID SCREW INBOARD
-
1313-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
1411-68219 NUT, STARTER SOLENOID TERMINAL (10-32)NUT, STARTER SOLENOID TERMINAL (10-32)
-
1513-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
1611-68292 NUT, STARTER SOLENOID TERMINAL (5/16")NUT, STARTER SOLENOID TERMINAL (5/16")
-
1788-65093 CIRCUIT BREAKER (SERIAL #4887829 AND BELOW)CIRCUIT BREAKER (SERIAL #4887829 AND BELOW)
-
1813-26996 LOCKWASHER, CIRCUIT BREAKER TERMINALLOCKWASHER, CIRCUIT BREAKER TERMINAL
-
1911-68219 NUT, CIRCUIT BREAKER TERMINALNUT, CIRCUIT BREAKER TERMINAL
-
2010-24637 SCREW, CIRCUIT BREAKER TO BRACKET (7/8") - STERN DRIVESCREW, CIRCUIT BREAKER TO BRACKET (7/8") - STERN DRIVE
-
2010-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1") INBOARDSCREW, CIRCUIT BREAKER TO BRACKET (1") INBOARD
-
2125-61999 GROMMET, CIRCUIT BREAKER SCREW INBOARDGROMMET, CIRCUIT BREAKER SCREW INBOARD
-
2212-47960 WASHER, CIRCUIT BREAKER SCREW INBOARDWASHER, CIRCUIT BREAKER SCREW INBOARD
-
2323-61998 SPACER, CIRCUIT BREAKER GROMMET INBOARDSPACER, CIRCUIT BREAKER GROMMET INBOARD
-
2412-30164 WASHER, CIRUCIT BREAKER SCREWWASHER, CIRUCIT BREAKER SCREW
-
2511-46438 NUT, CIRCUIT BREAKER SCREWNUT, CIRCUIT BREAKER SCREW
-
2686-45915 TERMINAL BLOCK, ROTARY TRIM SENDER STERN DRIVETERMINAL BLOCK, ROTARY TRIM SENDER STERN DRIVE
-
2710-62568 SCREW, ROTARY TRIM SENDER LEADS STERN DRIVESCREW, ROTARY TRIM SENDER LEADS STERN DRIVE
-
2810-22391 SCREW, TERMINAL BLOCK (5/8") STERN DRIVESCREW, TERMINAL BLOCK (5/8") STERN DRIVE
-
2911-46438 NUT, TERMINAL BLOCK SCREW STERN DRIVENUT, TERMINAL BLOCK SCREW STERN DRIVE
-
3054-78945 "J" CLIP, WIRING HARNESS"J" CLIP, WIRING HARNESS
-
3054-78944 "J" CLIP, WIRING HARNESS INBOARD"J" CLIP, WIRING HARNESS INBOARD
-
3054-73668 "J" CLIP, WIRING HARNESS INBOARD"J" CLIP, WIRING HARNESS INBOARD
-
3188-79023T56 FUSE ASSEMBLY, 55 AMP FUSED ENGINESFUSE ASSEMBLY, 55 AMP FUSED ENGINES
-
3188-79023T90 FUSE ASSEMBLY, 90 AMP FUSED ENGINESFUSE ASSEMBLY, 90 AMP FUSED ENGINES
-
3284-63434A1 JUMPER WIRE, 90 AMP FUSE FUSED ENGINESJUMPER WIRE, 90 AMP FUSE FUSED ENGINES
-
3385-79695T BOOT, INSULATOR - FUSE STUD FUSED ENGINESBOOT, INSULATOR - FUSE STUD FUSED ENGINES
-
3413-24669 LOCKWASEHR, FUSE - STUD NUT FUSED ENGINESLOCKWASEHR, FUSE - STUD NUT FUSED ENGINES
-
3511-21825 NUT, FUSE STUD FUSED ENGINESNUT, FUSE STUD FUSED ENGINES
