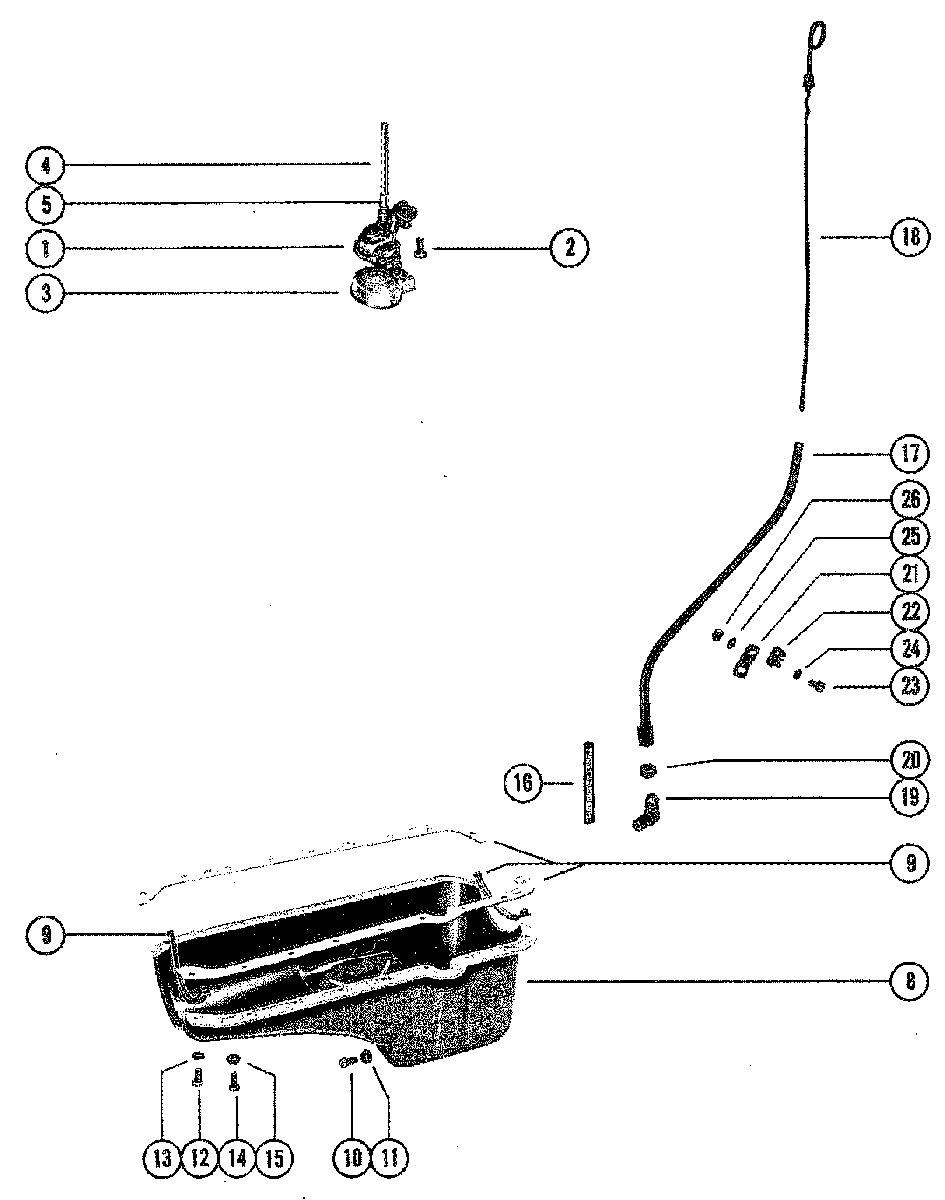

OIL PAN AND OIL PUMP для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    17617 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    10-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")
    BOLT, OIL PUMP TO CYLINDER BLOCK (2")
  • 3
    72645 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 4
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 8
    78778 OIL PAN (STERN DRIVE) PORT MOUNTED DIPSTICK
    OIL PAN (STERN DRIVE) PORT MOUNTED DIPSTICK
  • 8
    87758A1 OIL PAN (INBOARD) PORT MOUNTED DIPSTICK
    OIL PAN (INBOARD) PORT MOUNTED DIPSTICK
  • 9
    27-85817A1 GASKET SET, OIL PAN PORT MOUNTED DIPSTICK
    GASKET SET, OIL PAN PORT MOUNTED DIPSTICK
  • 8
    94130 OIL PAN (STERN DRIVE) STBD. MOUNTED DIPSTICK
    OIL PAN (STERN DRIVE) STBD. MOUNTED DIPSTICK
  • 9
    27-90458A1 GASKET SET, OIL PAN STBD. MOUNTED DIPSTICK
    GASKET SET, OIL PAN STBD. MOUNTED DIPSTICK
  • 10
    10-49956 SCREW, OIL PAN DRAIN STERN DRIVE
    SCREW, OIL PAN DRAIN STERN DRIVE
  • 11
    27-8M0077608 GASKET, OIL PANDDRAIN SCREW STERN DRIVE
    GASKET, OIL PANDDRAIN SCREW STERN DRIVE
  • 12
    10-72644 SCREW, OIL PAN TO CYL. BLOCK (5/16-18X7/8) STERN DRIVE
    SCREW, OIL PAN TO CYL. BLOCK (5/16-18X7/8) STERN DRIVE
  • 13
    13-39107 WASHER, OIL PAN SCREW STERN DRIVE
    WASHER, OIL PAN SCREW STERN DRIVE
  • 14
    10-8M0040582 SCREW, OIL PAN TO CUL. BLOCK (1/4-20X7/8") STERN DRIVE
    SCREW, OIL PAN TO CUL. BLOCK (1/4-20X7/8") STERN DRIVE
  • 10
    22-36373 PLUG, PIPE-OIL PAN DRAIN INBOARD
    PLUG, PIPE-OIL PAN DRAIN INBOARD
  • 12
    10-55714 SCREW, OIL PAN TO BLOCK (5/16 - 18 X 7/8) INBOARD
    SCREW, OIL PAN TO BLOCK (5/16 - 18 X 7/8) INBOARD
  • 13
    13-26992 LOCKWASHER, OIL PAN SCREW INBOARD
    LOCKWASHER, OIL PAN SCREW INBOARD
  • 14
    10-55715 SCREW, OIL PAN TO BLOCK (1/4-20X7/8) INBOARD
    SCREW, OIL PAN TO BLOCK (1/4-20X7/8) INBOARD
  • 15
    13-26993 LOCKWASHER, OIL PAN SCREW INBOARD
    LOCKWASHER, OIL PAN SCREW INBOARD
  • 16
    72950 TUBE, OIL LEVEL (LOWER) STRN DRIVE-PORT MOUNTED DIPSTICK
    TUBE, OIL LEVEL (LOWER) STRN DRIVE-PORT MOUNTED DIPSTICK
  • 17
    32-72539 TUBE, OIL LEVEL GAUGE (UPPER)
    STRN DRIVE-PORT MOUNTED DIPSTICK
    TUBE, OIL LEVEL GAUGE (UPPER)
    STRN DRIVE-PORT MOUNTED DIPSTICK
  • 18
    77454 GAUGE, OIL LEVEL (DIPSTICK)
    STRN DRIVE-PORT MOUNTED DIPSTICK
    GAUGE, OIL LEVEL (DIPSTICK)
    STRN DRIVE-PORT MOUNTED DIPSTICK
  • 17
    92078A2 DIPSTICK TUBE ASSEMBLY
    STERN DRIVE-STBD. MOUNTED DIPSTICK
    DIPSTICK TUBE ASSEMBLY
    STERN DRIVE-STBD. MOUNTED DIPSTICK
  • --
    54-92084 CLIP, DIPSTICK TUBE TO EXHAUST MANIFOLD
    STERN DRIVE-STBD. MOUNTED DIPSTICK
    CLIP, DIPSTICK TUBE TO EXHAUST MANIFOLD
    STERN DRIVE-STBD. MOUNTED DIPSTICK
  • 18
    73232A1 GAUGE, OIL LEVEL (DIPSTICK)
    STERN DRIVE-STBD. MOUNTED DIPSTICK
    GAUGE, OIL LEVEL (DIPSTICK)
    STERN DRIVE-STBD. MOUNTED DIPSTICK
  • 17
    86890A2 TUBE, OIL LEVEL GAUGE INBOARD
    TUBE, OIL LEVEL GAUGE INBOARD
  • 18
    86194220 GAUGE, OIL LEVEL (DIPSTICK) INBOARD
    GAUGE, OIL LEVEL (DIPSTICK) INBOARD
  • 19
    22-47625 ELBOW, OIL LEVEL GAUGE TO OIL PAN INBOARD
    ELBOW, OIL LEVEL GAUGE TO OIL PAN INBOARD
  • 20
    11-47626 NUT, OIL LEVEL GAUGE TUBE INBOARD
    NUT, OIL LEVEL GAUGE TUBE INBOARD
  • 21
    48133 BRACKET, OIL LEVEL GAUGE INBOARD
    BRACKET, OIL LEVEL GAUGE INBOARD
  • 22
    54-475451 CLIP, OIL LEVEL TUBE INBOARD
    CLIP, OIL LEVEL TUBE INBOARD
  • 23
    10-33524 SCREW, CLIP TO BRACKET (5/8") INBOARD
    SCREW, CLIP TO BRACKET (5/8") INBOARD
  • 24
    13-39107 LOCKWASHER, CLIP SCREW INBOARD
    LOCKWASHER, CLIP SCREW INBOARD
  • 25
    12-20553 WASHER, OIL LEVEL TUBE BRACKET INBOARD
    WASHER, OIL LEVEL TUBE BRACKET INBOARD
  • 26
    11-22053 NUT, CLIP SCREW INBOARD
    NUT, CLIP SCREW INBOARD
