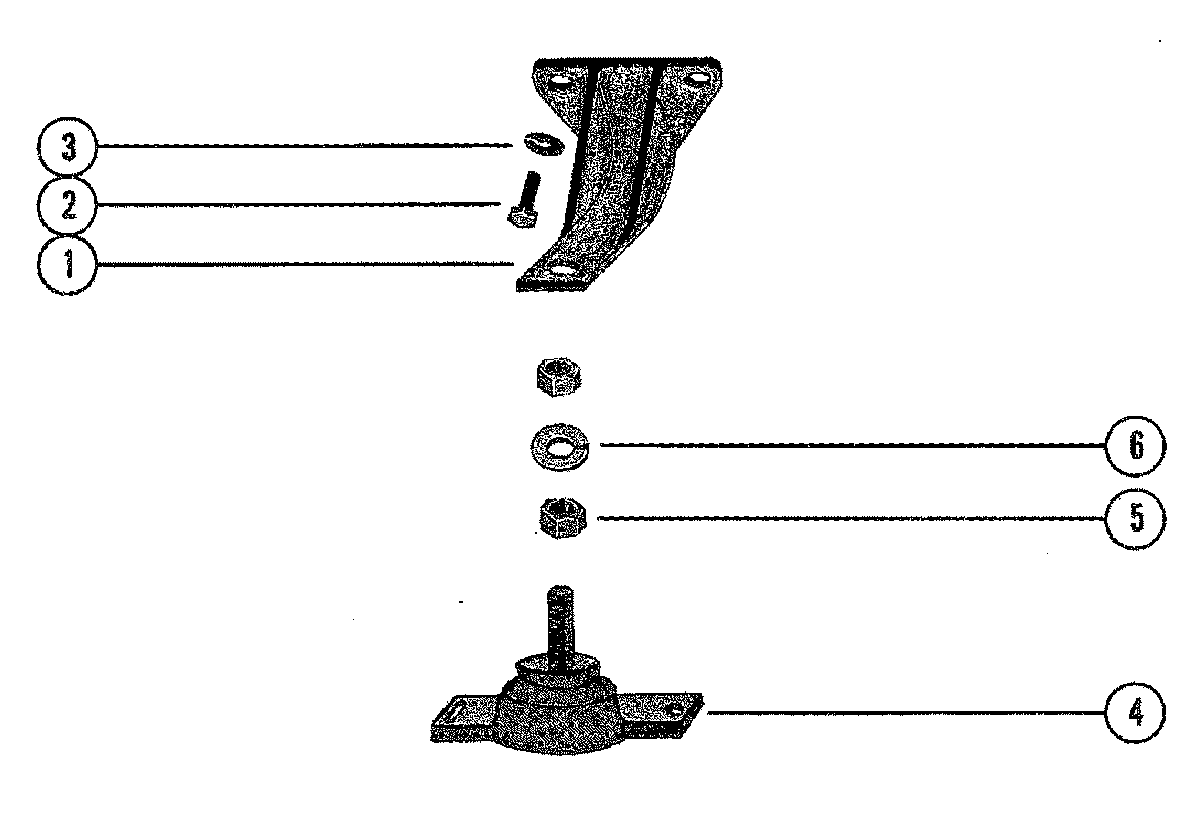

ENGINE MOUNTING для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, MOUNTING - ENGINE
    SERIAL 00000000-#4941054
    BRACKET, MOUNTING - ENGINE
    SERIAL 00000000-#4941054
  • 2
    10-37612 SCREW, BRACKET TO ENGINE (1 1/4")
    SERIAL 00000000-#4941054
    SCREW, BRACKET TO ENGINE (1 1/4")
    SERIAL 00000000-#4941054
  • 1
    79550A1 BRACKET, MOUNTING - ENGINE
    SERIAL #4941055-09999999
    BRACKET, MOUNTING - ENGINE
    SERIAL #4941055-09999999
  • 2
    10-37612 SCREW, BRACKET TO ENGINE (1 1/4")
    SERIAL #4941055-09999999
    SCREW, BRACKET TO ENGINE (1 1/4")
    SERIAL #4941055-09999999
  • 2
    10-48424 SCREW, BRACKET TO ENGINE (1 5/8")
    SCREW, BRACKET TO ENGINE (1 5/8")
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 4
    66284A2 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 5
    11-20739 NUT, JAM - MOUNTING BRACKET
    NUT, JAM - MOUNTING BRACKET
  • 6
    13-68102 LOCKWASHER, MOUNTING BRACKET
    LOCKWASHER, MOUNTING BRACKET
