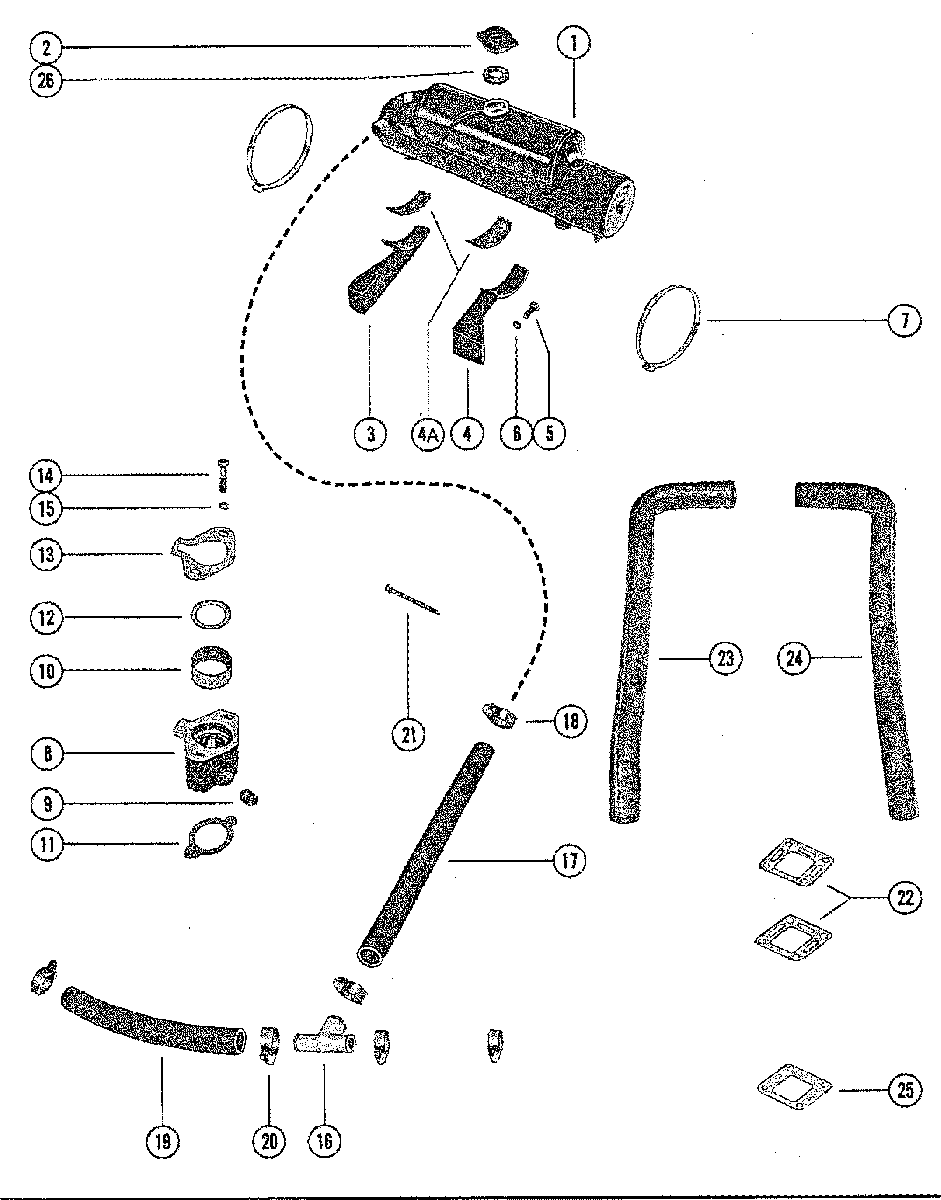

FRESH WATER COOLING KIT для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    74643A1 FRESH WATER COOLING KIT
    FRESH WATER COOLING KIT
  • 2
    36-55143Q CAP, PRESSURE - HEAT EXCHANGER
    CAP, PRESSURE - HEAT EXCHANGER
  • 3
    74633A1 BRACKET, MOUNTING (PORT)
    BRACKET, MOUNTING (PORT)
  • 4
    74632A1 BRACKET, MOUNTING (STARBOARD)
    BRACKET, MOUNTING (STARBOARD)
  • 4A
    772233 PAD, MOUNTING BRACKET
    PAD, MOUNTING BRACKET
  • 5
    10-34353 SCREW, STARBOARD MOUNTING BRACKET TO ENGINE (1#)
    SCREW, STARBOARD MOUNTING BRACKET TO ENGINE (1#)
  • 6
    13-35048 LOCKWASHER, STARBOARD MOUNTING BRACKET SCREWS
    LOCKWASHER, STARBOARD MOUNTING BRACKET SCREWS
  • 7
    54-815504372 CLAMP, HEAT EXCHANGER TO MOUNTING BRACKETS
    CLAMP, HEAT EXCHANGER TO MOUNTING BRACKETS
  • 8
    55131A5 THERMOSTAT HOUSING
    THERMOSTAT HOUSING
  • 9
    22-47540 PLUG, PIPE - THERMOSTAT HOUSING
    PLUG, PIPE - THERMOSTAT HOUSING
  • 10
    23-47508T SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 11
    27-530451 GASKET, THERMOSTAT HOUSING TO MANIFOLED
    GASKET, THERMOSTAT HOUSING TO MANIFOLED
  • 12
    27-47510 GASKET THERMOSTAT - MIDDLE
    GASKET THERMOSTAT - MIDDLE
  • 13
    27-488181 GASKET, THERMOSTAT HOUSING - UPPER
    GASKET, THERMOSTAT HOUSING - UPPER
  • 14
    10-48115 SCREW, THERMOSTAT HOUSING AND COVER TO INTAKE MANIFOLD (3 1)
    SCREW, THERMOSTAT HOUSING AND COVER TO INTAKE MANIFOLD (3 1)
  • 15
    13-35048 LOCKWASHER, THERMOSTAT HOUSING AND COVER SCREW
    LOCKWASHER, THERMOSTAT HOUSING AND COVER SCREW
  • 16
    22-63067 TEE, FITTING
    TEE, FITTING
  • 17
    32-8M0062665 HOSE, HEAT EXCHANGER TO TEE (23 1/2")
    HOSE, HEAT EXCHANGER TO TEE (23 1/2")
  • 18
    54-815504220 CLAMP, HOSE TO HEAT EXCHANGER AND TEE
    CLAMP, HOSE TO HEAT EXCHANGER AND TEE
  • 19
    32-8M0062614 HOSE, TEE TO EXHAUST ELBOW (18 1/2")
    HOSE, TEE TO EXHAUST ELBOW (18 1/2")
  • 20
    54-815504220 CLAMP, HOSE TO TEE AND EXHAUST MANIFOLD
    CLAMP, HOSE TO TEE AND EXHAUST MANIFOLD
  • 21
    61990 STA-STRAP
    STA-STRAP
  • 22
    27-48042 GASKET, FACE PLATE TO EXHAUST ELBOW AND MANIFOLD
    GASKET, FACE PLATE TO EXHAUST ELBOW AND MANIFOLD
  • 23
    32-57777 HOSE, THERMOSTAT HOUSING TO MANIFOLD (PORT)
    HOSE, THERMOSTAT HOUSING TO MANIFOLD (PORT)
  • 24
    32-57776 HOSE, THERMOSTAT HOUSING TO MANIFOLD (STARBOARD)
    HOSE, THERMOSTAT HOUSING TO MANIFOLD (STARBOARD)
  • 25
    74829 PLATE, EXHAUST MANIFOLD TO EXHAUST ELBOW
    PLATE, EXHAUST MANIFOLD TO EXHAUST ELBOW
  • 26
    27-71614 GASKET, PRESSURE CAP
    GASKET, PRESSURE CAP
  • - -
    71587A10 COOLANT RECOVERY KIT(SEE NOTE #1 BELOW)
    COOLANT RECOVERY KIT(SEE NOTE #1 BELOW)
