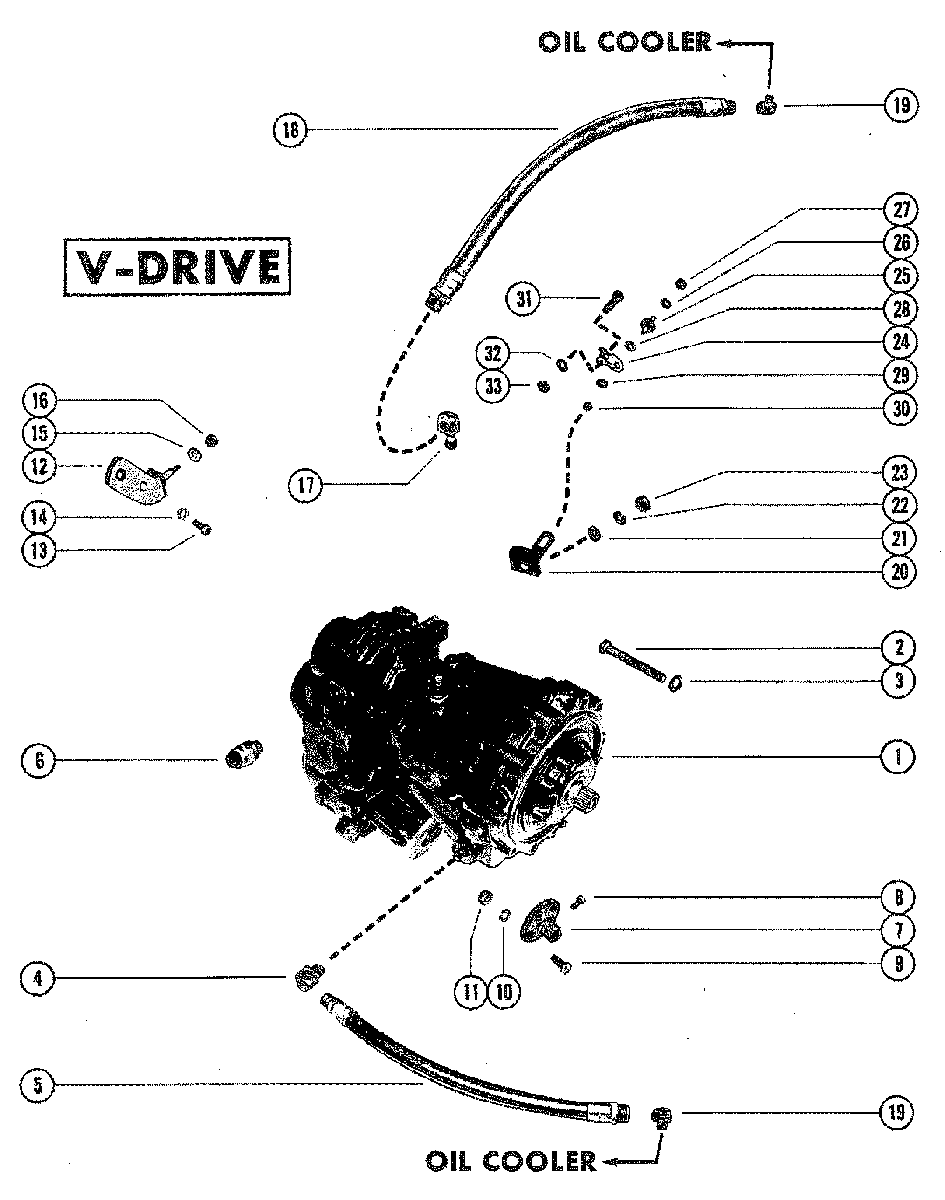

TRANSMISSION AND RELATED PARTS (V-DRIVE) для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    60953A13 TRANSMISSION, V-DRIVE (DIRECT DRIVE)
    TRANSMISSION, V-DRIVE (DIRECT DRIVE)
  • 1
    60588A11 TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
    TRANSMISSION, V-DRIVE (1.51:1 REDUCTION)
  • 1
    60954A11 TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
    TRANSMISSION, V-DRIVE (1.99:1 REDUCTION)
  • 1
    60955A10 TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
    TRANSMISSION, V-DRIVE (2.49:1 REDUCTION)
  • 1
    60956A11 TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)
    TRANSMISSION, V-DRIVE (3.14:1 REDUCTION)
  • 2
    10-47724 SCREW, TRANSMISSION TO ENGINE (3")
    SCREW, TRANSMISSION TO ENGINE (3")
  • 3
    13-32993 LOCKWASHER, TRANSMISSION SCREW
    LOCKWASHER, TRANSMISSION SCREW
  • 4
    22-63824 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
  • 5
    32-475169 HOSE, OIL COOLER TO TRANSMISSION (37")
    HOSE, OIL COOLER TO TRANSMISSION (37")
  • 6
    47613 SWITCH, NEUTRAL SAFETY
    SWITCH, NEUTRAL SAFETY
  • 7
    79476A1 FLANGE ASSEMBLY (1")
    FLANGE ASSEMBLY (1")
  • 7
    79476A2 FLANGE ASSEMBLY (1 1/8")
    FLANGE ASSEMBLY (1 1/8")
  • 7
    79476A3 FLANGE ASSEMBLY (1 1/4")
    FLANGE ASSEMBLY (1 1/4")
  • 7
    79476A4 FLANGE ASSEMBLY (1 3/8")
    FLANGE ASSEMBLY (1 3/8")
  • 7
    79476A5 FLANGE ASSEMBLY (1 1/2")
    FLANGE ASSEMBLY (1 1/2")
  • 7
    79476A6 FLANGE ASSEMBLY (1 3/4")
    FLANGE ASSEMBLY (1 3/4")
  • 7
    79476A7 FLANGE ASSEMBLY (2")
    FLANGE ASSEMBLY (2")
  • 8
    10-60171 SCREW, FLANGE TO PROPELLER SHAFT (1 1/4") SEE NOTE BELOW
    SCREW, FLANGE TO PROPELLER SHAFT (1 1/4") SEE NOTE BELOW
  • 8
    10-60171 SCREW, FLANGE TO PROPELLER SHAFT (1")
    SCREW, FLANGE TO PROPELLER SHAFT (1")
  • 8
    10-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4")
    SCREW, FLANGE TO PROPELLER SHAFT (3/4")
  • 9
    10-60106 SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")
    SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")
  • 10
    13-32993 LOCKWASHER, FLANGE SCREW
    LOCKWASHER, FLANGE SCREW
  • 11
    11-22024 NUT, FLANGE SCREW
    NUT, FLANGE SCREW
  • 12
    63815A1 BRACKET, SHIFT CABLE
    BRACKET, SHIFT CABLE
  • 13
    10-65746 SCREW, BRACKET TO FLYWHEEL HOUSING
    SCREW, BRACKET TO FLYWHEEL HOUSING
  • 14
    13-26992 LOCKWASHER, BRACKET TO TRANSMISSION SCREW
    LOCKWASHER, BRACKET TO TRANSMISSION SCREW
  • 15
    12-56681 WASHER, SHIFT CABLE TO BRACKET STUD
    WASHER, SHIFT CABLE TO BRACKET STUD
  • 16
    11-46438 NUT, SHIFT CABLE TO BRACKET STUD (10-32)
    NUT, SHIFT CABLE TO BRACKET STUD (10-32)
  • 17
    22-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
  • 18
    32-475169 HOSE, TRANSMISSION TO OIL COOLER (33")
    HOSE, TRANSMISSION TO OIL COOLER (33")
  • 19
    22-47629 ELBOW, HOSE TO OIL COOLER (90 DEGREES)
    ELBOW, HOSE TO OIL COOLER (90 DEGREES)
  • 20
    48515 LEVER, SHIFT - TRANSMISSION
    LEVER, SHIFT - TRANSMISSION
  • 21
    12-20722 WASHER, SHIFT LEVER
    WASHER, SHIFT LEVER
  • 22
    13-26993 LOCKWASHER, SHIFT LEVER
    LOCKWASHER, SHIFT LEVER
  • 23
    11-22053 NUT, SHIFT LEVER
    NUT, SHIFT LEVER
  • 24
    48652 ADAPTOR, SHIFT CABLE
    ADAPTOR, SHIFT CABLE
  • 25
    16-48680 STUD, SHIFT CABLE ADAPTOR
    STUD, SHIFT CABLE ADAPTOR
  • 26
    12-20533 WASHER, SHIFT CABLE
    WASHER, SHIFT CABLE
  • 27
    11-20184 NUT, SHIFT CABLE
    NUT, SHIFT CABLE
  • 28
    13-29402 WAVE WASHER, SHIFT
    WAVE WASHER, SHIFT
  • 29
    12-56681 WASHER, SHIFT CABLE
    WASHER, SHIFT CABLE
  • 30
    11-46438 NUT, SHIFT CABLE
    NUT, SHIFT CABLE
  • 31
    10-20639 SCREW, SHIFT CABLE
    SCREW, SHIFT CABLE
  • 32
    12-22753 WASHER,SHIFT CABLE
    WASHER,SHIFT CABLE
  • 33
    11-29250 NUT, SHIFT CABLE
    NUT, SHIFT CABLE
