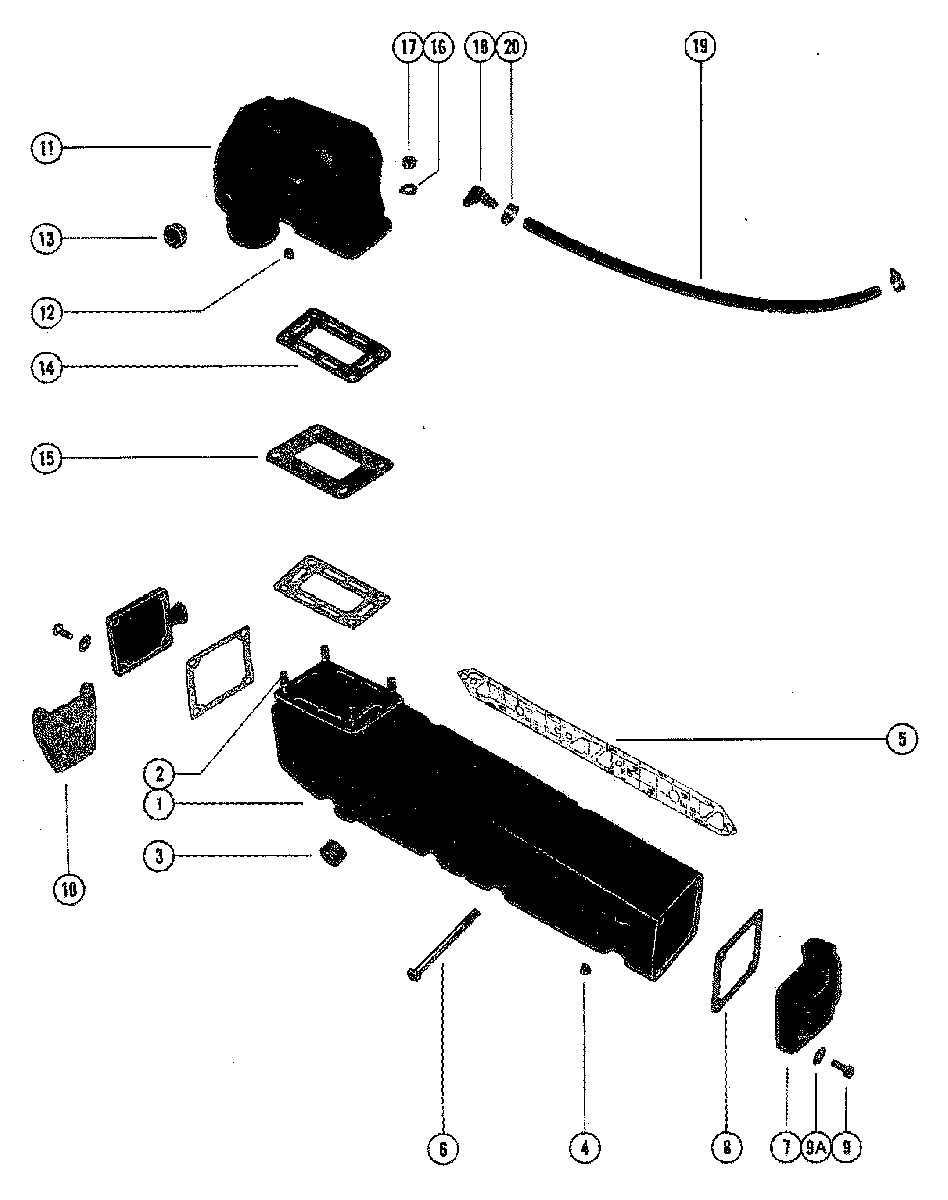

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    77234A7 EXHAUST MANIFOLD ASSEMBLY, PORT
    EXHAUST MANIFOLD ASSEMBLY, PORT
  • 1
    77235A8 EXHAUST MANIFOLD ASSEMBLY, STARBOARD
    EXHAUST MANIFOLD ASSEMBLY, STARBOARD
  • 2
    16-49545 STUD, EXHAUST MANIFOLD TO EBOW (1 3/4")
    STUD, EXHAUST MANIFOLD TO EBOW (1 3/4")
  • 3
    22-48118 PLUG, EXHAUST MANIFOLD
    PLUG, EXHAUST MANIFOLD
  • 4
    45-35878 PLUG, PIPE-EXHAUST MANIFOLD
    PLUG, PIPE-EXHAUST MANIFOLD
  • 5
    27-33395 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 6
    10-53728 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (4 5/8")
    SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (4 5/8")
  • 7
    60252A2 END CAP/CONNECTOR, EXHAUST MANIFOLD
    END CAP/CONNECTOR, EXHAUST MANIFOLD
  • 8
    27-480431 GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
    GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
  • 9
    10-35386 SCREW, END CAP TO MANIFOLD (1") STERN DRIVE
    SCREW, END CAP TO MANIFOLD (1") STERN DRIVE
  • 9
    10-73657 SCREW, END CAP TO MANIFOLD (1 1/2") STERN DRIVE
    SCREW, END CAP TO MANIFOLD (1 1/2") STERN DRIVE
  • 9
    10-35386 SCREW, END CAP TO MANIFOLD (1") INBOARD
    SCREW, END CAP TO MANIFOLD (1") INBOARD
  • 9
    10-74824 SCREW, END CAP AND FUEL FILTER BRACKET (1 1/4") INBOARD
    SCREW, END CAP AND FUEL FILTER BRACKET (1 1/4") INBOARD
  • 9A
    12-814806 WASHER, END CAP SCREW STERN DRIVE
    WASHER, END CAP SCREW STERN DRIVE
  • 10
    54869 BRACKET, SOLENOID MOUNTING (STARBOARD SIDE) STERN DRIVE
    BRACKET, SOLENOID MOUNTING (STARBOARD SIDE) STERN DRIVE
  • 11
    76351A04 EXHAUST ELBOW ASSEMBLY (STERN DRIVE)
    EXHAUST ELBOW ASSEMBLY (STERN DRIVE)
  • 11
    76771A2 EXHAUST ELBOW ASSEMBLY (INBOARD)
    EXHAUST ELBOW ASSEMBLY (INBOARD)
  • 12
    45-35878 PLUG, PIPE-EXHAUST ELBOW
    PLUG, PIPE-EXHAUST ELBOW
  • 13
    22-416223 PLUG, EXHAUST ELBOW
    PLUG, EXHAUST ELBOW
  • 14
    27-997772 GASKET, ELBOW TO MANIFOLD
    GASKET, ELBOW TO MANIFOLD
  • 15
    60207 PLATE, EXHAUST ELBOW TO MANIFOLD (STERN DRIVE)
    PLATE, EXHAUST ELBOW TO MANIFOLD (STERN DRIVE)
  • 15
    55730 PLATE, EXHAUST ELBOW TO MANIFOLD (INBOARD)
    PLATE, EXHAUST ELBOW TO MANIFOLD (INBOARD)
  • 16
    13-35048 LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 17
    11-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 18
    22-866725 FITTING, EXHAUST ELBOW
    FITTING, EXHAUST ELBOW
