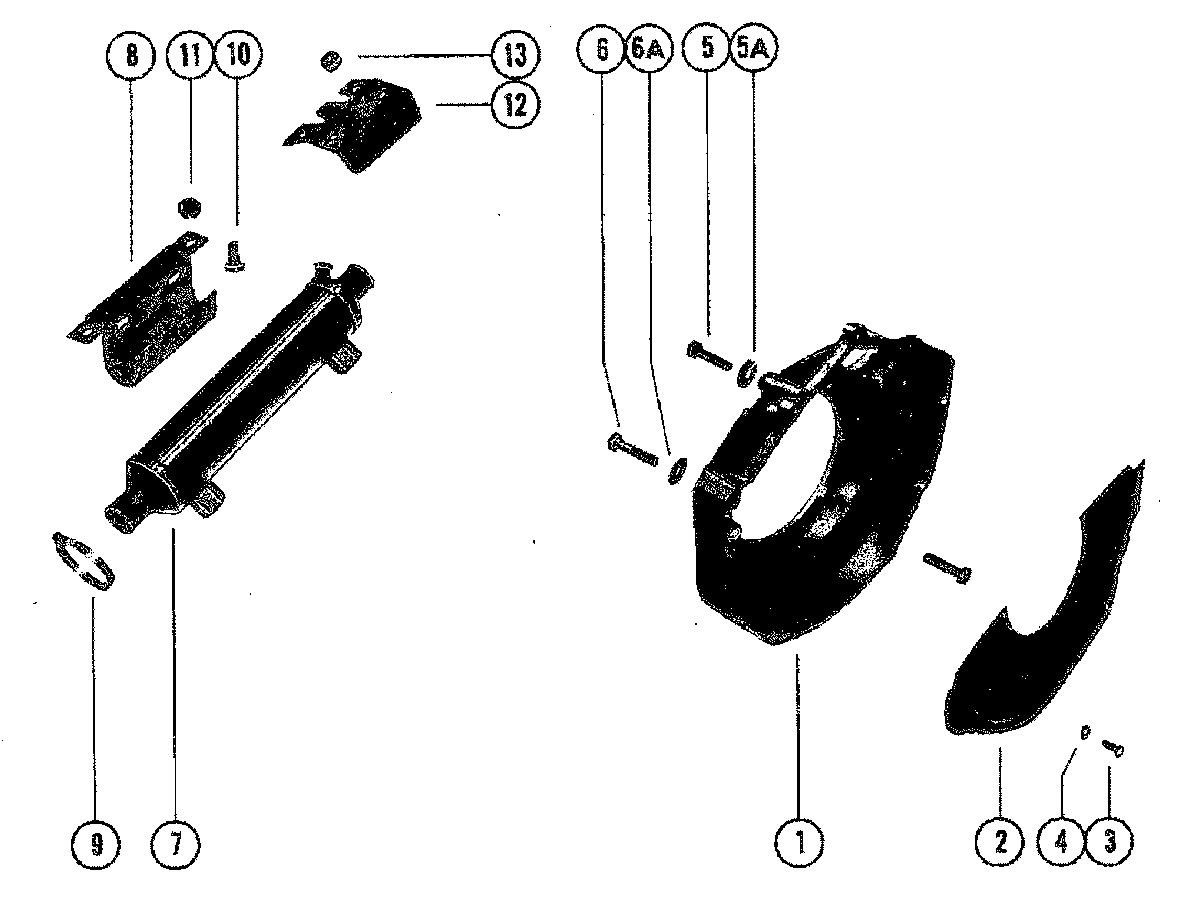

FLYWHEEL, HOUSING AND OIL COOLER для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING, FLYWHEEL
    HOUSING, FLYWHEEL
  • 2
    818718A4 COVER, FLYWHEEL HOUSING
    COVER, FLYWHEEL HOUSING
  • 3
    10-98253 SCREW, COVER TO FLYWHEEL HOUSING (1/2")
    SCREW, COVER TO FLYWHEEL HOUSING (1/2")
  • 4
    13-26992 LOCKWASHER, COVER SCREW
    LOCKWASHER, COVER SCREW
  • 5
    10-34353 SCREW, FLYWHEEL HOUSING TO ENGINE (1")
    SCREW, FLYWHEEL HOUSING TO ENGINE (1")
  • 5A
    13-35048 LOCKWASHER, FLYWHEEL HOUSING SCREW
    LOCKWASHER, FLYWHEEL HOUSING SCREW
  • 6
    10-63826 SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")
    SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")
  • 6A
    12-20572 WASHER, FLYWHEEL HOUSING TO ENGINE SCREW
    WASHER, FLYWHEEL HOUSING TO ENGINE SCREW
  • 7
    63832A1 COOLER, OIL (9")
    COOLER, OIL (9")
  • 7
    63832T COOLER, OIL (12")-V-DRIVE ONLY
    COOLER, OIL (12")-V-DRIVE ONLY
  • 8
    49748A1 BRACKET ASSEMBLY, OIL COOLER
    BRACKET ASSEMBLY, OIL COOLER
  • 9
    54-815504228 CLAMP, OIL COOLER TO BRACKET
    CLAMP, OIL COOLER TO BRACKET
  • 10
    10-98261 SCREW, OIL COOLER BRACKET (3/4")
    SCREW, OIL COOLER BRACKET (3/4")
  • 11
    11-52412 NUT, OIL COOLER BRACKET SCREW
    NUT, OIL COOLER BRACKET SCREW
  • 12
    49735A1 BRACKET, OIL COOLER
    BRACKET, OIL COOLER
  • 13
    23-905201 SPACER, OIL COOLER BRACKET
    SPACER, OIL COOLER BRACKET
