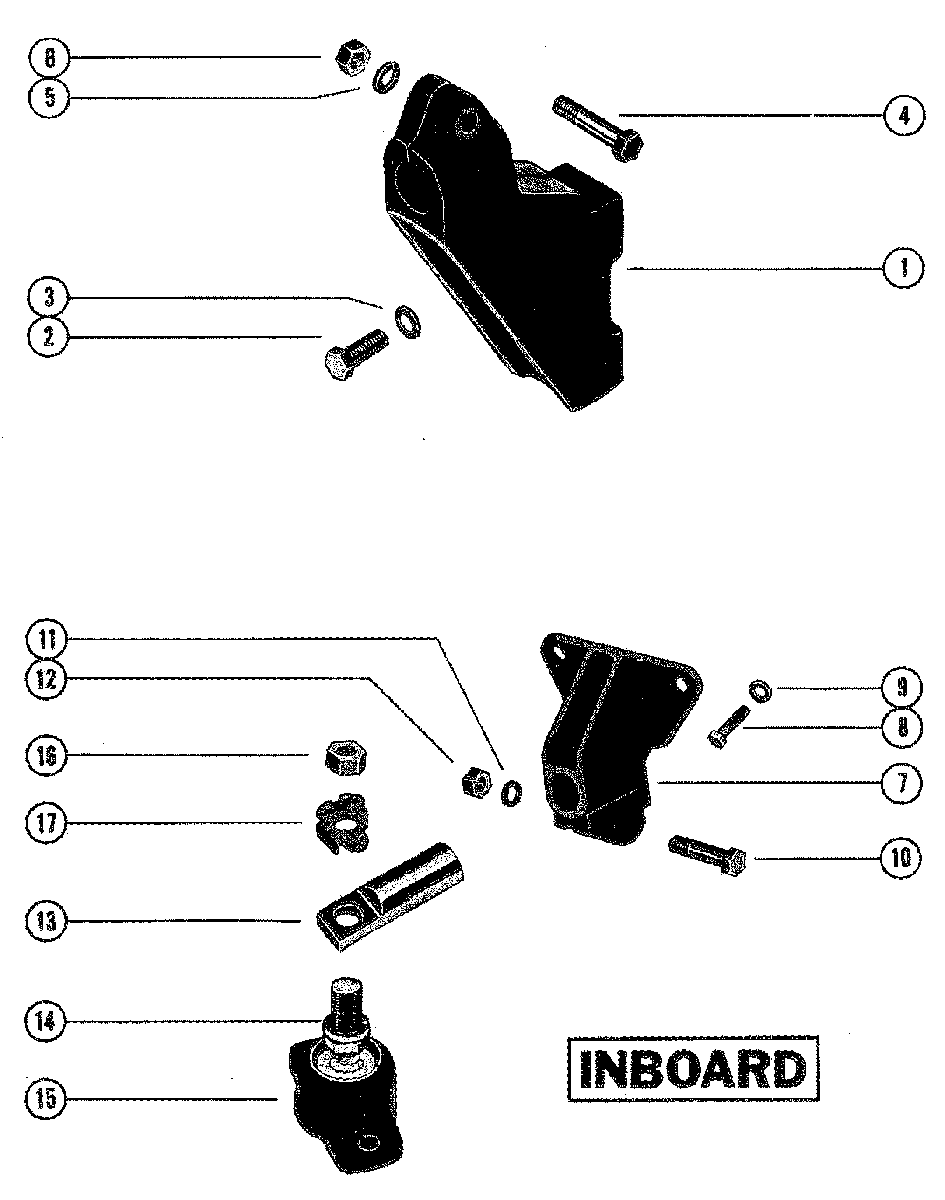

TRANSMISSION AND ENGINE MOUNTING (INBOARD) для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    66417T BRACKET, MOUNTING - TRANSMISSION (REAR)
    BRACKET, MOUNTING - TRANSMISSION (REAR)
  • 2
    10-37269 SCREW, BRACKET TO TRANSMISSION (2")
    SCREW, BRACKET TO TRANSMISSION (2")
  • 3
    13-32993 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 4
    10-57357 SCREW, CLAMPING - MOUNTING BRACKET (2 1/4")
    SCREW, CLAMPING - MOUNTING BRACKET (2 1/4")
  • 5
    13-32993 LOCKWASHER, CLAMPING SCREW
    LOCKWASHER, CLAMPING SCREW
  • 6
    11-82670814 NUT, CLAMPING SCREW
    NUT, CLAMPING SCREW
  • 7
    71128A2 BRACKET, MOUNTING - ENGINE (FRONT)
    BRACKET, MOUNTING - ENGINE (FRONT)
  • 8
    10-37612 SCREW, MOUNTING BRACKET TO ENGINE (1 1/4")
    SCREW, MOUNTING BRACKET TO ENGINE (1 1/4")
  • 9
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 8
    10-48424 SCREW, MOUNTING BRACKET TO ENGINE (1 5/8")
    SCREW, MOUNTING BRACKET TO ENGINE (1 5/8")
  • 9
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 10
    10-37269 SCREW, CLAMPING - MOUNTING BRACKET (2")
    SCREW, CLAMPING - MOUNTING BRACKET (2")
  • 11
    13-32993 LOCKWASHER, CLAMPING SCREW
    LOCKWASHER, CLAMPING SCREW
  • 12
    11-82670814 NUT, CLAMPING SCREW
    NUT, CLAMPING SCREW
  • 13
    66166A4 TRUNNION, ADJUSTING - MOUNTING BRACKET
    TRUNNION, ADJUSTING - MOUNTING BRACKET
  • 14
    13-68102 LOCKWASHER, MOUNTING BRACKET
    LOCKWASHER, MOUNTING BRACKET
  • 15
    66284A2 BASE, ENGINE MOUNT
    BASE, ENGINE MOUNT
  • 16
    11-20739 NUT, JAM - ENGINE MOUNT BASE
    NUT, JAM - ENGINE MOUNT BASE
  • 17
    14-66658 TAB WASHER, BASE NUT
    TAB WASHER, BASE NUT
