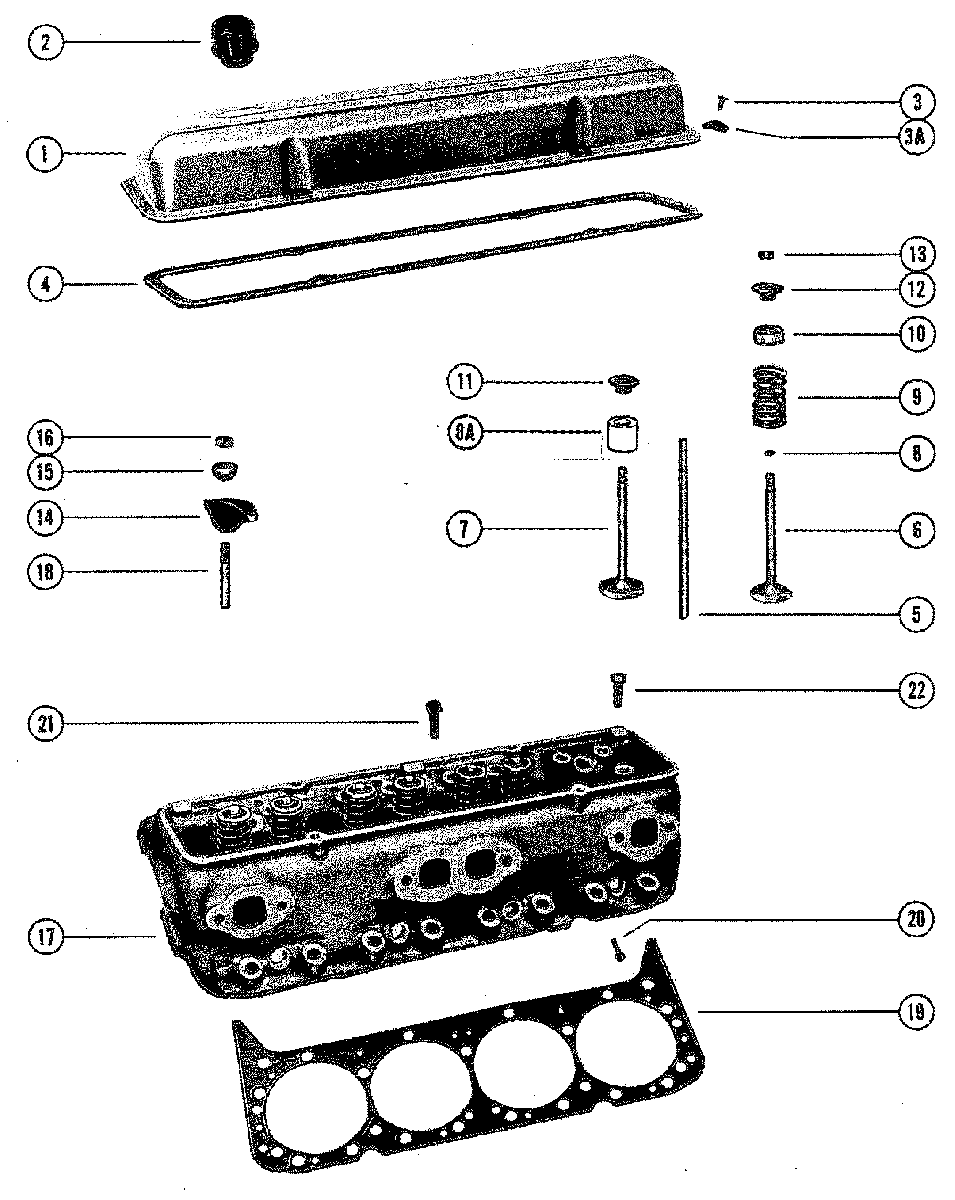

ROCKER COVER AND CYLINDER HEAD для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    79961T1 COVER, ROCKER
    COVER, ROCKER
  • -
    37-77552 DECAL, HORSEPOWER (198 H.P.) - STARBOARD STERN DRIVE
    DECAL, HORSEPOWER (198 H.P.) - STARBOARD STERN DRIVE
  • -
    37-79121 DECAL, HORSEPOWER (198 H.P.) - PORT STERN DRIVE
    DECAL, HORSEPOWER (198 H.P.) - PORT STERN DRIVE
  • -
    37-77254 DECAL, ROCKER COVER (WAVES)
    DECAL, ROCKER COVER (WAVES)
  • -
    37-77558 DECAL, HORSEPOWER (198 H.P.) INBOARD
    DECAL, HORSEPOWER (198 H.P.) INBOARD
  • -
    37-77255 DECAL, ROCKER COVER (WAVES) INBOARD
    DECAL, ROCKER COVER (WAVES) INBOARD
  • 2
    17345 CAP, OIL FILLER
    CAP, OIL FILLER
  • 3
    10-8M0040582 SCREW, ROCKER VALVE COVER TO CYLINDER HEAD )1/2")
    SCREW, ROCKER VALVE COVER TO CYLINDER HEAD )1/2")
  • 3
    49174 REINFORCEMENT, VALVE ROCKER COVER
    REINFORCEMENT, VALVE ROCKER COVER
  • 4
    27-11999 GASKET, ROCKER VALVE COVER
    GASKET, ROCKER VALVE COVER
  • 5
    99948 ROD, VALVE PUSH (SINGLE BALL END)
    ROD, VALVE PUSH (SINGLE BALL END)
  • 5
    99948 ROD, VALVE PUSH (DOUBLE BALL END)
    ROD, VALVE PUSH (DOUBLE BALL END)
  • 6
    85803 VALVE, EXHAUST (STANDARD) SEE NOTE BELOW
    VALVE, EXHAUST (STANDARD) SEE NOTE BELOW
  • 6
    49076 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 7
    62421 VALVE, INLET (STANDARD)
    VALVE, INLET (STANDARD)
  • 7
    62422 VALVE, INLET (.015 O.S.)
    VALVE, INLET (.015 O.S.)
  • 8
    26-34217 SEAL, VALVE
    SEAL, VALVE
  • 8
    26-8M0050563 SEAL, INTAKE VALVE - NOT USED ON ALL ENGINES
    SEAL, INTAKE VALVE - NOT USED ON ALL ENGINES
  • 9
    24-48347 SPRING, VALVE (INLET)
    SPRING, VALVE (INLET)
  • 9
    24-72642 SPRING, VALVE (EXHAUST) - SEE NOTE BELOW
    SPRING, VALVE (EXHAUST) - SEE NOTE BELOW
  • 10
    34518001 SHIELD, VALVE SPRING CAP
    SHIELD, VALVE SPRING CAP
  • 11
    48348 CAP, INLET VALVE
    CAP, INLET VALVE
  • 12
    11965 ROTATOR ASSEMBLY, VALVE SPRING - EXHAUST VALVE
    ROTATOR ASSEMBLY, VALVE SPRING - EXHAUST VALVE
  • 13
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 14
    35329 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 15
    35331 BALL UNIT, ROCKER VALVE ARM
    BALL UNIT, ROCKER VALVE ARM
  • 16
    11-34516 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 17
    938-8549 CYLINDER HEAD ASSEMBLY SEE NOTE BELOW
    WHEN PERFORMING REPAIRS ON CYLINDER HEADS, EXHAUST VALVE SPRINGS AND/OR EXHAUST VALVES, REFER TO MERCRUISER SERVICE BULLETIN 79-2 FOR CORRECT INFORMATION CONCERNING REPLAEMENT PARTS.
    CYLINDER HEAD ASSEMBLY SEE NOTE BELOW
    WHEN PERFORMING REPAIRS ON CYLINDER HEADS, EXHAUST VALVE SPRINGS AND/OR EXHAUST VALVES, REFER TO MERCRUISER SERVICE BULLETIN 79-2 FOR CORRECT INFORMATION CONCERNING REPLAEMENT PARTS.
  • 17
    938-8162 CYLINDER HEAD ASSEMBLY
    WHEN PERFORMING REPAIRS ON CYLINDER HEADS, EXHAUST VALVE SPRINGS AND/OR EXHAUST VALVES, REFER TO MERCRUISER SERVICE BULLETIN 79-2 FOR CORRECT INFORMATION CONCERNING REPLAEMENT PARTS.
    CYLINDER HEAD ASSEMBLY
    WHEN PERFORMING REPAIRS ON CYLINDER HEADS, EXHAUST VALVE SPRINGS AND/OR EXHAUST VALVES, REFER TO MERCRUISER SERVICE BULLETIN 79-2 FOR CORRECT INFORMATION CONCERNING REPLAEMENT PARTS.
  • 18
    16-34522 STUD, ROCKER VALVE ARM (.003 O.S.)
    STUD, ROCKER VALVE ARM (.003 O.S.)
  • 18
    16-34521 STUD, ROCKER VALVE ARM (.013 O.S.)
    STUD, ROCKER VALVE ARM (.013 O.S.)
  • 19
    27-75611001 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 20
    10-11968 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (1 3/4")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (1 3/4")
  • 21
    10-119671 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3")
  • 22
    10-11966 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 3/4")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 3/4")
