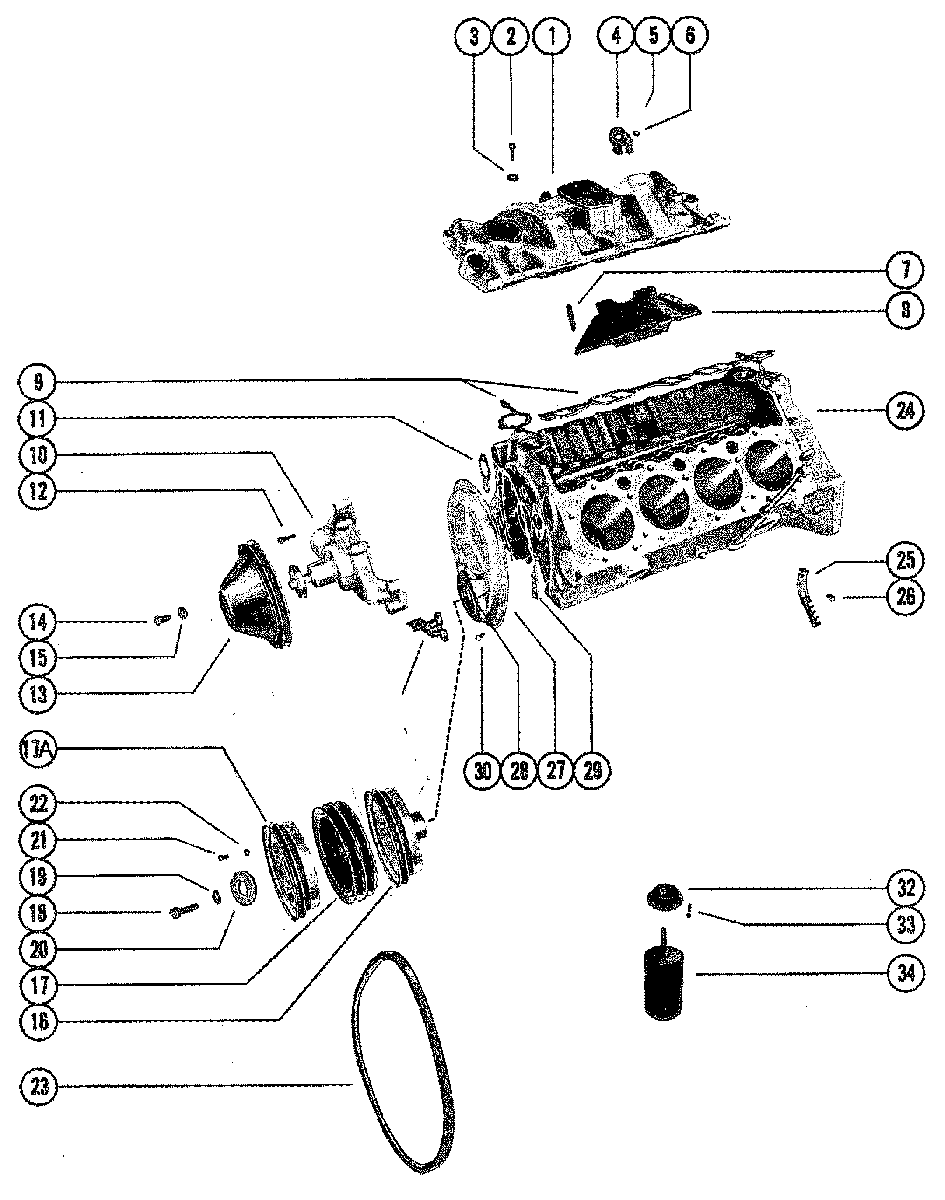

INTAKE MANIFOLD для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    78779 INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    10-26487 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
    BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
  • 2
    10-37510 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
    BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
  • 3
    12-49112 WASHER, INTAKE MANIFOLD BOLT
    WASHER, INTAKE MANIFOLD BOLT
  • 4
    54-47512 EYE, LIFTING INBOARD
    EYE, LIFTING INBOARD
  • 5
    10-34354 SCREW, LIFTING EYE ATTACHING (1 1/2") INBOARD
    SCREW, LIFTING EYE ATTACHING (1 1/2") INBOARD
  • 6
    13-35048 LOCKWASHER, LIFTING EYE SCREW INBOARD
    LOCKWASHER, LIFTING EYE SCREW INBOARD
  • 7
    16-66203 STUD, GUARD TO INTAKE MANIFOLD
    STUD, GUARD TO INTAKE MANIFOLD
  • 8
    72647 GUARD, INTAKE MANIFOLD
    GUARD, INTAKE MANIFOLD
  • 9
    27-17145 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 10
    46-8M0113734 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 11
    27-34897 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 12
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
  • 12
    10-47688 SCREW, WATERPUMP TO CYLINDER BLOCK (2 3/4")
    SCREW, WATERPUMP TO CYLINDER BLOCK (2 3/4")
  • 12
    10-52200 SCREW, WATER PUMP TO CYLINDER BLOCK ( 1 1/")
    SCREW, WATER PUMP TO CYLINDER BLOCK ( 1 1/")
  • 12
    16-8M0076418 STUD, WATER PUMP TO CYLINDER BLOCK
    STUD, WATER PUMP TO CYLINDER BLOCK
  • 13
    52349 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 13
    15120T PULLEY, WATER PUMP (HIGH MOUNTED P/S PUMP)
    PULLEY, WATER PUMP (HIGH MOUNTED P/S PUMP)
  • 14
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 15
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 16
    75420 BALANCER, HARMONIC-CRANKSHAFT
    BALANCER, HARMONIC-CRANKSHAFT
  • 17
    33863T PULLEY, HARMONIC BALANCER (2 GROOVES)
    PULLEY, HARMONIC BALANCER (2 GROOVES)
  • 17A
    75040A1 PULLEY, POWER STEERING (1 GROOVE)-LOW MOUNTED P/S PUMP
    PULLEY, POWER STEERING (1 GROOVE)-LOW MOUNTED P/S PUMP
  • 17A
    90081A1 PULLEY, POWER STEERING (1 GROOVE)-HIGH MOUNTED P/S PUMP
    PULLEY, POWER STEERING (1 GROOVE)-HIGH MOUNTED P/S PUMP
  • 18
    10-72626 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2"0)
    BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2"0)
  • 19
    13-39131 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 20
    1397-3332 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 21
    10-34352 BOLT, CRANKSHAFT PULLEY TO BALANCER (7/8")-NON-POWER STEERIN
    BOLT, CRANKSHAFT PULLEY TO BALANCER (7/8")-NON-POWER STEERIN
  • 21
    10-35786 BOLT, CRANKSHAFT PULLEY TO BALANCER (1")-POWER STEERING
    BOLT, CRANKSHAFT PULLEY TO BALANCER (1")-POWER STEERING
  • 22
    13-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLT
    LOCKWASHER, CRANKSHAFT PULLEY BOLT
  • 23
    57-48120Q1 BELT, DRIVE (46")
    BELT, DRIVE (46")
  • 23
    57-93658Q BELT, DRIVE (44")-HIGH MOUNTED P/S PUMP
    BELT, DRIVE (44")-HIGH MOUNTED P/S PUMP
  • 24
    841-6535 CYLINDER BLOCK ASSEMBLY
    SERIAL 00000000-#5496181
    CYLINDER BLOCK ASSEMBLY
    SERIAL 00000000-#5496181
  • 24
    841-8161 CYLINDER BLOCK ASSEMBLY
    SERIAL #5496182-09999999
    CYLINDER BLOCK ASSEMBLY
    SERIAL #5496182-09999999
  • 25
    35365 SUPPORT, SPARK PLUG LEAD WIRE
    SUPPORT, SPARK PLUG LEAD WIRE
  • 26
    10-8M0040582 SCREW, LEAD WIRE SUPPORT TO CYLINDER (2 1/2")
    SCREW, LEAD WIRE SUPPORT TO CYLINDER (2 1/2")
  • 27
    8M0127828 COVER ASSEMBLY, CRANKCASE FRONT (L.H. ROTATION)
    COVER ASSEMBLY, CRANKCASE FRONT (L.H. ROTATION)
  • 27
    8M0127828 COVER ASSEMBLY, CRANKCASE FRONT (R.H. ROTATION)
    COVER ASSEMBLY, CRANKCASE FRONT (R.H. ROTATION)
  • 28
    26-97335 OIL SEAL, CRANKCASE FRONT COVER
    OIL SEAL, CRANKCASE FRONT COVER
  • 29
    27-14250 GASKET, CRANKCASE FRONT END COVER
    GASKET, CRANKCASE FRONT END COVER
  • 30
    10-8M0040582 SCREW, CRANKCASE FRONT END COVER TO BLOCK (7/16")
    SCREW, CRANKCASE FRONT END COVER TO BLOCK (7/16")
  • 31
    75435A1 POINTER, TIMING
    POINTER, TIMING
  • 32
    71920 FILTER VALVE ASSEMBLY
    FILTER VALVE ASSEMBLY
  • 33
    10-54786 SCREW, FILTER VALVE TO CYLINDER BLOCK
    SCREW, FILTER VALVE TO CYLINDER BLOCK
  • 34
    35-866340Q03 OIL FILTER ASSEMBLY
    OIL FILTER ASSEMBLY
