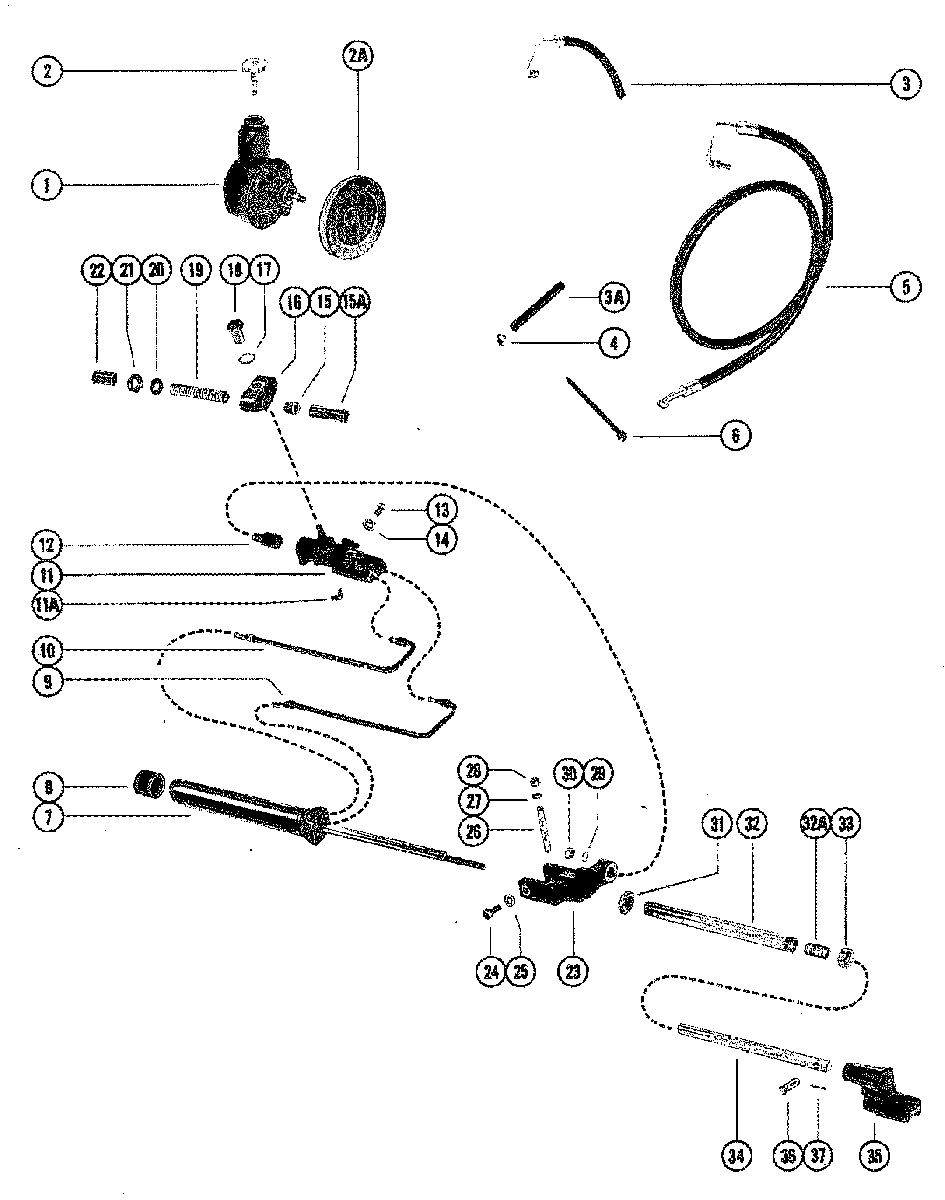

POWER STEERING COMPONENTS (WITH HOSES) для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    90507A5 HYDRAULIC PUMP ASSEMBLY, POWER STEERING (NON METRIC)
    HYDRAULIC PUMP ASSEMBLY, POWER STEERING (NON METRIC)
  • 1
    90507A12 HYDRAULIC PUMP ASSEMBLY, POWER STEERING (METRIC)
    HYDRAULIC PUMP ASSEMBLY, POWER STEERING (METRIC)
  • 2
    19-39924 CAP, FILLER-HYDRAULIC PUMP
    CAP, FILLER-HYDRAULIC PUMP
  • 2A
    73873A1 PULLEY, HYDRAULIC PUMP
    PULLEY, HYDRAULIC PUMP
  • 3
    32-9884339 HOSE, RETURN-VALVE TO OIL COOLER (32")
    HOSE, RETURN-VALVE TO OIL COOLER (32")
  • 3A
    65231 HOSE, RETURN- OIL COOLER TO HYRAULIC PUMP (40")
    HOSE, RETURN- OIL COOLER TO HYRAULIC PUMP (40")
  • 4
    54-815504206 CLAMP, RETURN HOSE TO HYRAULIC PUMP
    CLAMP, RETURN HOSE TO HYRAULIC PUMP
  • 5
    32-55116 HOSE, PRESSURE- POWER STEERING (60")-NON METRIC
    HOSE, PRESSURE- POWER STEERING (60")-NON METRIC
  • 5
    32-90494 HOSE, PRESSURE- POWER STEERING (60")-METRIC
    HOSE, PRESSURE- POWER STEERING (60")-METRIC
  • 6
    61990 STA-STRAP, HYDRAULIC HOSES
    STA-STRAP, HYDRAULIC HOSES
  • 7
    57969A12 CYLINDER, BOOSTER (B-25-58224A1 SEAL REPAIR KIT)
    CYLINDER, BOOSTER (B-25-58224A1 SEAL REPAIR KIT)
  • 8
    26059 CAP, RUBBER- BOOSTER CYLINDER
    CAP, RUBBER- BOOSTER CYLINDER
  • 9
    32-57633 TUBE, EXTENDING- POWER STEERING
    TUBE, EXTENDING- POWER STEERING
  • 10
    32-57634 TUBE, RETRACTING- POWER STEERING
    TUBE, RETRACTING- POWER STEERING
  • 11
    816458A1 VALVE, POWER STEERING (B-25-58226A1 SEAL REPAIR KIT)
    VALVE, POWER STEERING (B-25-58226A1 SEAL REPAIR KIT)
  • 11A
    22-67305 FITTING, GREASE- POWER STEERING VALVE
    FITTING, GREASE- POWER STEERING VALVE
  • 12
    16-55109T STUD, ADAPTOR- POWER STEERING VALVE
    STUD, ADAPTOR- POWER STEERING VALVE
  • 13
    10-37612 SCREW, CLAMPING (1 1/4")
    SCREW, CLAMPING (1 1/4")
  • 14
    13-35048 LOCKWASHER, CLAMPING SCREW
    LOCKWASHER, CLAMPING SCREW
  • 15
    23-60773 SLEEVE, ADJUSTING- CABLE GUIDE TUBE
    SLEEVE, ADJUSTING- CABLE GUIDE TUBE
  • 15A
    23-60652 SLEEVE, ADJUSTING- CABLE GUIDE TUBE
    SLEEVE, ADJUSTING- CABLE GUIDE TUBE
  • 16
    55110T ADAPTOR, CABLE GUIDE TUBE (DUAL)
    ADAPTOR, CABLE GUIDE TUBE (DUAL)
  • 17
    13-20897 LOCKWASHER, DUAL ADAPTOR NUT
    LOCKWASHER, DUAL ADAPTOR NUT
  • 18
    11-55111 NUT, DUAL ADAPTOR TO POWER STEERING VALVE
    NUT, DUAL ADAPTOR TO POWER STEERING VALVE
  • 19
    32-55112 TUBE, CABLE GUIDE
    TUBE, CABLE GUIDE
  • 20
    12-37985 WASHER, CABLE GUIDE TUBE
    WASHER, CABLE GUIDE TUBE
  • 21
    11-8M0041651 NUT, CABLE GUIDE TUBE
    NUT, CABLE GUIDE TUBE
  • 22
    64414 GUIDE, CABLE GUIDE TUBE
    GUIDE, CABLE GUIDE TUBE
  • 23
    57286 BRACKET, MOUNTING - TRANSOM PLATE
    BRACKET, MOUNTING - TRANSOM PLATE
  • 24
    10-31832 SCREW, MOUNTING BRACKET TO TRANSOM PLATE
    SCREW, MOUNTING BRACKET TO TRANSOM PLATE
  • 25
    13-31848 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 26
    10-57968 SCREW, ADJUSTING - MOUNTING BRACKET
    SCREW, ADJUSTING - MOUNTING BRACKET
  • 27
    13-35048 LOCKWASHER, ADJUSTING SCREW
    LOCKWASHER, ADJUSTING SCREW
  • 28
    11-46335 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 29
    12-20959 WASHER, VALVE ADAPTOR STUD
    WASHER, VALVE ADAPTOR STUD
  • 30
    11-898832 NUT, VALVE ADAPTOR STUD
    NUT, VALVE ADAPTOR STUD
  • 31
    11-32882 NUT, MOUNTING TUBE
    NUT, MOUNTING TUBE
  • 32
    57971 TUBE, MOUNTING - BOOSTER ROD EXTENSION
    TUBE, MOUNTING - BOOSTER ROD EXTENSION
  • 32A
    24-78498 SPRING, TORSION - MOUNTING TUBE
    SPRING, TORSION - MOUNTING TUBE
  • 33
    11-55983 NUT, JAM - MOUNTING TUBE
    NUT, JAM - MOUNTING TUBE
  • 34
    57970 EXTENSION, CYLINDER BOOSTER ROD
    EXTENSION, CYLINDER BOOSTER ROD
  • 35
    86069T ADAPTOR, ROD END
    ADAPTOR, ROD END
  • 36
    17-52798 PIN, CLEVIS- STEERING CABLE AND CLEVIS ATTACHING
    PIN, CLEVIS- STEERING CABLE AND CLEVIS ATTACHING
  • 37
    18-46950 COTTER PIN, CLEVIS PIN RETAINING
    COTTER PIN, CLEVIS PIN RETAINING
