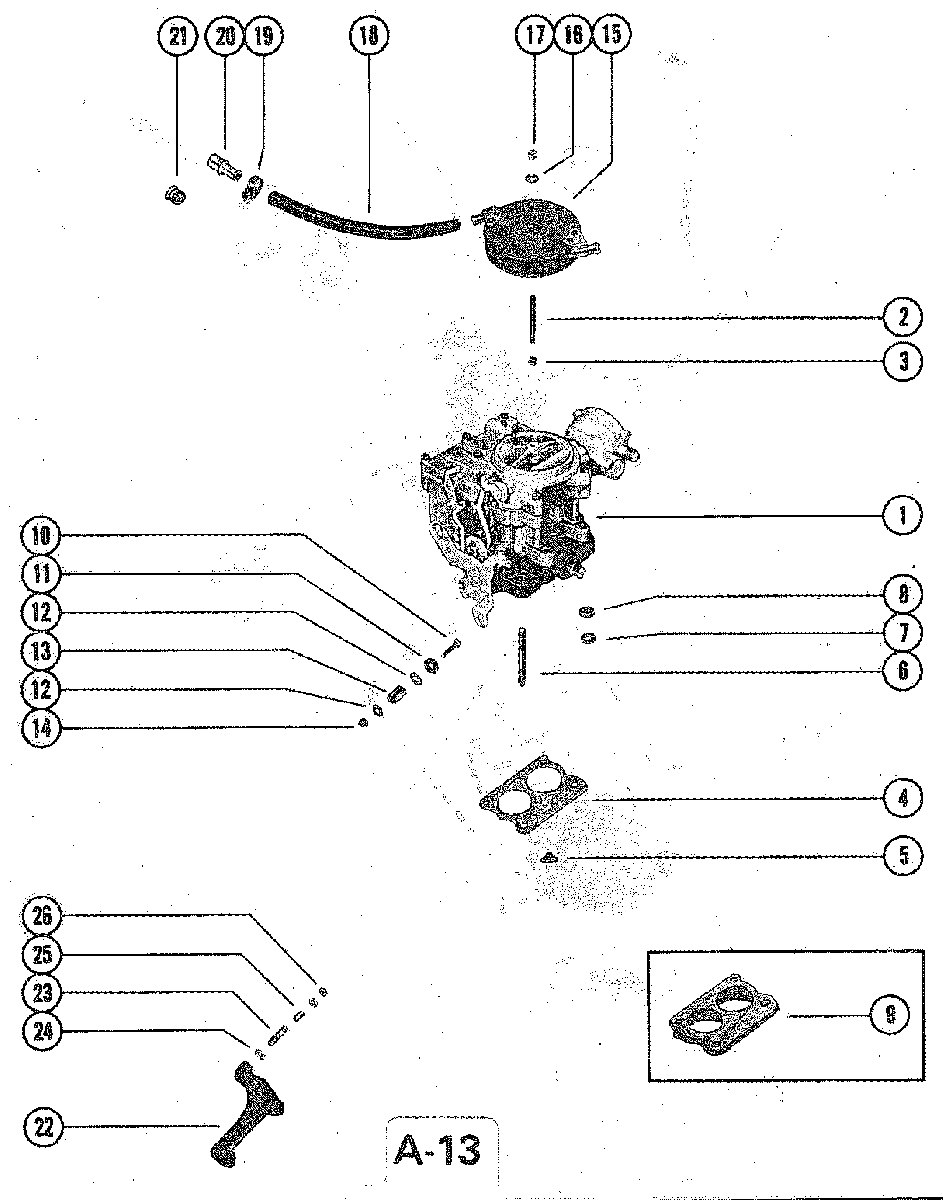

CARBURETOR AND MOUNTING BRACKETS для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

№

Артикул

Название
1

3310-861080A1 CARBURATOR(USE WITH SIGHT GLASS)

CARBURATOR(USE WITH SIGHT GLASS)
1

3310-861080A1 CARBURATOR(USE WITH SIGHT TUBE)

CARBURATOR(USE WITH SIGHT TUBE)
2

16-97012 STUD, FLAME ARRESTOR MOUNTING-CARBURATOR

STUD, FLAME ARRESTOR MOUNTING-CARBURATOR
3

11-8267139 NUT, JAM-FLAME ARRESTOR

NUT, JAM-FLAME ARRESTOR
4

27-8079821 GASKET, CARBURATOR(2 USED ON INBOARD)

GASKET, CARBURATOR(2 USED ON INBOARD)
5

22-12524 PLUG, INTAKE MANIFOLD VACUUM HOLE

PLUG, INTAKE MANIFOLD VACUUM HOLE
6

16-70237 STUD, CARBURATOR MOUNTING (2 3/4") STERN DRIVE

STUD, CARBURATOR MOUNTING (2 3/4") STERN DRIVE
6

16-8M0113177 STUD, CARBURATOR MOUNTING(1 1/2") STERN DRIVE

STUD, CARBURATOR MOUNTING(1 1/2") STERN DRIVE
7

12-20084 WASHER, CARBURATOR MOUNTING STUD AND SCREW STERN DRIVE

WASHER, CARBURATOR MOUNTING STUD AND SCREW STERN DRIVE
7

11-29250 NUT, CARBURATOR MOUNTING STUD STERN DRIVE

NUT, CARBURATOR MOUNTING STUD STERN DRIVE
6

16-63332 STUD, CARBURATOR MOUNTING(1 9/32") INBOARD

STUD, CARBURATOR MOUNTING(1 9/32") INBOARD
6

16-78818 STUD, CARBURATOR MOUNTING(2 1/2") INBOARD

STUD, CARBURATOR MOUNTING(2 1/2") INBOARD
6

16-78819 STUD, CARBURATOR MOUNTING(2 1/2") INBOARD

STUD, CARBURATOR MOUNTING(2 1/2") INBOARD
7

12-20084 WASHER, CARBURATOR STUDS INBOARD

WASHER, CARBURATOR STUDS INBOARD
8

11-29250 NUT, CARBURATOR STUDS INBOARD

NUT, CARBURATOR STUDS INBOARD
9

77995 WEDGE, CARBURATOR INBOARD

WEDGE, CARBURATOR INBOARD
10

10-37892 SCREW, THROTTLE CABLE TO CARBURATOR(1")

SCREW, THROTTLE CABLE TO CARBURATOR(1")
11

12-26907 WASHER, THROTTLE CABLE SCREW

WASHER, THROTTLE CABLE SCREW
12

12-847883 WASHER, THROTTLE CABLE SCREW

WASHER, THROTTLE CABLE SCREW
13

23-57938 BUSHING, THROTTLE CABLE SCREW

BUSHING, THROTTLE CABLE SCREW
14

11-859124 NUT, THROTTLE CABLE SCREW

NUT, THROTTLE CABLE SCREW
15

86271 FLAME ARRESTOR, CARBURATOR
SERIAL 00000000-#5182832

FLAME ARRESTOR, CARBURATOR
SERIAL 00000000-#5182832
16

12-22937 WASHER, FLAME ARRESTOR STUD
SERIAL 00000000-#5182832

WASHER, FLAME ARRESTOR STUD
SERIAL 00000000-#5182832
15

86271 FLAME ARRESTOR, CARBURATOR
SERIAL #5182833-09999999

FLAME ARRESTOR, CARBURATOR
SERIAL #5182833-09999999
16

12-86400 WASHER, FLAME ARRESTOR STUD
SERIAL #5182833-09999999

WASHER, FLAME ARRESTOR STUD
SERIAL #5182833-09999999
17

11-826709109 NUT, FLAME ARRESTOR STUD

NUT, FLAME ARRESTOR STUD
18

32-8M0062669 HOSE, VENT-CARBURATOR(12 1/2")

HOSE, VENT-CARBURATOR(12 1/2")
19

54-53101 CLAMP, VENT HOSE ATTACHING

CLAMP, VENT HOSE ATTACHING
20

47957 CONNECTOR, VENT HOSE TO ROCKER COVER

CONNECTOR, VENT HOSE TO ROCKER COVER
21

23-8M0071559 GROMMET, ROCKER COVER TO VENT HOSE CONNECTOR

GROMMET, ROCKER COVER TO VENT HOSE CONNECTOR
22

805489T BRACKET, MOUNTING-THROTTLE CABLE STERN DRIVE

BRACKET, MOUNTING-THROTTLE CABLE STERN DRIVE
22

805489T BRACKET, MOUNTING-THROTTLE CABLE INBOARD

BRACKET, MOUNTING-THROTTLE CABLE INBOARD
23

16-35897 STUD, THROTTLE CABLE TO BRACKET (1 11/16")STERN DRIVE

STUD, THROTTLE CABLE TO BRACKET (1 11/16")STERN DRIVE
24

12-69056 WASHER, THROTTLE CABLE STUD STERN DRIVE

WASHER, THROTTLE CABLE STUD STERN DRIVE
25

23-31866 SPACER, THROTTLE CABLE STUD STERN DRIVE

SPACER, THROTTLE CABLE STUD STERN DRIVE
26

11-826709109 NUT, THROTTLE CABLE STUD STERN DRIVE

NUT, THROTTLE CABLE STUD STERN DRIVE
23

16-38525 STUD, CABLE TO BRACKET(1 5/8")INBOARD

STUD, CABLE TO BRACKET(1 5/8")INBOARD
24

12-69056 WASHER, THROTTLE CABLE STUD INBOARD

WASHER, THROTTLE CABLE STUD INBOARD
26

11-8267089 NUT, THROTTLE CABLE STUD INBOARD

NUT, THROTTLE CABLE STUD INBOARD
