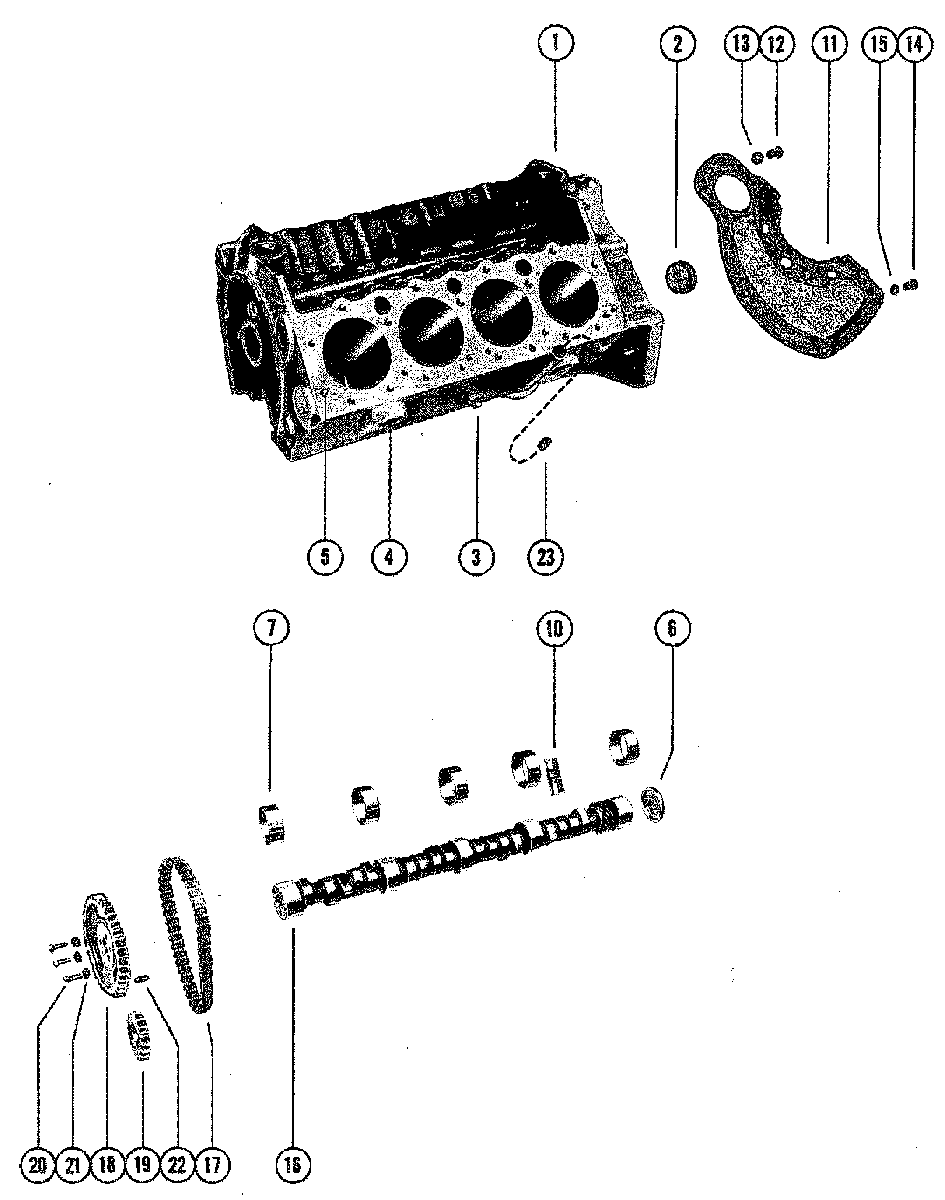

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 198 MIE (2 BBL.) GM 305 V-8 1977 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    841-6535 CYLINDER BLOCK
    SERIAL 00000000-05496181
    CYLINDER BLOCK
    SERIAL 00000000-05496181
  • 1
    841-8161 CYLINDER BLOCK
    SERIAL 05496182-09999999
    CYLINDER BLOCK
    SERIAL 05496182-09999999
  • 2
    19-35308 PLUG, EXPANSION - CYLINDER BLOCK (1 1/4")
    PLUG, EXPANSION - CYLINDER BLOCK (1 1/4")
  • 3
    22-16951Q1 DRAIN COCK, CYLINDER BLOCK
    DRAIN COCK, CYLINDER BLOCK
  • 4
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1 5/8"DIA)
    PLUG, EXPANSION - CYLINDER BLOCK (1 5/8"DIA)
  • -
    22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4"DIA)
    PLUG, PIPE - CYLINDER BLOCK (1/4"DIA)
  • 5
    17-35465 PIN, DOWEL - CYLINDER BLOCK TO CYL HEAD (5/16"DIA)
    PIN, DOWEL - CYLINDER BLOCK TO CYL HEAD (5/16"DIA)
  • 6
    22-72640 PLUG, EXPANSION 0 CYLINDER BEARING HOLE
    PLUG, EXPANSION 0 CYLINDER BEARING HOLE
  • 7
    23-85674 BEARING SET, CAMSHAFT
    BEARING SET, CAMSHAFT
  • 10
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 11
    71995 COVER, TRANSMISSION HOUSING STERN DRIVE
    COVER, TRANSMISSION HOUSING STERN DRIVE
  • 12
    10-98253 SCREW, COVER ATTACHING (1/2") STERN DRIVE
    SCREW, COVER ATTACHING (1/2") STERN DRIVE
  • 13
    13-26992 LOCK WASHER, COVER SCREW STERN DRIVE
    LOCK WASHER, COVER SCREW STERN DRIVE
  • 14
    10-98257 SCREW, COVER ATTACHING (1/2") STERN DRIVE
    SCREW, COVER ATTACHING (1/2") STERN DRIVE
  • 15
    13-39107 LOCKWASHER, COER SCREW STERN DRIVE
    LOCKWASHER, COER SCREW STERN DRIVE
  • 16
    431-5943 CAMSHAFT (L.H. ROTATION)
    CAMSHAFT (L.H. ROTATION)
  • 16
    431-884035 CAMSHAFT (R.H. ROTATION)
    CAMSHAFT (R.H. ROTATION)
  • 17
    35378 CHAIN, CAMSHAFT TIMING L.H. ROTATION
    CHAIN, CAMSHAFT TIMING L.H. ROTATION
  • 18
    17161A1 SPROCKET, CAMSHAFT TIMIMG (44TEETH) L.H. ROTATION
    SPROCKET, CAMSHAFT TIMIMG (44TEETH) L.H. ROTATION
  • 19
    17161A1 SPROCKET, CAMSHAFT TIMIMG L.H. ROTATION
    SPROCKET, CAMSHAFT TIMIMG L.H. ROTATION
  • 18
    43-14324 GEAR, TIMING - CAMSHAFT R.H. ROTATION
    GEAR, TIMING - CAMSHAFT R.H. ROTATION
  • 19
    43-14324 GEAR, TIMING - CRANKSHAFT R.H. ROTATION
    GEAR, TIMING - CRANKSHAFT R.H. ROTATION
  • 20
    10-34505 BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
    BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
  • 21
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 22
    17-24813 PIN, DOWEL - CAMSHAFT TIMING SPROCKET (1/4"DIA)
    PIN, DOWEL - CAMSHAFT TIMING SPROCKET (1/4"DIA)
  • 23
    19-71900 PLUG, OIL LEVEL GAUGE HOLE 0 CYLINDER BLOCK (INBOARD)
    PLUG, OIL LEVEL GAUGE HOLE 0 CYLINDER BLOCK (INBOARD)
