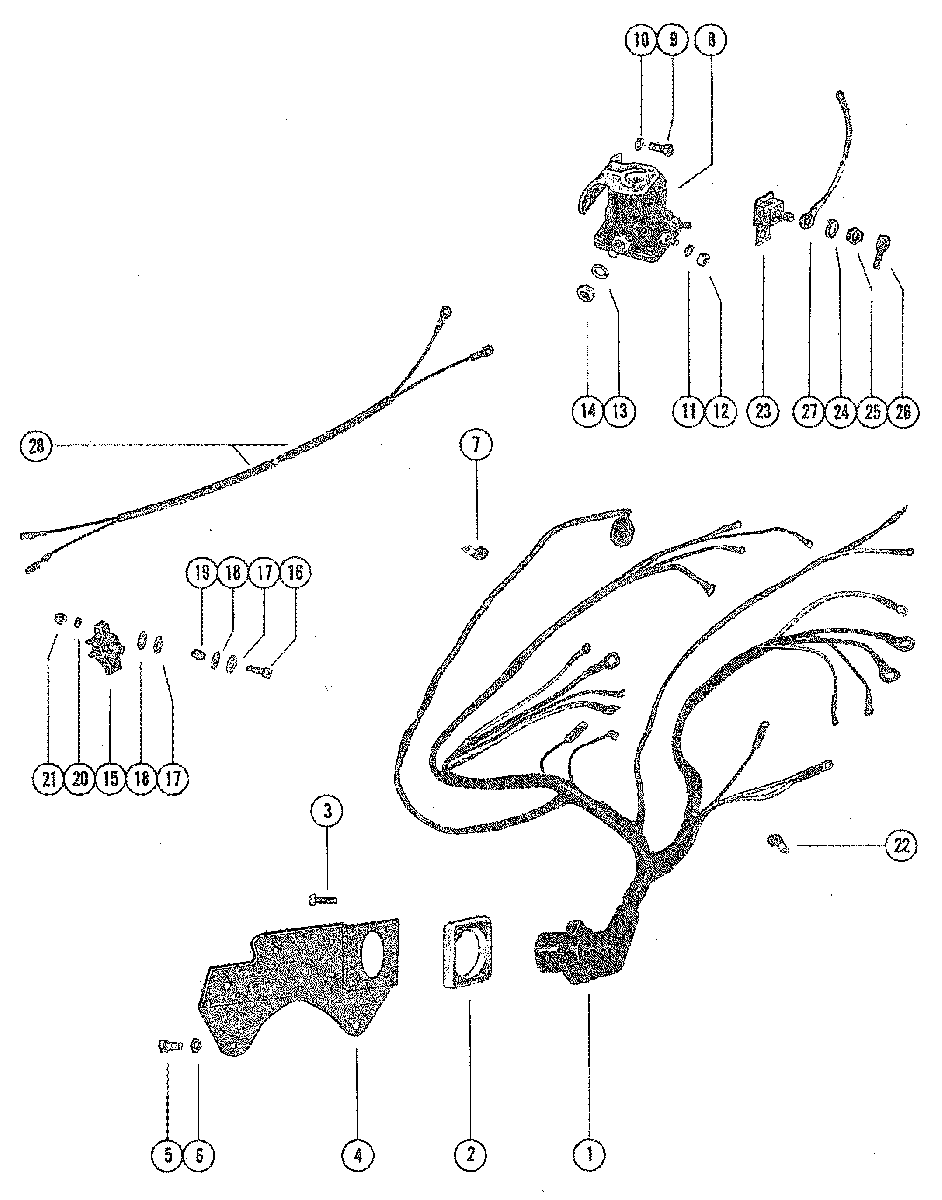

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    84-86683A2 WIRING HARNESS (STERN DRIVE)
    WIRING HARNESS (STERN DRIVE)
  • 1
    84-86677A04 WIRING HARNESS (INBOARD)
    WIRING HARNESS (INBOARD)
  • 2
    26079A2 PLATE< WIRING HARNESS TO MOUNTING BRACKET
    PLATE< WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 4
    87090T BRACKET, MOUTING - HARNESS AND CIRCUIT BREAER
    BRACKET, MOUTING - HARNESS AND CIRCUIT BREAER
  • 5
    10-805159 SCREW, MOUNTING BRACKET ATTACHING (1 1/4")
    SCREW, MOUNTING BRACKET ATTACHING (1 1/4")
  • 6
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 7
    64884 TAB, WIRING HARNESS
    TAB, WIRING HARNESS
  • 8
    89-853654A1 STARTER SOLENOID
    STARTER SOLENOID
  • 9
    10-69054 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 10
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 11
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 12
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 13
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 14
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 15
    88-65093 CIRCUIT BREAKER (40 AMP)
    CIRCUIT BREAKER (40 AMP)
  • 15
    88-11178A01 CIRCUIT BREAKER (50 AMP)
    CIRCUIT BREAKER (50 AMP)
  • --
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • --
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 16
    10-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1")
    SCREW, CIRCUIT BREAKER TO BRACKET (1")
  • 17
    25-61999 GROMMET, CIRCUIT BREAKER SCREW
    GROMMET, CIRCUIT BREAKER SCREW
  • 18
    12-47960 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 19
    23-61998 SPACER, CIRCUIT BREAKER GROMMET
    SPACER, CIRCUIT BREAKER GROMMET
  • 20
    12-30164 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 21
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
  • 22
    54-54178 "J" CLIP, WIRING HARNESS
    "J" CLIP, WIRING HARNESS
  • 22
    54-73668 "J" CLIP, WIRING HARNESS
    "J" CLIP, WIRING HARNESS
  • 23
    88-79023T56 FUSE ASSEMBLY, 55 AMP
    USE WITH ENGINES EQUIPPED WITH FUSES SERIAL 00000000-05096978
    FUSE ASSEMBLY, 55 AMP
    USE WITH ENGINES EQUIPPED WITH FUSES SERIAL 00000000-05096978
  • 23
    88-79023T90 FUSE ASSEMBLY, 90 AMP
    USE WITH ENGINES EQUIPPED WITH FUSES SERIAL 05096979-09999999
    FUSE ASSEMBLY, 90 AMP
    USE WITH ENGINES EQUIPPED WITH FUSES SERIAL 05096979-09999999
  • 24
    13-26992 LOCKWASHER, FUSE STUD
    USE WITH ENGINES EQUIPPED WITH FUSES
    LOCKWASHER, FUSE STUD
    USE WITH ENGINES EQUIPPED WITH FUSES
  • 25
    11-21825 NUT, FUST STUD
    USE WITH ENGINES EQUIPPED WITH FUSES
    NUT, FUST STUD
    USE WITH ENGINES EQUIPPED WITH FUSES
  • 26
    85-79695T BOOT, INSULATOR - FUSE STUD
    USE WITH ENGINES EQUIPPED WITH FUSES
    BOOT, INSULATOR - FUSE STUD
    USE WITH ENGINES EQUIPPED WITH FUSES
  • 27
    84-79139A7 JUMPER WIRE, 90 AMP FUSE
    USE WITH ENGINES EQUIPPED WITH FUSES SERIAL 05096979-09999999
    JUMPER WIRE, 90 AMP FUSE
    USE WITH ENGINES EQUIPPED WITH FUSES SERIAL 05096979-09999999
  • 28
    84-78581A1 WIRING HARNESS, ALTERNATOR
    USE WITH ENGINES EQUIPPED WITH FUSES
    WIRING HARNESS, ALTERNATOR
    USE WITH ENGINES EQUIPPED WITH FUSES
