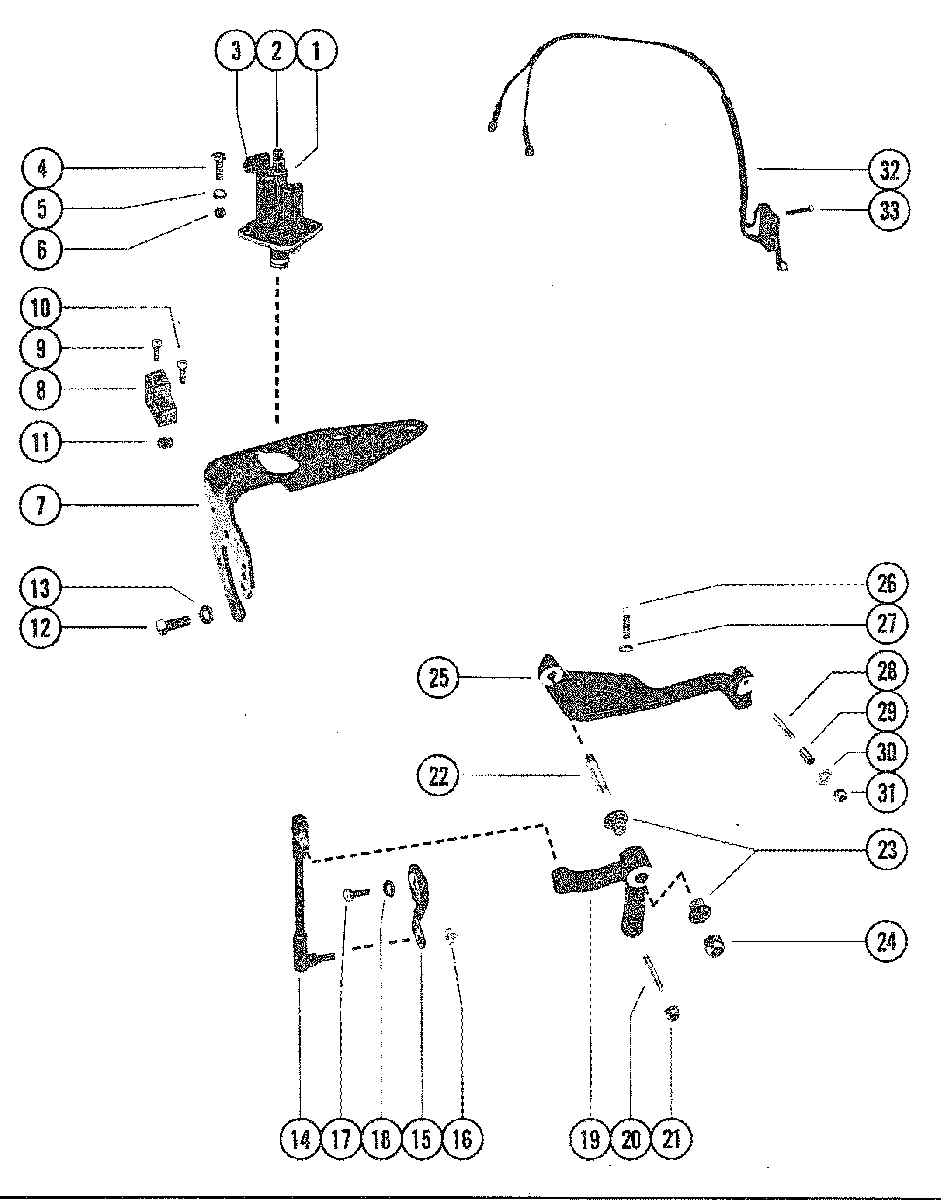

REVERSE LOCK VALVE (STERN DRIVE - MANUAL SHIFT) для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    54951A2 REVERSE LOCK VALVE ASSEMBLY
    REVERSE LOCK VALVE ASSEMBLY
  • 2
    22-48166 FITTING, STRAIGHT - REVERSE LOCK VALVE
    FITTING, STRAIGHT - REVERSE LOCK VALVE
  • 3
    22-52666 ELBOW, REVERSE LOCK VALVE
    ELBOW, REVERSE LOCK VALVE
  • 4
    10-22485 SCREW, REVERSE LOCK VALVE TO BRACKET (3/4")
    SCREW, REVERSE LOCK VALVE TO BRACKET (3/4")
  • 5
    12-20583 WASHER, REVERSE LOCK VALVE SCREW
    WASHER, REVERSE LOCK VALVE SCREW
  • 6
    11-20184 NUT, REVERSE LOCK VALVE SCREW
    NUT, REVERSE LOCK VALVE SCREW
  • 7
    85821A1 BRACKET, REVERSE LOCK VALVE
    BRACKET, REVERSE LOCK VALVE
  • 8
    86-45915 TERMINAL BLOCK, CUT-OUT SWITCH LEADS
    TERMINAL BLOCK, CUT-OUT SWITCH LEADS
  • 9
    10-62568 SCREW, TERMINAL BLOCK (3/8")
    SCREW, TERMINAL BLOCK (3/8")
  • 10
    10-37655 SCREW, TERMINAL BLOCK (1/2")
    SCREW, TERMINAL BLOCK (1/2")
  • 11
    11-826709106 NUT, TERMINAL BLOCK SCREW
    NUT, TERMINAL BLOCK SCREW
  • 12
    10-25299 SCREW, BRACKET ATTACHING
    SCREW, BRACKET ATTACHING
  • 13
    13-39107 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 14
    85820A1 SHIFT ROD ASSEMBLY
    SHIFT ROD ASSEMBLY
  • 15
    85787 SHIFT ARM. TRANSMISSION
    SHIFT ARM. TRANSMISSION
  • 16
    11-25168 NUT, SHIFT ROD STUD
    NUT, SHIFT ROD STUD
  • 17
    10-32417 SCREW, ARM ATTACHING
    SCREW, ARM ATTACHING
  • 18
    13-26992 LOCKWASHER, SHIFT ARM SSCREW
    LOCKWASHER, SHIFT ARM SSCREW
  • 19
    85788 SHIFT CRANK
    SHIFT CRANK
  • 20
    16-35004 STUD, SHIFT CRANK
    STUD, SHIFT CRANK
  • 21
    11-35888 NUT, SHIFT CRANK STUD
    NUT, SHIFT CRANK STUD
  • 22
    16-8M0034438 STUD, SHIFT BRACKET TO SHIFT CRANK
    STUD, SHIFT BRACKET TO SHIFT CRANK
  • 23
    23-26954 BUSHING, SHIFT BRACKET STUD - NYLINER
    BUSHING, SHIFT BRACKET STUD - NYLINER
  • 24
    11-82671013 NUT, SHIFT BRACKET TO SHIFT CRANK STUD
    NUT, SHIFT BRACKET TO SHIFT CRANK STUD
  • 25
    85789 BRACKET, SHIFT
    BRACKET, SHIFT
  • 26
    10-53576 SCREW, SHIFT BRACKET ATTACHING
    SCREW, SHIFT BRACKET ATTACHING
  • 27
    13-39107 LOCKWASHER, SHIFT BRACKET SCREW
    LOCKWASHER, SHIFT BRACKET SCREW
  • 28
    16-728091 STUD, SHIFT BRACKET
    STUD, SHIFT BRACKET
  • 29
    23-31866 BUSHING, SHIFT BRACKET STUD
    BUSHING, SHIFT BRACKET STUD
  • 30
    12-39143 WASHER, SHIFT BRACKET STUD
    WASHER, SHIFT BRACKET STUD
  • 31
    11-35888 NUT, SHIFT BRACKET STUD
    NUT, SHIFT BRACKET STUD
  • 32
    39670A23 SWITCH, CUT-OUT - TRANSMISSION
    SWITCH, CUT-OUT - TRANSMISSION
  • 33
    10-30902 SCREW, CUT-OUT SWITCH (3/4")
    SCREW, CUT-OUT SWITCH (3/4")
