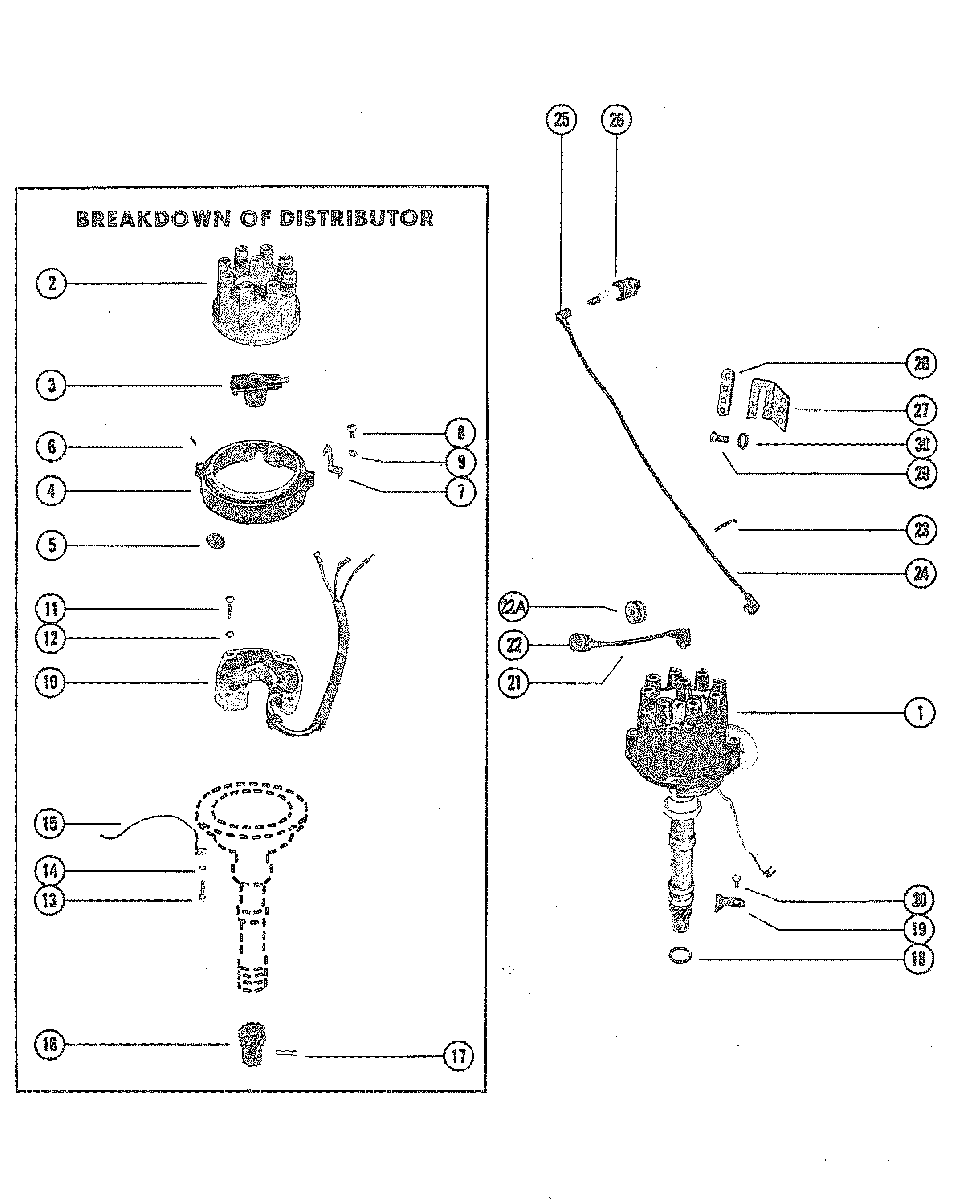

DISTRIBUTOR ASSEMBLY (THUNDERBOLT IGNITION) для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    47493A12 DISTRIBUTOR ASSEMBLY
    DISTRIBUTOR ASSEMBLY
  • 2
    393-4988T2 CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 3
    65864 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 4
    59754A1 HOUSING ASSEMBLY, ADAPTOR
    HOUSING ASSEMBLY, ADAPTOR
  • 5
    35-60047A1 FLAME ARRESTOR ASSEMBLY
    FLAME ARRESTOR ASSEMBLY
  • 6
    17-20032 PIN, DOWEL - ADAPTOR HOUSING
    PIN, DOWEL - ADAPTOR HOUSING
  • 7
    54-65783A2 CLAMP ASSEMBLY, CAP TO ADAPTOR HOUSING
    CLAMP ASSEMBLY, CAP TO ADAPTOR HOUSING
  • 8
    10-21335 SCREW, CLAMP TO ADAPTOR HOUSING (7/8")
    SCREW, CLAMP TO ADAPTOR HOUSING (7/8")
  • 9
    13-26996 LOCKWASHER, DISTRIBUTOR CLAMP FASTENING SCREW
    LOCKWASHER, DISTRIBUTOR CLAMP FASTENING SCREW
  • 10
    393-2918A9 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 11
    10-47618 SCREW, TRIGGER ATTACHING (1")
    SCREW, TRIGGER ATTACHING (1")
  • 12
    13-26996 LOCKWASHER, TRIGGER ATTACHING SCREW
    LOCKWASHER, TRIGGER ATTACHING SCREW
  • 13
    10-26595 SCREW, ADAPTOR HOUSING FASTENING (3/4")
    SCREW, ADAPTOR HOUSING FASTENING (3/4")
  • 14
    13-26995 LOCKWASHER, ADAPTOR HOUSING SCREW
    LOCKWASHER, ADAPTOR HOUSING SCREW
  • 15
    52618 WIRE, GROUND
    WIRE, GROUND
  • 16
    43-8M0115498 GEAR, DISTRIBUTOR
    GEAR, DISTRIBUTOR
  • 17
    17-47617 ROLL PIN, GEAR TO DISTRIBUTOR
    ROLL PIN, GEAR TO DISTRIBUTOR
  • 18
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 19
    54-88731 CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD
    CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD
  • 20
    10-54528 SCREW, DISTRIBUTOR CLAMP ATTACHING (1")
    SCREW, DISTRIBUTOR CLAMP ATTACHING (1")
  • 21
    84-821945A36 LEAD ASSEMBLY, DISTRIBUTOR TO COIL (13 1/2")
    LEAD ASSEMBLY, DISTRIBUTOR TO COIL (13 1/2")
  • 22
    332-2854T01 BOOT, COIL TOWER
    BOOT, COIL TOWER
  • 22A
    25-47623 GROMMET, COIL LEAD WIRE
    GROMMET, COIL LEAD WIRE
  • 23
    32782 RETAINER, HIGH TENSION LEADS (2 WIRE)
    RETAINER, HIGH TENSION LEADS (2 WIRE)
  • 23
    32783 RETAINER, HIGH TENSION LEADS (3 WIRE)
    RETAINER, HIGH TENSION LEADS (3 WIRE)
  • 23
    32784 RETAINER, HIGH TENSION LEADS (4 WIRE)
    RETAINER, HIGH TENSION LEADS (4 WIRE)
  • 24
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION
    LEAD ASSEMBLY, HIGH TENSION
  • 25
    85-63709A1 PROTECTOR, SPARK PLUG
    PROTECTOR, SPARK PLUG
  • 26
    33-8134214 SPARK PLUG (AC-MR 41T)
    SPARK PLUG (AC-MR 41T)
  • 27
    47763 BRACKET, RETAINER - HIGH TENSION LEADS
    BRACKET, RETAINER - HIGH TENSION LEADS
  • 28
    25-38930 GROMMET, RETAINER BRACKET
    GROMMET, RETAINER BRACKET
  • 29
    10-98261 SCREW, RETAINER BRACKET TO CYLINDER HEAD (3/4") - STARBOARD
    SCREW, RETAINER BRACKET TO CYLINDER HEAD (3/4") - STARBOARD
  • 30
    13-35048 LOCKWASHER, RETAINER BRACKET SCREW (STARBOARD)
    LOCKWASHER, RETAINER BRACKET SCREW (STARBOARD)
  • 29
    10-48948 SCREW, RETAINER BRACKET TO CYLINDER HEAD (7/16") - PORT
    SCREW, RETAINER BRACKET TO CYLINDER HEAD (7/16") - PORT
  • 30
    13-32993 LOCKWASHER, RETAINER BRACKET SCREW (PORT)
    LOCKWASHER, RETAINER BRACKET SCREW (PORT)
