ENGINE MOUNTING для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название

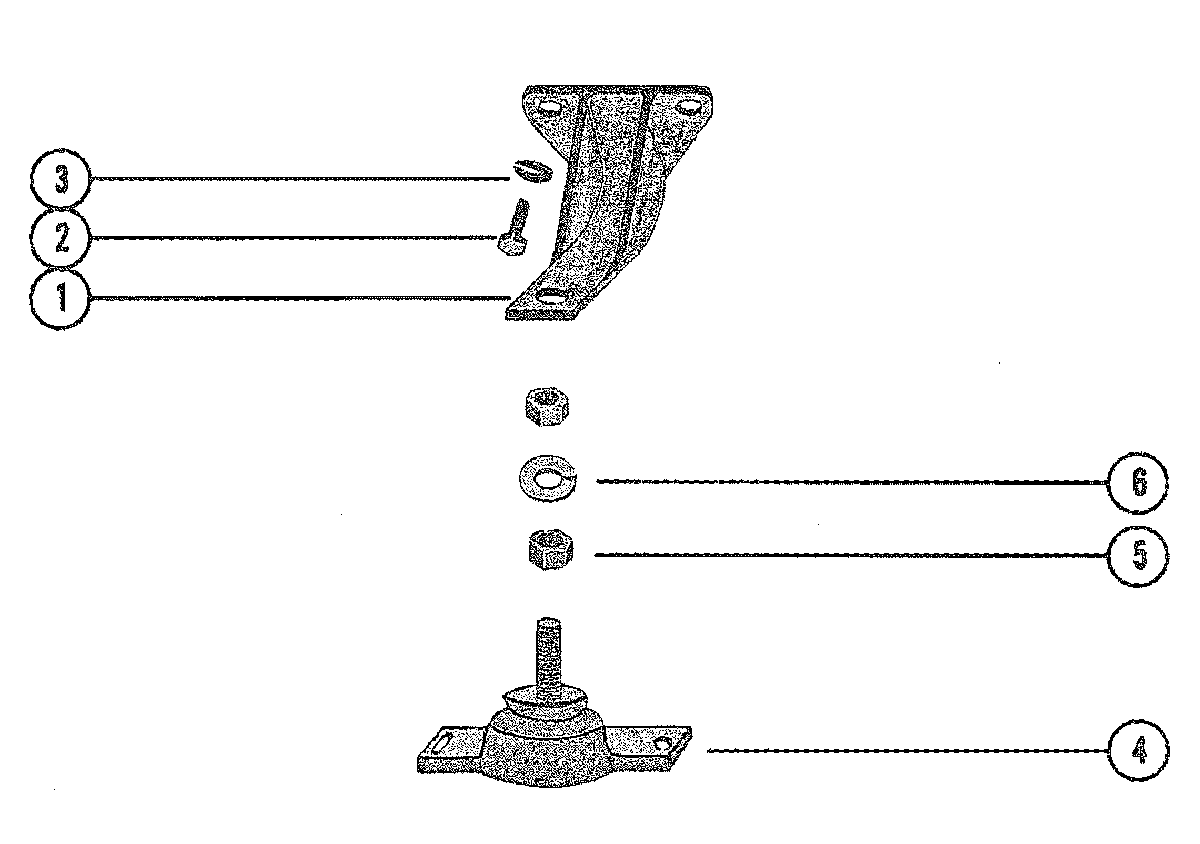

  • 1
    79550A1 BRACKET, MOUNTING - ENGINE
    BRACKET, MOUNTING - ENGINE
  • 2
    10-37612 SCREW, MOUNTING BRACKET TO ENGINE (1 1/4") PORT SIDE
    SCREW, MOUNTING BRACKET TO ENGINE (1 1/4") PORT SIDE
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW PORT SIDE
    LOCKWASHER, MOUNTING BRACKET SCREW PORT SIDE
  • 2
    10-37612 SCREW, MOUNTING BRACKET TO ENGINE (1 1/4")
    STARBOARD SIDE
    SCREW, MOUNTING BRACKET TO ENGINE (1 1/4")
    STARBOARD SIDE
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    STARBOARD SIDE
    LOCKWASHER, MOUNTING BRACKET SCREW
    STARBOARD SIDE
  • 2
    10-48424 SCREW, MOUNTING BRACKET TO ENGINE (1 5/8")
    STARBOARD SIDE
    SCREW, MOUNTING BRACKET TO ENGINE (1 5/8")
    STARBOARD SIDE
  • 3
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    STARBOARD SIDE
    LOCKWASHER, MOUNTING BRACKET SCREW
    STARBOARD SIDE
  • 4
    66284A2 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 5
    11-20739 NUT, JAM - MOUNTING BRACKET
    NUT, JAM - MOUNTING BRACKET
  • 6
    13-68102 LOCKWASHER, MOUNTING BRACKET
    LOCKWASHER, MOUNTING BRACKET
