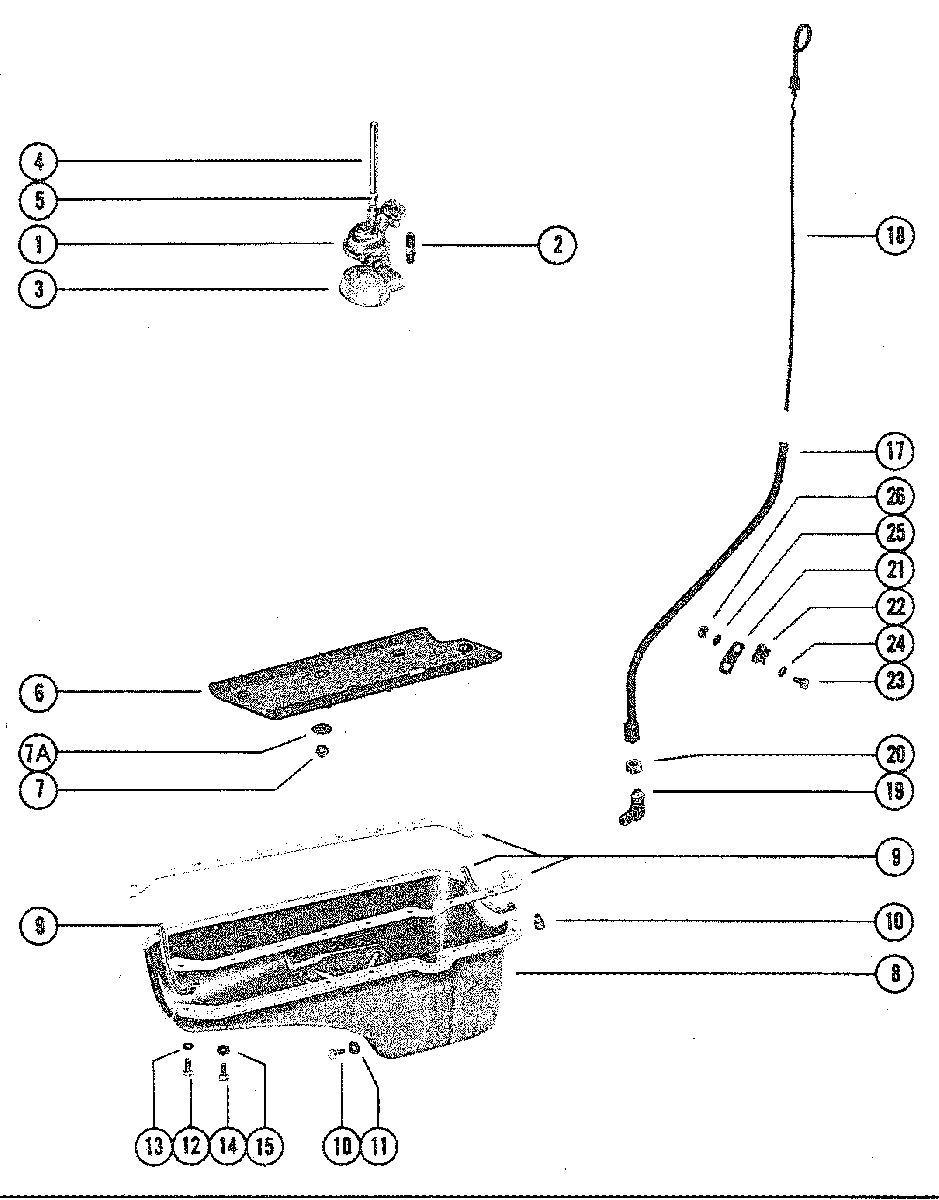

OIL PAN AND OIL PUMP для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    808693A1 OIL PUMP
    SERIAL 00000000-04889679
    OIL PUMP
    SERIAL 00000000-04889679
  • 1
    808693A1 OIL PUMP
    (w/pick-up tube) (SERIAL 04889680-05517159)
    OIL PUMP
    (w/pick-up tube) (SERIAL 04889680-05517159)
  • 1
    808693A1 OIL PUMP
    (w/o pick-up tube)
    OIL PUMP
    (w/o pick-up tube)
  • NA
    809772T PICK-UP TUBE
    (Use with 808693A1)
    PICK-UP TUBE
    (Use with 808693A1)
  • 1
    827643 OIL PUMP
    SERIAL 05517160-09999999
    OIL PUMP
    SERIAL 05517160-09999999
  • 1
    808693A1 OIL PUMP(INBOARD)
    (w/pick-up tube) (SERIAL 04889680-09999999)
    OIL PUMP(INBOARD)
    (w/pick-up tube) (SERIAL 04889680-09999999)
  • 2
    16-845599 STUD, OIL PUMP TO CYLINDER BLOCK
    STUD, OIL PUMP TO CYLINDER BLOCK
  • 3
    59977 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 4
    848511 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 6
    49198 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 7
    11-37500 NUT, BAFFLE TO CYLINDER BLOCK STUD AND OIL PUMP STUD
    NUT, BAFFLE TO CYLINDER BLOCK STUD AND OIL PUMP STUD
  • 7A
    12-49112 WASHER, BAFFLE BOLT
    WASHER, BAFFLE BOLT
  • 8
    93477T OIL PAN(STERN DRIVE)
    SERIAL 00000000-05517159
    OIL PAN(STERN DRIVE)
    SERIAL 00000000-05517159
  • 8
    93477T OIL PAN(STERN DRIVE)
    SERIAL 05517160-09999999
    OIL PAN(STERN DRIVE)
    SERIAL 05517160-09999999
  • 8
    47552A5 OIL PAN (INBOARD)
    OIL PAN (INBOARD)
  • 9
    27-52550 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 10
    10-49956 SCREW, OIL PAN DRAIN STERN DRIVE
    SCREW, OIL PAN DRAIN STERN DRIVE
  • 11
    27-8M0077608 GASKET, OIL PAN DRAIN SCREW STERN DRIVE
    GASKET, OIL PAN DRAIN SCREW STERN DRIVE
  • 12
    10-72607 SCREW, OIL PAN TO CYL. BLOCK (5/16 - 18 X 7/8) STERN DRIVE
    SCREW, OIL PAN TO CYL. BLOCK (5/16 - 18 X 7/8) STERN DRIVE
  • 14
    10-34500 SCREW, OIL PAN TO CYL. BLOCK (1/4 - 20 X 7/8) STERN DRIVE
    SCREW, OIL PAN TO CYL. BLOCK (1/4 - 20 X 7/8) STERN DRIVE
  • 10
    22-32803 PLUG, PIPE - OIL PAN DRAIN INBOARD
    PLUG, PIPE - OIL PAN DRAIN INBOARD
  • 12
    10-55714 SCREW, OIL PAN TO BLOCK (5/16 - 18 X 7/8) INBOARD
    SCREW, OIL PAN TO BLOCK (5/16 - 18 X 7/8) INBOARD
  • 13
    13-26993 LOCKWASHER, OIL PAN SCREW INBOARD
    LOCKWASHER, OIL PAN SCREW INBOARD
  • 14
    10-55715 SCREW, OIL PAN TO BLOCK (1/4 - 20 X 7/8) INBOARD
    SCREW, OIL PAN TO BLOCK (1/4 - 20 X 7/8) INBOARD
  • 15
    13-26992 LOCKWASHER, OIL PAN SCREW INBOARD
    LOCKWASHER, OIL PAN SCREW INBOARD
  • 17
    68035 TUBE, OIL LEVEL STERN DRIVE
    TUBE, OIL LEVEL STERN DRIVE
  • 18
    78525T GAUGE, OIL LEVEL (DIPSTICK) STERN DRIVE
    GAUGE, OIL LEVEL (DIPSTICK) STERN DRIVE
  • 22
    54-68050 CLIP, OIL LEVEL TUBE STERN DRIVE
    CLIP, OIL LEVEL TUBE STERN DRIVE
  • 23
    10-98261 SCREW, CLIP ATTACHING STERN DRIVE
    SCREW, CLIP ATTACHING STERN DRIVE
  • 24
    13-35048 LOCKWASHER, CLIP SCREW STERN DRIVE
    LOCKWASHER, CLIP SCREW STERN DRIVE
  • 17
    86890A2 TUBE ASSEMBLY, OIL LEVEL GAUGE INBOARD
    TUBE ASSEMBLY, OIL LEVEL GAUGE INBOARD
  • 18
    86194220 GAUGE, OIL LEVEL (DIPSTICK) INBOARD
    GAUGE, OIL LEVEL (DIPSTICK) INBOARD
  • 19
    22-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN INBOARD
    ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN INBOARD
  • 20
    11-47626 NUT, OIL LEVEL GAUGE TUBE INBOARD
    NUT, OIL LEVEL GAUGE TUBE INBOARD
  • 21
    48134 BRACKET, OIL LEVEL GAUGE INBOARD
    BRACKET, OIL LEVEL GAUGE INBOARD
  • 22
    54-475451 CLIP, OIL LEVEL TUBE INBOARD
    CLIP, OIL LEVEL TUBE INBOARD
  • 23
    10-33524 SCREW, CLIP TO BRACKET (5/8") INBOARD
    SCREW, CLIP TO BRACKET (5/8") INBOARD
  • 24
    13-39107 LOCKWASHER, CLIP SCREW INBOARD
    LOCKWASHER, CLIP SCREW INBOARD
  • 25
    12-20553 WASHER, OIL LEVEL TUBE BRACKET INBOARD
    WASHER, OIL LEVEL TUBE BRACKET INBOARD
  • 26
    11-22053 NUT, CLIP SCREW INBOARD
    NUT, CLIP SCREW INBOARD
