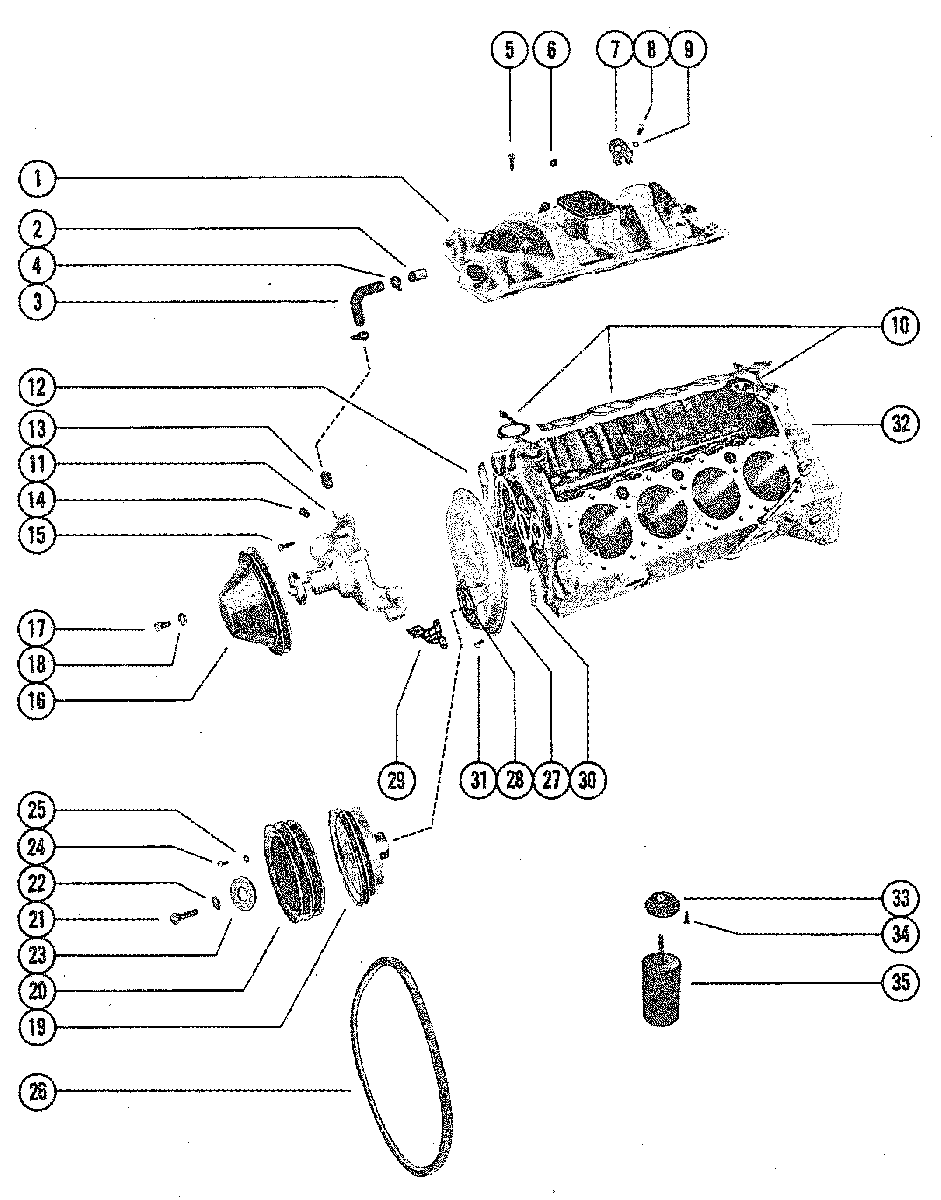

INTAKE MANIFOLD AND WATER PUMP для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    811575T INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    22-806242 CONNECTOR, INTAKE MANIFOLD - BY-PASS HOSE
    CONNECTOR, INTAKE MANIFOLD - BY-PASS HOSE
  • 3
    32-99520 HOSE, BY-PASS - INTAKE MANIFOLD TO WATER PUMP
    HOSE, BY-PASS - INTAKE MANIFOLD TO WATER PUMP
  • 4
    54-815504412 CLAMP, BY-PASS HOSE ATTACHING
    CLAMP, BY-PASS HOSE ATTACHING
  • 5
    10-37510 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/4")
    BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/4")
  • 6
    22-48336 PLUG, PIPE - INTAKE MANIFOLD
    PLUG, PIPE - INTAKE MANIFOLD
  • 7
    54-64628 EYE, LIFTING - REAR
    EYE, LIFTING - REAR
  • 7
    54-94015 EYE, LIFTING - FRONT (STERN DRIVE)
    EYE, LIFTING - FRONT (STERN DRIVE)
  • 7
    54-64628 EYE, LIFTING - FRONT (INBOARD)
    EYE, LIFTING - FRONT (INBOARD)
  • 8
    10-34354 SCREW, LIFTING EYE ATTACHING (1 1/2")
    2 USED ON STERN DRIVE; 4 USED ON INBOARD
    SCREW, LIFTING EYE ATTACHING (1 1/2")
    2 USED ON STERN DRIVE; 4 USED ON INBOARD
  • 9
    13-35048 LOCKWASHER, LIFTING EYE SCREW
    2 USED ON STERN DRIVE; 4 USED ON INBOARD
    LOCKWASHER, LIFTING EYE SCREW
    2 USED ON STERN DRIVE; 4 USED ON INBOARD
  • 10
    27-8M0050224 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 11
    46-8M0113735 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 12
    27-49110 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 13
    22-806242 CONNECTOR, WATER PUMP - BY-PASS HOSE (INBOARD)
    CONNECTOR, WATER PUMP - BY-PASS HOSE (INBOARD)
  • 14
    22-48336 PLUG, PIPE - WATER PUMP (STERN DRIVE)
    PLUG, PIPE - WATER PUMP (STERN DRIVE)
  • 14
    22-75983 PLUG, PIPE - WATER PUMP (INBOARD)
    PLUG, PIPE - WATER PUMP (INBOARD)
  • 15
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
  • 16
    59775 PULLEY, WATER PUMP (3 GROOVE)
    PULLEY, WATER PUMP (3 GROOVE)
  • 16
    52349 PULLEY, WATER PUMP (1 GROOVE)
    PULLEY, WATER PUMP (1 GROOVE)
  • 17
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 18
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 19
    816729 DAMPER, TORSIONAL - CRANKSHAFT
    DAMPER, TORSIONAL - CRANKSHAFT
  • 20
    845524A1 PULLEY, TORSIONAL DAMPER (STERN DRIVE)-W/POWER STEERING
    PULLEY, TORSIONAL DAMPER (STERN DRIVE)-W/POWER STEERING
  • 20
    52181 PULLEY, TORSIONAL DAMPER (STERN DRIVE AND INBOARD)
    PULLEY, TORSIONAL DAMPER (STERN DRIVE AND INBOARD)
  • 21
    10-14758 BOLT, PULLEY AND TORSIONAL DAMPER TO CRANKSHAFT
    BOLT, PULLEY AND TORSIONAL DAMPER TO CRANKSHAFT
  • 22
    13-14759 LOCKWASHER, PULLEY AND TORSIONAL DAMPER BOLT
    LOCKWASHER, PULLEY AND TORSIONAL DAMPER BOLT
  • 23
    12-49103 WASHER, PULLEY AND TORSIONAL DAMPER BOLT
    WASHER, PULLEY AND TORSIONAL DAMPER BOLT
  • 24
    10-34353 BOLT, PULLEY TO DAMPER (1")-STERN DRIVE-W/POWER STEERING
    BOLT, PULLEY TO DAMPER (1")-STERN DRIVE-W/POWER STEERING
  • 24
    10-76926 BOLT, PULLEY TO DAMPER (7/8")-STERN DRIVE-W/O POWER STEERING
    BOLT, PULLEY TO DAMPER (7/8")-STERN DRIVE-W/O POWER STEERING
  • 24
    10-98261 BOLT, PULLEY TO DAMPER (INBOARD)
    BOLT, PULLEY TO DAMPER (INBOARD)
  • 25
    13-35048 LOCKWASHER, PULLEY BOLT
    LOCKWASHER, PULLEY BOLT
  • 26
    57-78200Q1 BELT, ALTERNATOR DRIVE (47")
    BELT, ALTERNATOR DRIVE (47")
  • 27
    66215 COVER ASSEMBLY, CRANKCASE FRONT END
    COVER ASSEMBLY, CRANKCASE FRONT END
  • 28
    26-8219471 OIL SEAL, CRANKCASE FRONT END COVER
    OIL SEAL, CRANKCASE FRONT END COVER
  • 29
    59966 POINTER, TIMING (L.H. ROTATION)
    POINTER, TIMING (L.H. ROTATION)
  • 29
    811594 POINTER, TIMING (R.H. ROTATION)
    POINTER, TIMING (R.H. ROTATION)
  • 30
    27-54529 GASKET, CRANKCASE FRONT END COVER
    GASKET, CRANKCASE FRONT END COVER
  • 31
    10-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
    SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
  • 32
    842-9639 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 33
    71920 ADAPTOR, OIL FILTER STERN DRIVE
    ADAPTOR, OIL FILTER STERN DRIVE
  • 34
    10-54786 BOLT, OIL FILTER ADAPTOR STERN DRIVE
    BOLT, OIL FILTER ADAPTOR STERN DRIVE
  • 35
    35-866340Q03 OIL FILTER STERN DRIVE
    OIL FILTER STERN DRIVE
