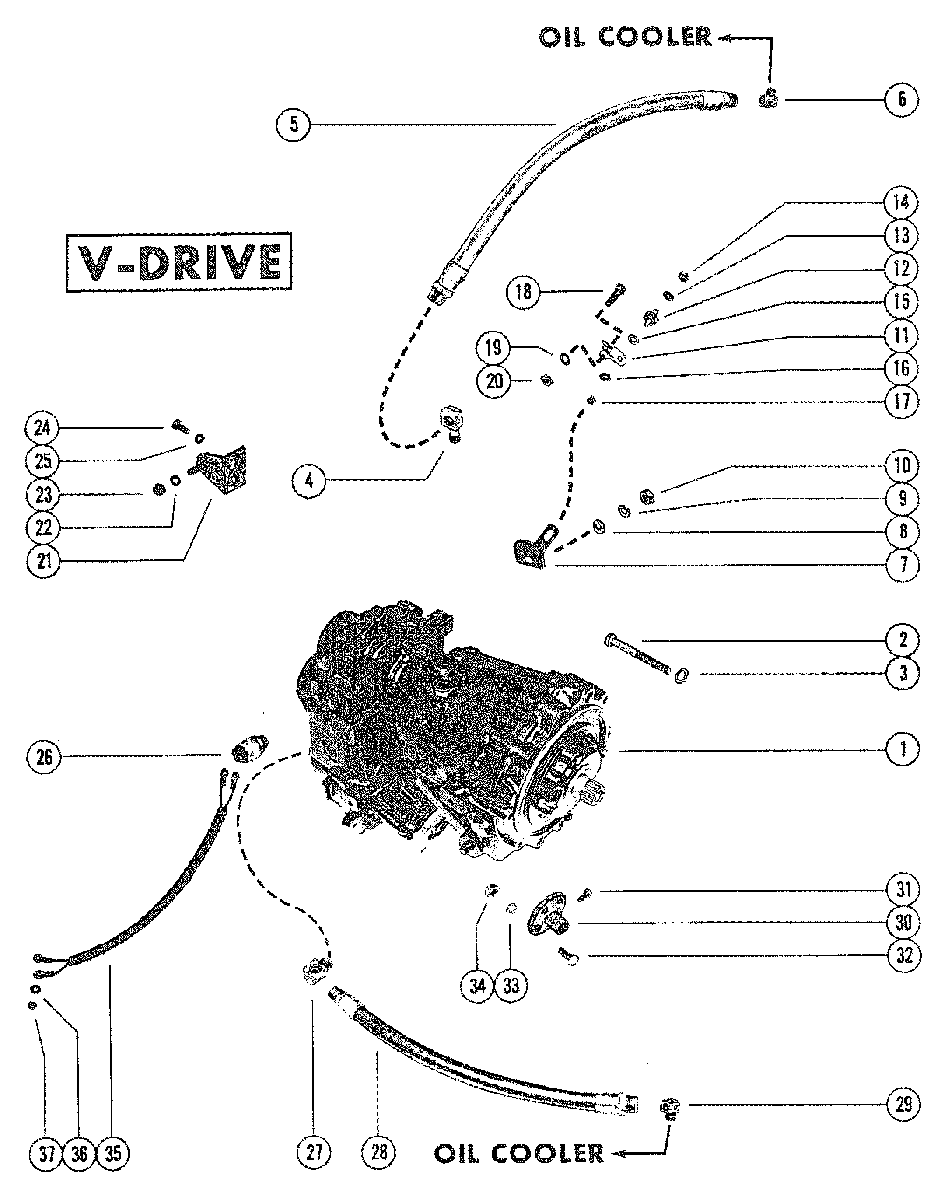

TRANSMISSION ASSEMBLY (V-DRIVE) для Mercruiser - 330 MIE GM 454 V-8 1977-1980 4623115 THRU 5889913

  • №
    Артикул
    Название
  • 1
    60958A7 TRANSMISSION (DIRECT DRIVE)
    TRANSMISSION (DIRECT DRIVE)
  • 1
    60959A6 TRANSMISSION (1.51:1 REDUCTION)
    TRANSMISSION (1.51:1 REDUCTION)
  • 1
    60960A6 TRANSMISSION (1.99:1 REDUCTION)
    TRANSMISSION (1.99:1 REDUCTION)
  • 1
    60961A6 TRANSMISSION (2.49:1 REDUCTION)
    TRANSMISSION (2.49:1 REDUCTION)
  • 1
    60962A6 TRANSMISSION (3.14:1 REDUCTION)
    TRANSMISSION (3.14:1 REDUCTION)
  • 2
    10-60179 SCREW, TRANSMISSION TO ENGINE (3 1/2")
    SCREW, TRANSMISSION TO ENGINE (3 1/2")
  • 3
    13-32993 LOCKWASHER, TRANSMISSION SCREW
    LOCKWASHER, TRANSMISSION SCREW
  • 4
    22-63824 ELBOW, HOSE TO TRANSMISSION (90 )
    ELBOW, HOSE TO TRANSMISSION (90 )
  • 5
    32-475169 HOSE, TRANSMISSION TO OIL COOLER (37")
    HOSE, TRANSMISSION TO OIL COOLER (37")
  • 6
    22-47629 ELBOW, HOSE TO OIL COOLER (90 )
    ELBOW, HOSE TO OIL COOLER (90 )
  • 7
    48515 LEVER, SHIFT - TRANSMISSION
    LEVER, SHIFT - TRANSMISSION
  • 8
    12-20722 WASHER, SHIFT LEVER TO TRANSMISSION
    WASHER, SHIFT LEVER TO TRANSMISSION
  • 9
    13-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSION
    LOCKWASHER, SHIFT LEVER TO TRANSMISSION
  • 10
    11-22053 NUT, SHIFT LEVER TO TRANSMISSION
    NUT, SHIFT LEVER TO TRANSMISSION
  • 11
    48652 ADAPTOR, SHIFT CABLE TO SHIFT LEVER
    ADAPTOR, SHIFT CABLE TO SHIFT LEVER
  • 12
    16-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
    STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
  • 13
    12-20533 WASHER, SHIFT CABLE ADAPTOR STUD
    WASHER, SHIFT CABLE ADAPTOR STUD
  • 14
    11-20184 NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
    NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
  • 15
    13-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUD
    WAVE WASHER, SHIFT CABLE ADAPTOR STUD
  • 16
    12-56681 WASHER, SHIFT CABLE ADAPTOR STUD
    WASHER, SHIFT CABLE ADAPTOR STUD
  • 17
    11-46438 NUT, SHIFT CABLE ADAPTOR STUD (10-32)
    NUT, SHIFT CABLE ADAPTOR STUD (10-32)
  • 18
    10-20639 SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
    SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
  • 19
    12-22753 WASHER, SHIFT CABLE SCREW
    WASHER, SHIFT CABLE SCREW
  • 20
    11-29250 NUT, SHIFT CABLE SCREW (5/16-24)
    NUT, SHIFT CABLE SCREW (5/16-24)
  • 21
    63815A2 BRACKET ASSEMBLY, SHIFT CABLE
    BRACKET ASSEMBLY, SHIFT CABLE
  • 22
    12-56681 WASHER, SHIFT CABLE STUD
    WASHER, SHIFT CABLE STUD
  • 23
    11-46438 NUT, SHIFT CABLE STUD
    NUT, SHIFT CABLE STUD
  • 24
    10-65746 SCREW, BRACKET TO FLYWHEEL HSG. (3/4")
    SCREW, BRACKET TO FLYWHEEL HSG. (3/4")
  • 25
    13-26992 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 26
    47613 SWITCH, NEUTRAL SAFETY
    SWITCH, NEUTRAL SAFETY
  • 27
    22-47629 ELBOW, HOSE TO TRANSMISSION (90 )
    ELBOW, HOSE TO TRANSMISSION (90 )
  • 28
    32-475169 HOSE, COOLER TO TRANSMISSION (37")
    HOSE, COOLER TO TRANSMISSION (37")
  • 29
    22-47629 ELBOW, HOSE TO OIL COOLER (90 )
    ELBOW, HOSE TO OIL COOLER (90 )
  • 30
    79476A1 FLANGE ASSEMBLY (1")
    FLANGE ASSEMBLY (1")
  • 30
    79476A2 FLANGE ASSEMBLY (1 1/8")
    FLANGE ASSEMBLY (1 1/8")
  • 30
    79476A3 FLANGE ASSEMBLY (1 1/4")
    FLANGE ASSEMBLY (1 1/4")
  • 30
    79476A4 FLANGE ASSEMBLY (1 3/8")
    FLANGE ASSEMBLY (1 3/8")
  • 30
    79476A5 FLANGE ASSEMBLY (1 1/2")
    FLANGE ASSEMBLY (1 1/2")
  • 30
    79476A7 FLANGE ASSEMBLY (1 3/4")
    FLANGE ASSEMBLY (1 3/4")
  • 30
    79476A7 FLANGE ASSEMBLY (2")
    FLANGE ASSEMBLY (2")
  • 31
    10-60171 SCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
    - SEE NOTE BELOW
    SCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
    - SEE NOTE BELOW
  • 31
    10-60171 SCREW, FLANGE TO PROPELLER SHAFT (1")
    - SEE NOTE BELOW
    SCREW, FLANGE TO PROPELLER SHAFT (1")
    - SEE NOTE BELOW
  • 31
    10-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4")
    - SEE NOTE BELOW
    SCREW, FLANGE TO PROPELLER SHAFT (3/4")
    - SEE NOTE BELOW
  • 32
    10-60106 SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")
    SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")
  • 33
    13-32993 LOCKWASHER, FLANGE SCREW
    LOCKWASHER, FLANGE SCREW
  • 34
    11-22024 NUT, FLANGE SCREW
    NUT, FLANGE SCREW
  • 35
    84-73125A1 HARNESS ASSEMBLY, NEUTRAL SAFETY SWITCH
    HARNESS ASSEMBLY, NEUTRAL SAFETY SWITCH
  • 36
    13-26996 LOCKWASHER, HARNESS ATTACHING
    LOCKWASHER, HARNESS ATTACHING
  • 37
    11-68219 NUT, HARNESS ATTACHING
    NUT, HARNESS ATTACHING
  • --
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • --
    10-74822 SCREW, CARBURETOR MOUNTING (3 1/2")
    SCREW, CARBURETOR MOUNTING (3 1/2")
  • --
    10-52743 SCREW, CARBURETOR MOUNTING (3 3/4")
    SCREW, CARBURETOR MOUNTING (3 3/4")
  • --
    16-8M0034451 STUD, CARBURETOR MOUNTING (1 3/8")
    STUD, CARBURETOR MOUNTING (1 3/8")
  • --
    77931 ROD, CHOKE
    ROD, CHOKE
